Stone CNC router machine with dual-spindles, fully automatic CNC equipment capable of carving on natural stone, marble, artificial stone, granite, sandstone, bluestone, terrazzo, glass, ceramic tile, wood, aluminium plate, copper plate and other materials, suitable for stone background wall, bridge engineering, garden engineering, tombstone engineering and other industries.

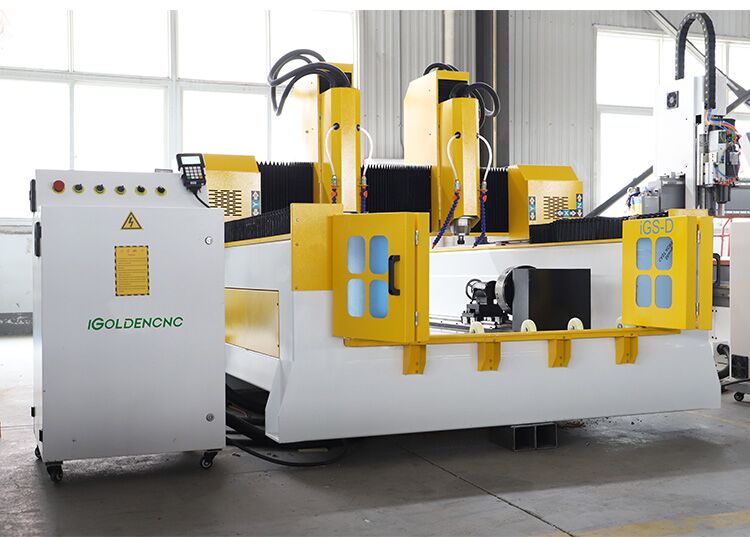

Double Heads Stone CNC Carving Machine
3d-cnc router/ machine stone granite engraving machine with dual-spindles, fully automatic CNC equipment capable of carving on natural stone, marble, artificial stone, granite, sandstone, bluestone, terrazzo, glass, ceramic tile, wood, aluminium plate, copper plate and other materials, suitable for stone background wall, bridge engineering, garden engineering, tombstone engineering and other industries.
The best cost-effective 2 head stone CNC machine, this stone CNC machine come standard with 2 pcs of 5.5kw high frequency water cooling spindle, so this granite engraving machine is more efficient than ordinary machines. The stone CNC router machine can perform 3D relief carving on most stones, as well as line carving, chamfering, drilling 2D carving and other processing methods. If you are interested in this 2 heads granite router machine, please contact us and we will provide you with The latest price.
Stone Monument CNC Engraving Machine Parameters:
2pcs 5.5KW High Frequency Water Cooling Spindle
The CNC granite engraving machine have 2 heads so the doubule heads all comes standard with 5.5kw high-frequency water cooling spindle and you can also select 7.5KW spindle. This high-quality precision spindle requires no maintenance, so it can work for a long time and it does not produce noise.

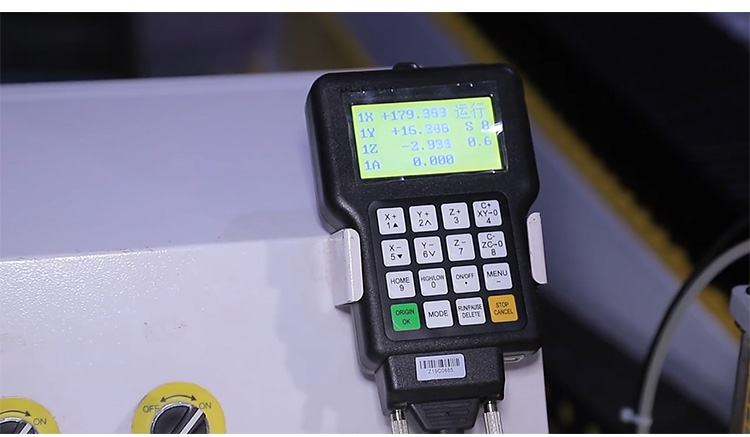

DSP Hand Controller
This is Rich Auto DSP A11 hand-held Controller.it supports offline operation and easy to use. Compared with the Mach 3 Controller, it is no need to connect with a PC during the machine working.And It is easily operate and learned, especially for the freshman. It has many advantages such as 16-button handheld operation, easy to train and operate,8 pairs of I/O ports can be customized,Support G code, PLT, DXF format files generated by various CAD/CAM software,Support remote maintenance and system upgrade,Multilingual display, can be switched freely and many other functions.
Heavy Duty Gantry
The gantry of Stone CNC machine is constructed of tubular steel, and reinforcement ribs are welded to each column of the gantry. In this way, Our CNC granite router machine not only can ensure the stability of the gantry, but also can load a variety of driver components, such as belts, and wiring harnesses, motors, bearings, etc.
Monument Engraving Equipment Features:
1. Machine bed is welded tubular steel structure, less vibration while fast speed running.
2. Adopt Stainless Steel Water tank in case of turning rusty after long time water touch.
3. Installed with water spraying nozzle to cycle water for cooling bits .the cycled water will flow into storage tank and be cycled.
4. Powerful water-cooling constant torque spindles, durable usage .
5. Import linear square HIWIN rails on XYZ .
6. Two spindles greatly improving production efficiency.
Stone Engraving Machine Application
INDUSTRIES
Stone engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, cutting, drilling. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy and other materials. If you have the above materials need to process, stone engraving machine is definitely your best choice.
MATERIAL Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA Soft metal: aluminum, brass, copper, mild steel Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
