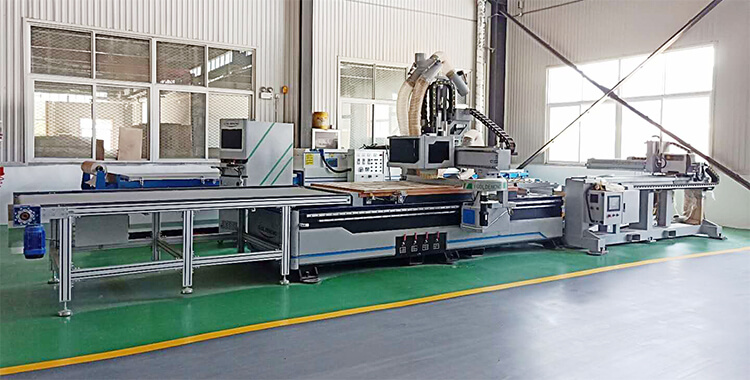

Full Automatic Furniture Making Flatbed CNC Router

A full automatic flatbed CNC router for furniture making is a versatile and highly efficient machine used in the woodworking and furniture manufacturing industry. This type of CNC router is designed to automate the cutting, carving, and shaping of various materials, such as wood, MDF, plywood, and other sheet materials, to create components for furniture production.

This type of nesting CNC router is your best choice for furniture production. With the automatic tool change function and automatic loading and unloading functions, the production efficiency is greatly improved.Full automatic flatbed CNC router machine is widely used in modern furniture making including customized panel furniture, cabinet making, home decoration, home door, home furniture, shop and office furniture with automatic labeling, feeding, carving, cutting, drilling, grooving, and discharge.

Features Of Automatic Feeding CNC Machine With Panel Furniture Production Line:

1. Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.

2. Humanizing design of the machine control interface,very simple to operate, requiring only minimal training of operator, do not need specialized operation technical personnel, high efficiency.

3. World‘s first class components – Italian high-frequency electro spindle, Taiwan SYNTEC control system, German servo motors and drivers, high precision planetary gear reducers, stable performance and long service life.

4. The world leading vacuum table, high adsorption capacity, can be strong adsorption of materials of different sizes, density, no deformation.

5. Truly versatile-nesting, routing, vertical drilling, carving, side milling and edge grinding all in one. It is well-suited for panel furniture, office furniture, cabinets production.

Applications Of Full Automatic Flatbed CNC Router For Furniture Making:

1. Furniture Industries

Cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, tables and chairs.

2. Decoration Industries

Screens, wave boards, large-size wall hangings, advertising boards and sign making.

3. Arts & Crafts Industries

Achieveing effects of exquisite patterns and characters on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on.

4. Processing Material

Carving, milling and cutting for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.

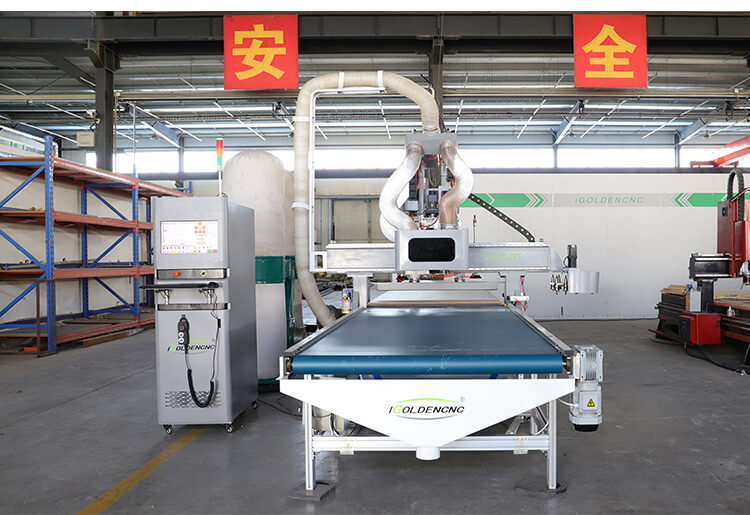

Automatic Loading&Unloading System Of CNC Router For Furniture Making

The most notable feature of this CNC Woodworking machine is its automatic loading and unloading system. This system has a conveyor platform and a rear scissor lift which supports and raises the stack of material to the machine’s vacuum bed height, which is monitored with optical eye-sensing stack material height and machine bed surface. Through this system, you can not only reduce the employment cost of workers but also improve your work efficiency.

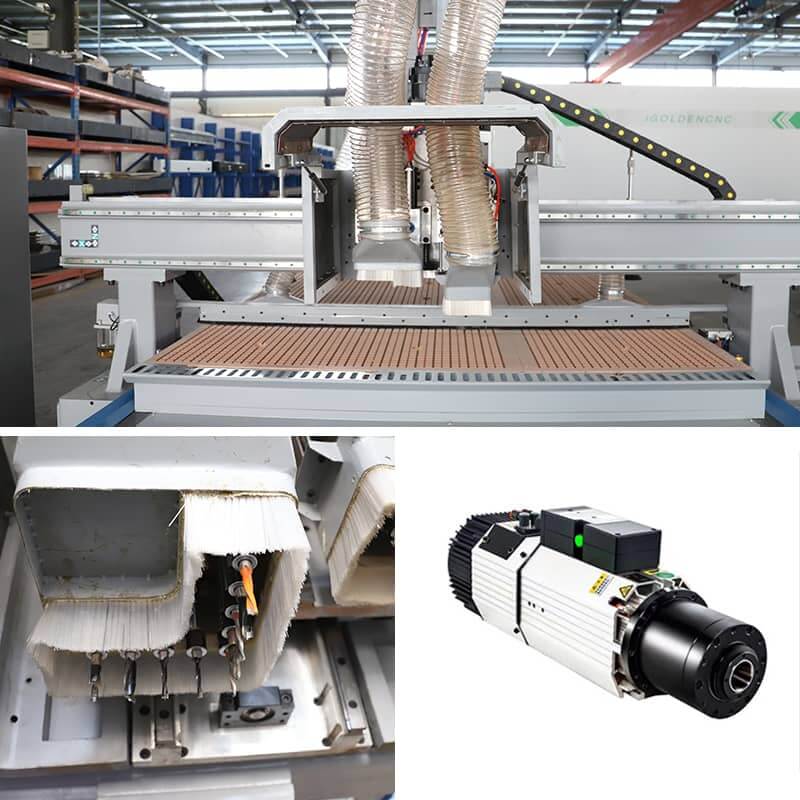

9KW Spindle And Servo Motor Of CNC Woodworking Machine

This CNC CNC Router For Furniture Making is equipped with a 9kw high frequency automatic tool changer spindle.This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum In terms of hood. Power, we chose Japan Yaskawa Servo Motor and Drivers, which has high precision, stable operation and less maintenance. So the machine can process CNC Plywood, wood and other materials.

Vacuum Adsorption Function Of CNC Router For Furniture Making

This CNC word cutting machine has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported. This table has multiple working areas, so you can Perform sub-regional cutting. At the same time, the machine also has CNC Suction Cup Load System, which can easily load a sheet on to the bed surface, so as to keep the material in the best position during processing.

What Is Panel Furniture Production Line?

Panel furniture production line refers to the machine tools and software used in the entire panel furniture manufacturing process including automatic labeling row drilling and cutting center, customized cabinet and wardrobe smart hole machine, CNC six-sided drilling, CNC panel saw, cabinet intelligent connection, cabinet and wardrobe molded door line, multiple six-sided drilling and cutting machine connections, production process planning and design, solid wood assembly machining center.

The CNC Nesting Machine is a kind of panel furniture production line. It is a smart CNC solution for customized furniture production for panel furniture making, wardrobe making, cabinet door making, cabinet body making, closet door making, home door making, home decoration, cabinets making, home furniture making, sofa making, bed making, desk making, shop, and office furniture making.
In the furniture production process, the Intelligent CNC nesting machines can realize the totally automatically working, including automatic paste barcode, wood board automatic feeding, hole drilling, slotting, board cutting, automatic uploading, automatic retrieval processes for cutting the side hole, slot on the back, back hole drilling, the whole furniture production process don’t need human judgment, and the nesting CNC machine can process automatically, getting rid of the dependence of woodworking professional and technical workers. Besides, using the automatic feeding CNC nesting machine instead of the traditional table cutting saw or precision cutting saw, to prevent the occurrence of work-related injuries, the health of employees is guaranteed.

Working Principle

The working path is automatically generated by the software. Through the intelligent design software to split single 3D modeling, it can realize the real effect of map rendering. Customized furniture shape and size at a glance. After the automatic assembly generated a single panel report and hardware statements, and outputs all sheet drawing format (DXF format drawings belonging to a common format, it can be open in all the software), each piece of plate holes, slots are automatically generated. Through the optimization by the automatic layout software to optimize the layout and generate the processing path (NC program), to maximize use of raw materials.
