CNC Plasma Cutting Machine
CNC plasma cutters are automatic computer numerical controlled metal cutting machines that use plasma torch to cut metals into different profiles and shapes with CNC controller, including mild steel, stainless steel, carbon steel, galvanized steel, hot rolled steel, cold rolled steel, iron, brass, copper, alloy, aluminum, bronze, and titanium.
CNC Plasma Cutting Machine Video

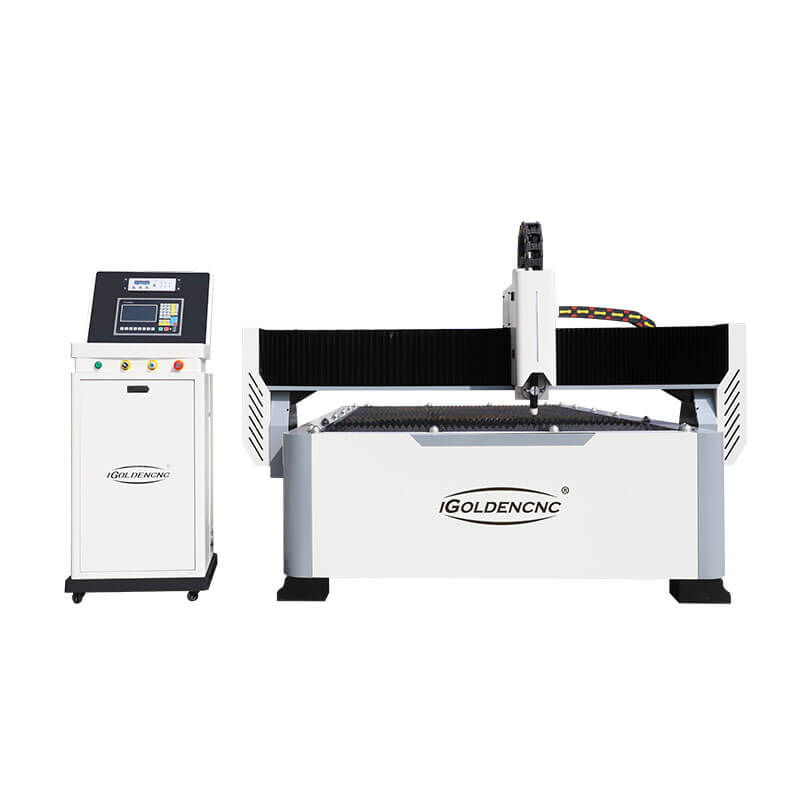

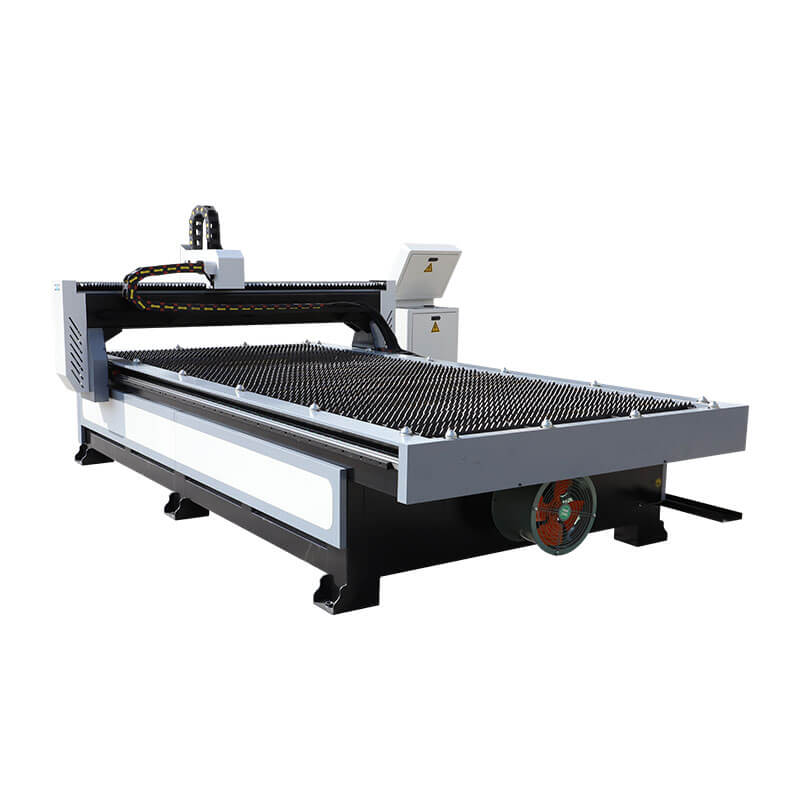

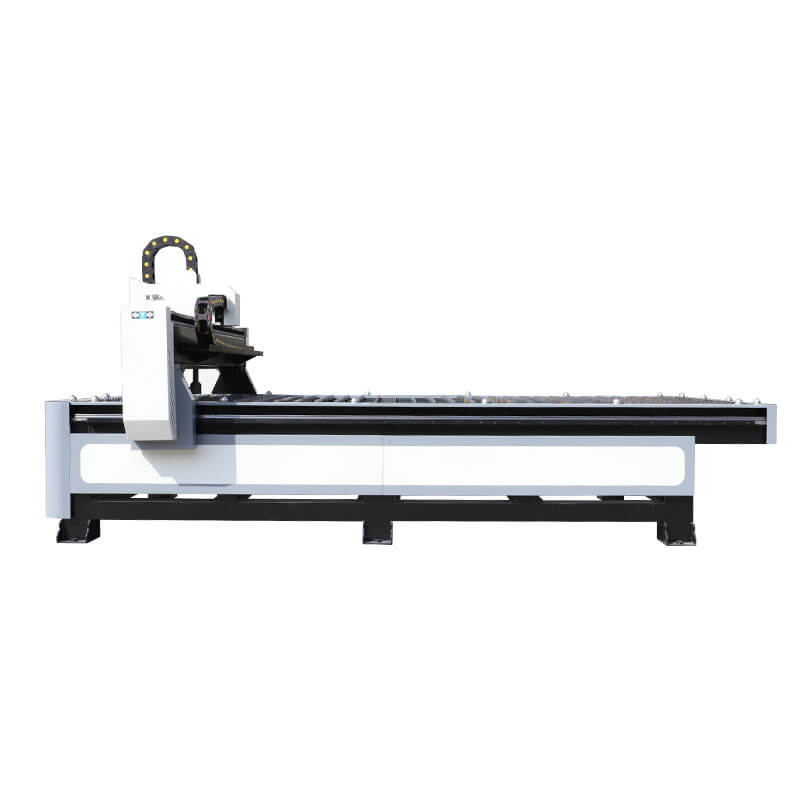

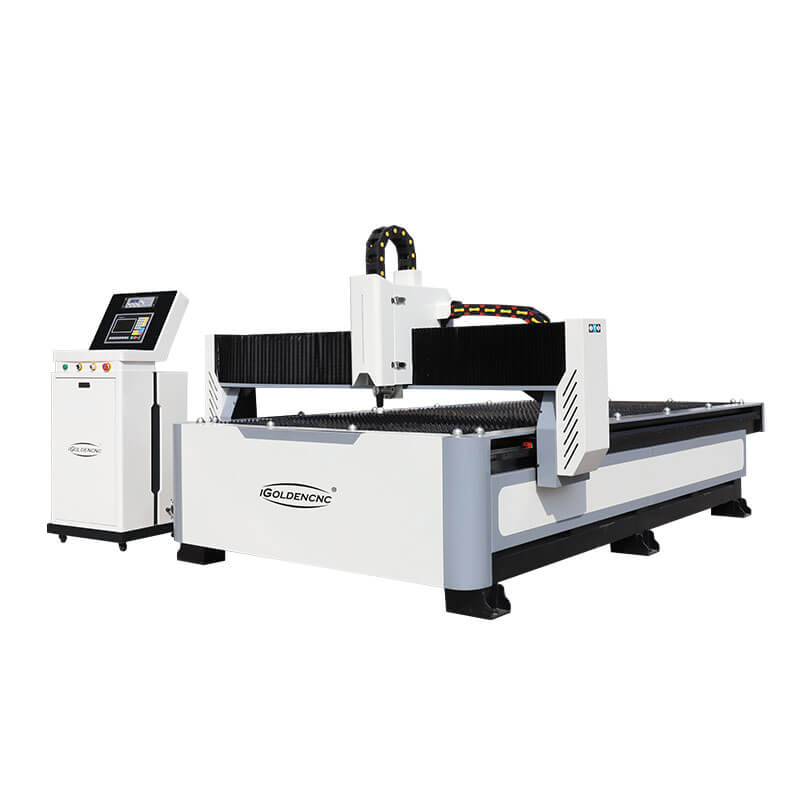

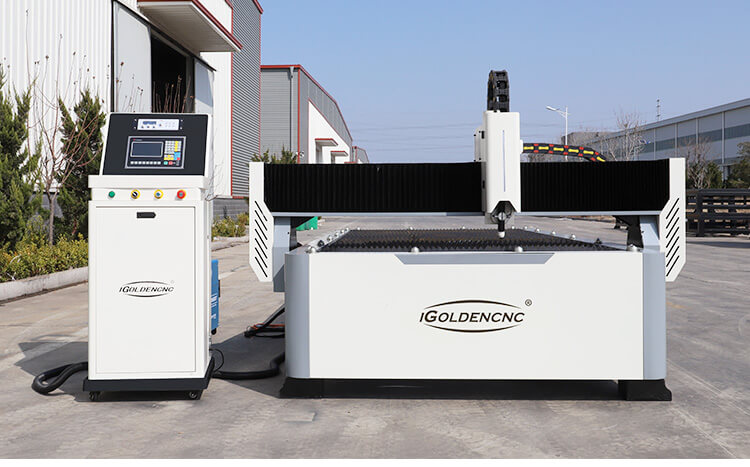

Model:iGP-3A
CNC plasma table is a type of plasma CNC cutter with custom welding table top, which can be well adapt to cut metal projects with different sizes.

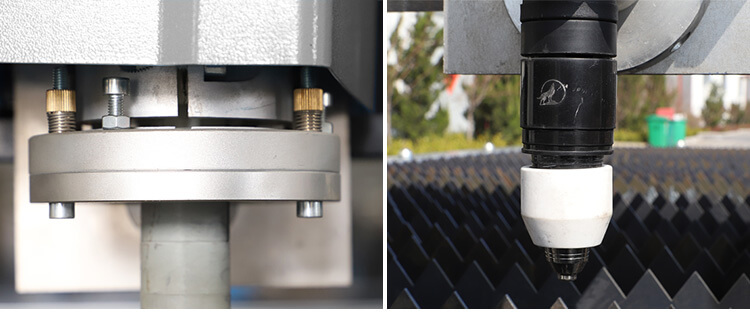

Cutting head with anti-collision function
Control the height of the cutting torch during the cutting process by detecting changes in the arc voltage.
Ensure cutting quality and work efficiency.
Sawtooth Worktable +Loading roller
Improve the loading and unloading speed

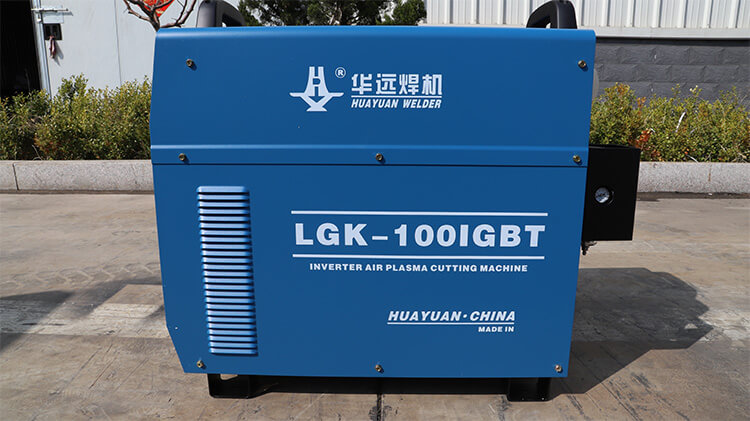

HUAYUAN Plasma Power
It adopts China’s well-known industrial brand Huayuan industrial plasma power supply.
Precise cutting, no burrs, and small bevel.
Energy-saving, low consumption, more stable performance.

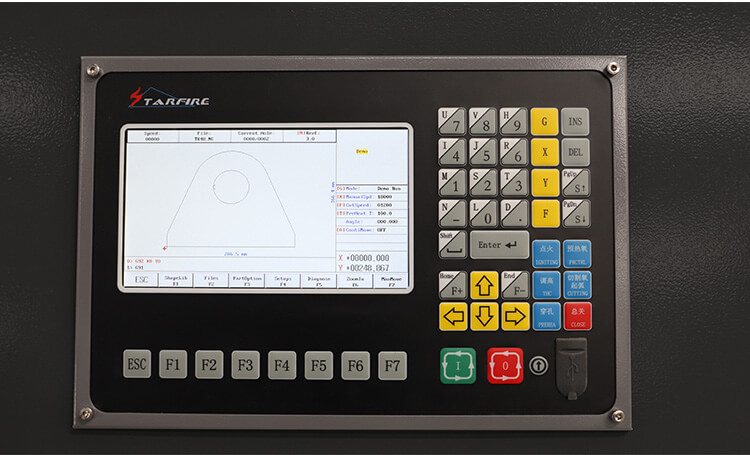

STARFIRE with THC Control System
High definition CNC pasma cutter for sheet metal uses STARFIRE control system with FastCAM software for auto material saving function, large capacity storing function, convenient to read and process.
Tube welding bed
More stable and effectively improves the rigidity and precision of the equipment.Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
Scrap push-pull box for easy cleaning

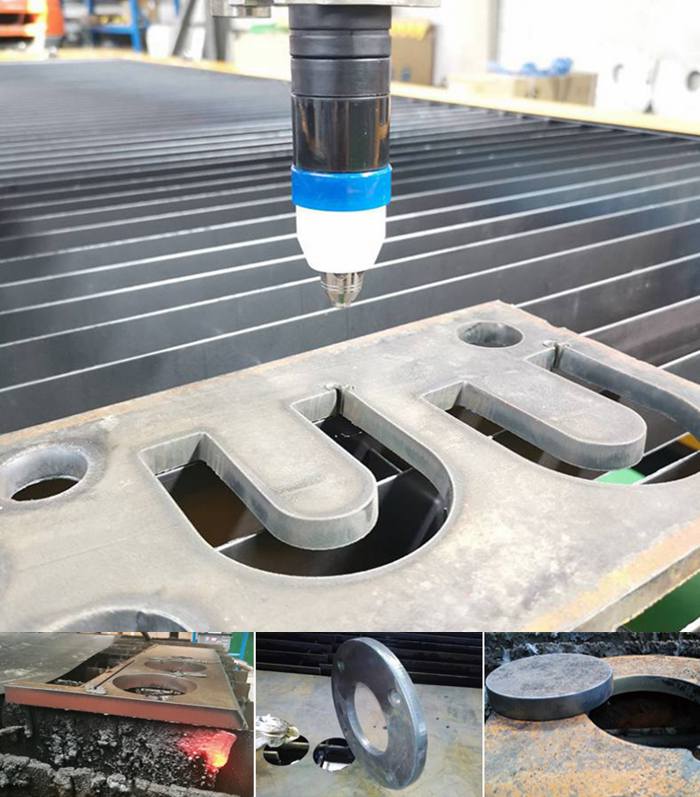

CNC Plasma Tables Application
Plasma CNC cutters are used for cutting sheet metals, square and round metal tubes, including iron, cold rolled steel, hot rolled steel, stainless steel, galvanized steel, carbon steel, copper, brass, alloy, bronze, aluminum, titanium. Plasma machines are widely used in the industries of machine tool manufacturing, petro-chemical equipment, light-industrial machinery, pressure vessel, shipbuilding, mining machinery, electric power, bridge construction, aerospace, steel structure, etc.
CNC Plasma Tables Parameter
Technical Data
| Model | iGP-3A |
| Working area | 1300*2500mm |
| Machine body | Thickened Square Tube Welding Body |
| Worktable | Sawtooth |
| Reducer | Japan SHIMPO |
| Control System | STARFIRE with THC |
| Plasma Power | HUAYUAN |
| Lubrication | Automatic |
| Transmission | X,Y-helical rack pinion, Z ball screw |
| Guide rail | Taiwan Hiwin guide rail |
| Drive system | Japan servo motor and drivers |
| Power | 63A/ 100A/120A/160A/200A |
| Cutting Torch Path | ≤200mm |
| Positioning Accuracy | 0.2mm |
| X, Y Axis Resolution | 0.1mm |
| Working Voltage | 380V/50Hz |
It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.
