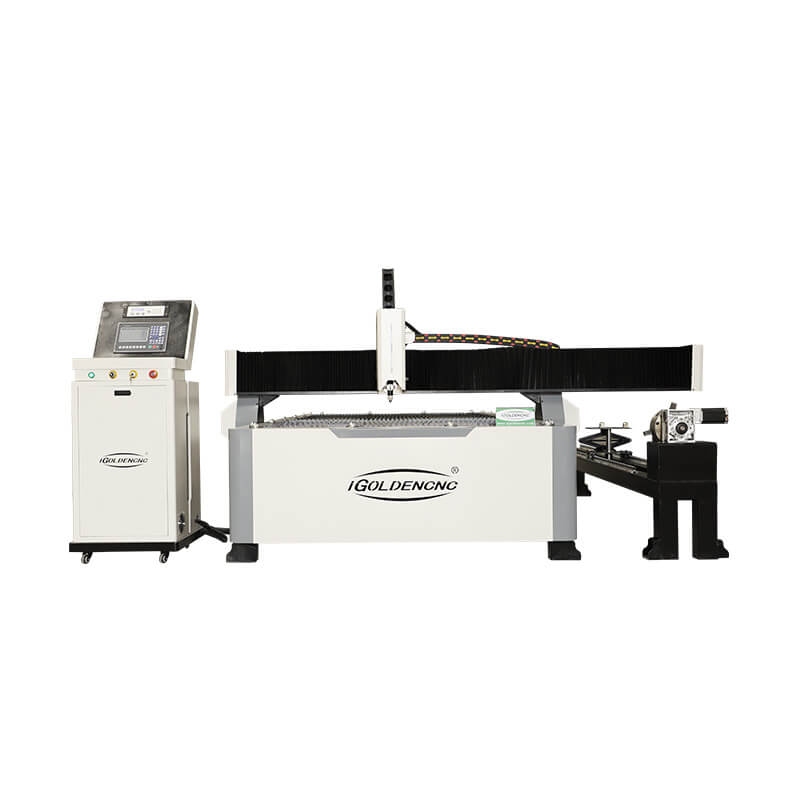

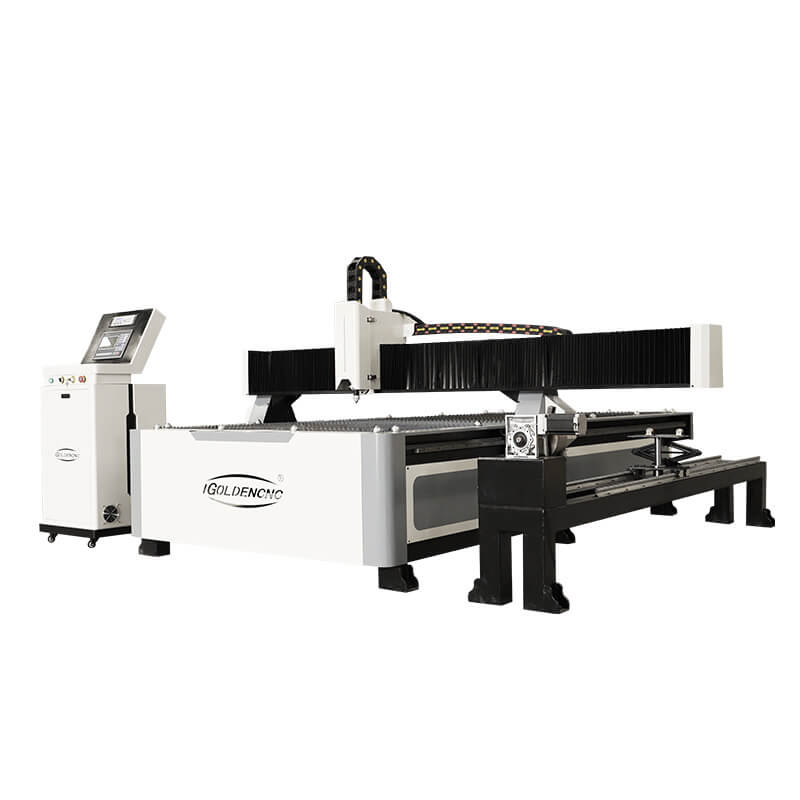

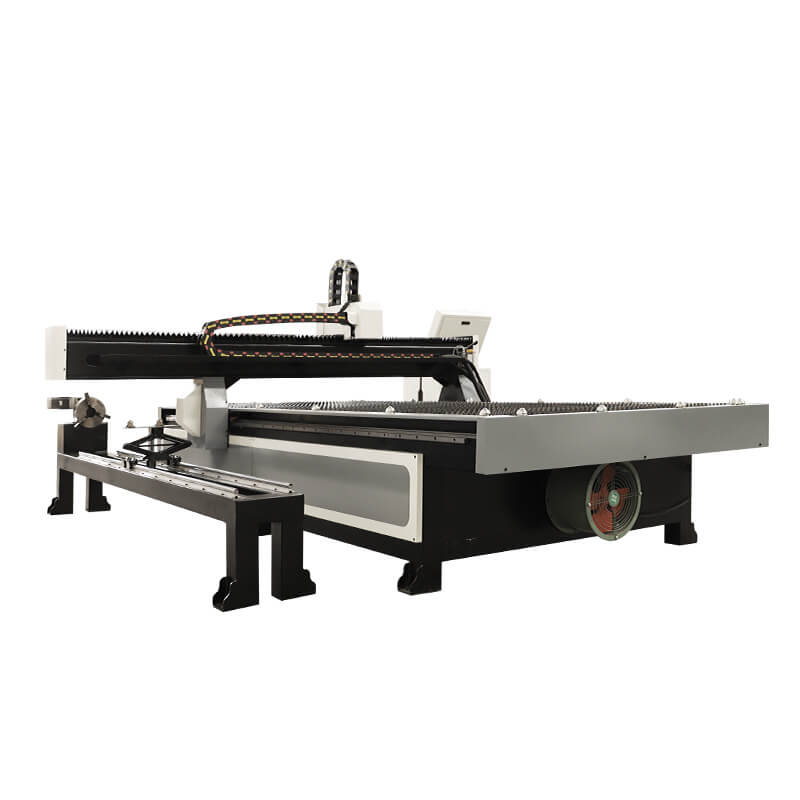

CNC Tube And Sheet Plasma Cutting Machine
The CNC plasma cutter machine can not only meet 80% of the needs of large-scale flat cutting, but also 20% of the needs of tube cutting. It is equipped with an advanced tube-sheet dual-use CNC cutting system and a tube-sheet dual-use CNC cutting system.
The software realizes the efficient and convenient interchange of cutting methods while cutting the tube and sheet material, which can not only meet the needs of users for cutting round and square tubes but also meet the special-shaped processing of steel plates.
CNC Plasma Cutting Machine Video

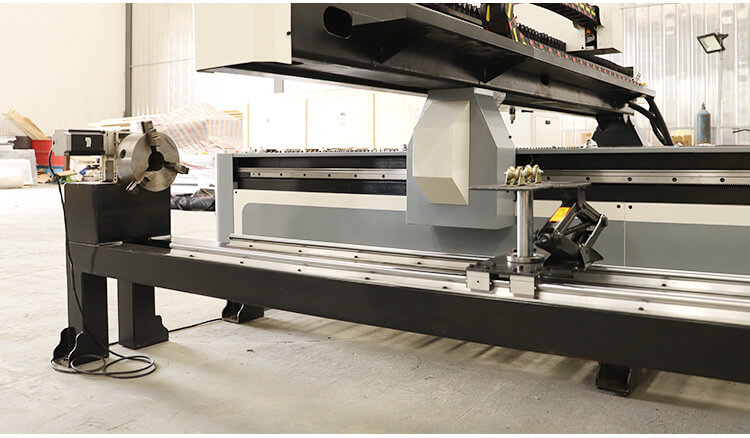

Side rotation axis
Independent side-mounted fixed chuck rotating shaft, three-jaw pneumatic chuck, the minimum clamping diameter is 20mm, and the maximum clamping diameter is 200/300/400/500/800mm optional.Complete steel pipe processing tasks, one machine with dual-use, speed up cost recovery.
Plasma head
Control the height of the cutting torch during the cutting process by detecting changes in the arc voltage.
Ensure cutting quality and work efficiency.
Sawtooth Worktable +Loading roller
Improve the loading and unloading speed
Advanced Plasma Power Supply
It adopts China’s well-known industrial brand Huayuan industrial plasma power supply.
Precise cutting, no burrs, and small bevel.
Energy-saving, low consumption, more stable performance.
STARFIRE with THC Control System
It is equipped with an advanced tube-sheet dual-use CNC cutting system and a tube-sheet dual-use CNC cutting system.
Tube welding bed
More stable and effectively improves the rigidity and precision of the equipment.Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
Scrap push-pull box for easy cleaning
CNC Plasma Tables Application

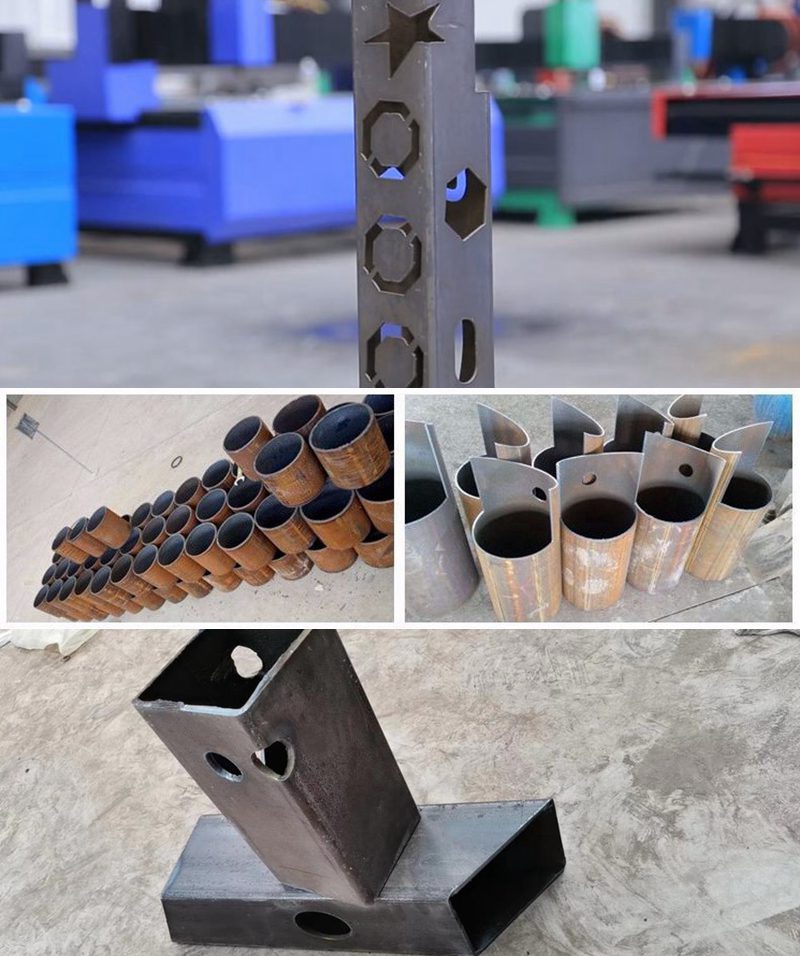

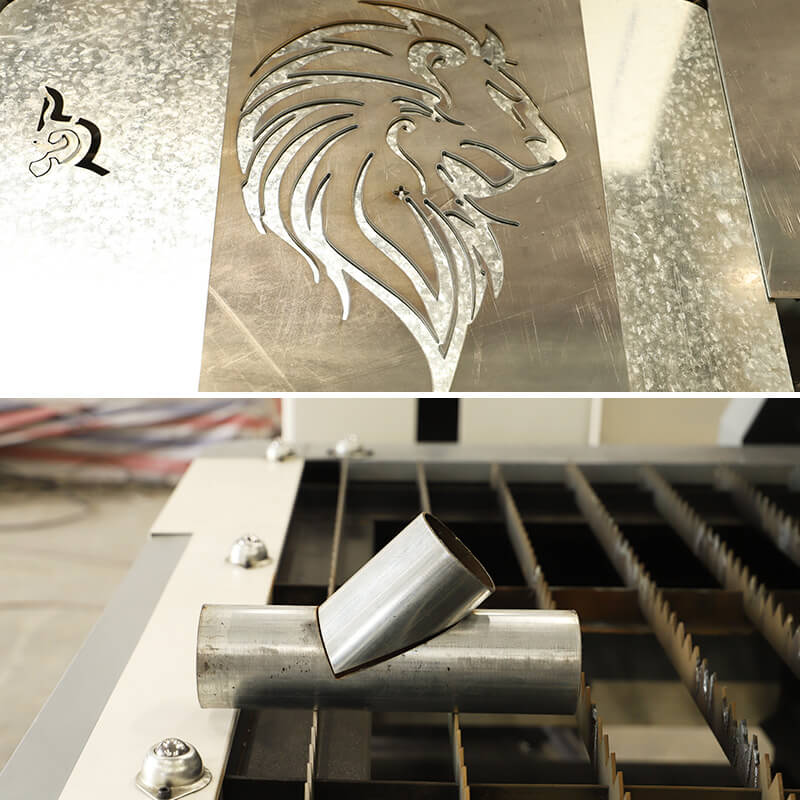

Plasma CNC cutters are used for cutting sheet metals, square and round metal tubes, including iron, cold rolled steel, hot rolled steel, stainless steel, galvanized steel, carbon steel, copper, brass, alloy, bronze, aluminum, titanium. Plasma machines are widely used in the industries of machine tool manufacturing, petro-chemical equipment, light-industrial machinery, pressure vessel, shipbuilding, mining machinery, electric power, bridge construction, aerospace, steel structure, etc.
CNC Plasma Tables Parameter
Technical Data
| Model | iGP-4A |
| Working area | 1500x3000mm |
| Torch height controller | with |
| Working table | Saw tooth table |
| Plasma power supply | Huayuan LGK120/160/200A, Hypertherm for optional |
| Cooling system | Air cooling |
| Control system | Starfire control system |
| Flies transfer | USB interface |
| transmission | X,Y-helical rack pinion, Z ball screw |
| Guide rail | Taiwan Hiwin guide rail |
| Drive system | Stepper motor and drivers |
| Arc | Untouched Arc Striking |
| Traveling speed | 0-40000mm/min |
| Working speed | According to the cutting thickness |
| Working voltage | Single phase 220V and 3 phase 380V/50HZ |
| Software | Fastcam |
| Rotary axis | With |
It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.
