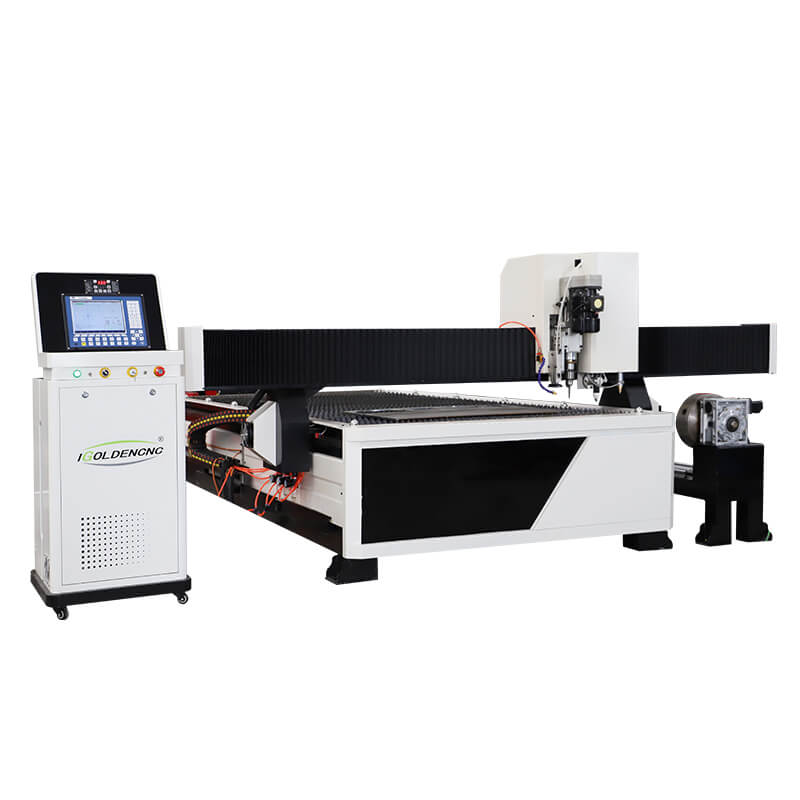

CNC Plasma Cutter With Marking and Drilling Heads

The IGP-1530 is a multi-functional plasma machine that has the ability to drill and mark in addition to the normal cutting functions. The machine comes with a rotary axis to cut round and square tubes.The CNC plasma cutter machine can not only meet 80% of the needs of large-scale flat cutting, but also 20% of the needs of tube cutting. It is equipped with an advanced tube-sheet dual-use CNC cutting system and a tube-sheet dual-use CNC cutting system.

CNC Plasma Cutting Machine Video

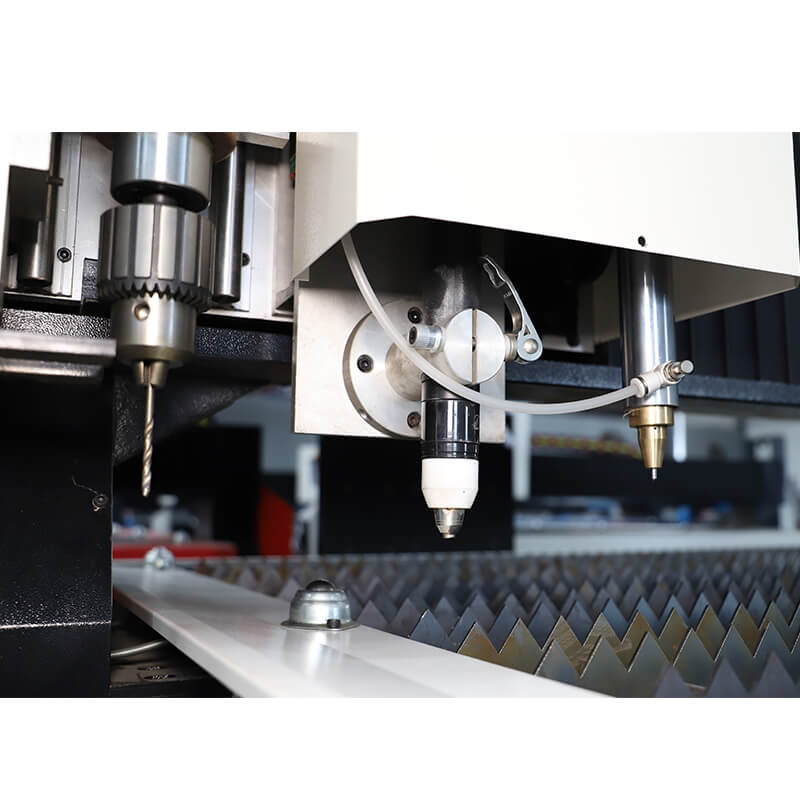

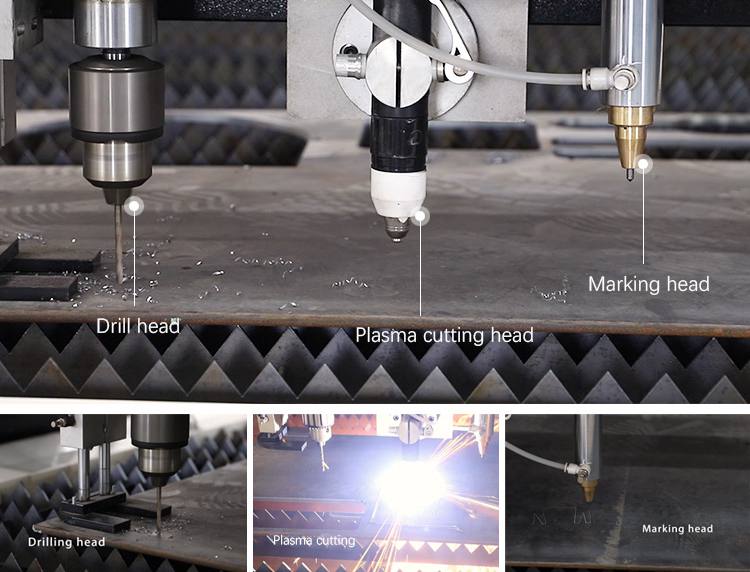

Multi-function Plasma machine

cnc plasma cutting machine is a multi function machine, which include the drilling, marking, cutting, and rotary device cutting.

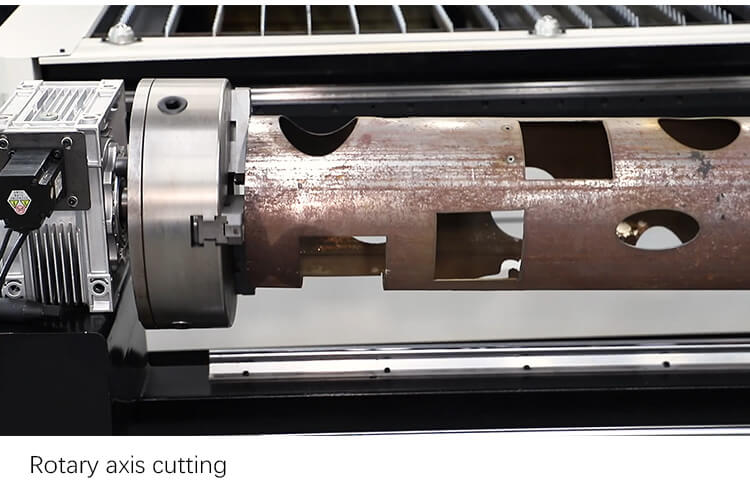

Rotary axis cutting

Complete steel pipe processing tasks, one machine with dual-use, speed up cost recovery.

Sawtooth Worktable +Loading roller

Improve the loading and unloading speed

Advanced Plasma Power Supply

It adopts China’s well-known industrial brand Huayuan industrial plasma power supply.
Precise cutting, no burrs, and small bevel.
Energy-saving, low consumption, more stable performance.

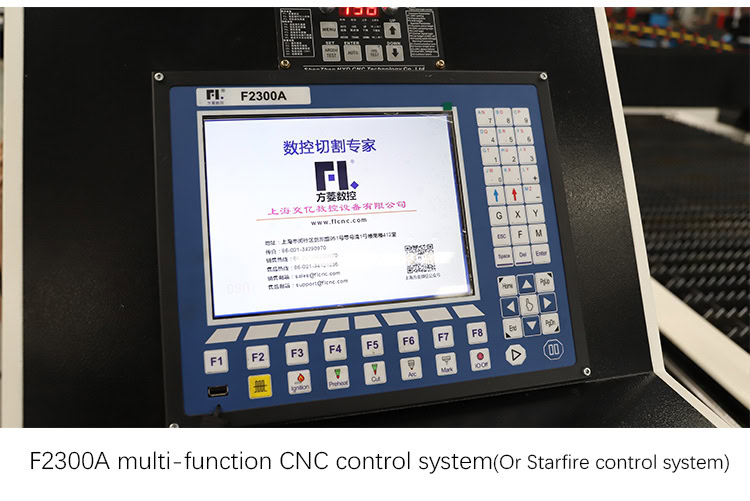

F2300A multi-function CNC control system(Or Starfire control system)

It is equipped with an advanced tube-sheet dual-use CNC cutting system and a tube-sheet dual-use CNC cutting system.

Saw tooth working table

Scrap push-pull box for easy cleaning

CNC Plasma Tables Application

Plasma CNC cutters are used for cutting sheet metals, square and round metal tubes, including iron, cold rolled steel, hot rolled steel, stainless steel, galvanized steel, carbon steel, copper, brass, alloy, bronze, aluminum, titanium. Plasma machines are widely used in the industries of machine tool manufacturing, petro-chemical equipment, light-industrial machinery, pressure vessel, shipbuilding, mining machinery, electric power, bridge construction, aerospace, steel structure, etc.

Marking depth adjustable functions to draw lines, the greater the pressure,the depper draw lines.

CNC Plasma Tables Parameter

Technical Data

Model	IGP-1530 Muti-function Plasma machine
Working area	1500x3000mm
Drilling head	With
Marking head	With
Torch height controller	with
Rotary axis	Option 100/150/200/250/300/400mm…
Working table	Saw tooth table
Plasma power supply	Huayuan LGK63A/120A/160A/200A Hypertherm optional
Cooling system	Air/ Water cooling
Control system	Starfire control system/FangLing system
Flies transfer	USB interface
Transmission	X,Y-helical rack pinion, Z ball screw
Guide rail	Taiwan Hiwin guide rail
Drive system	Stepper motor and drivers Optional Japan AC servo motor
Arc	Untouched Arc Striking
Traveling speed	0-40000mm/min
Working speed	According to the cutting thickness
Working voltage	3 phase 380V/50HZ
Software	Fastcam

It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.
