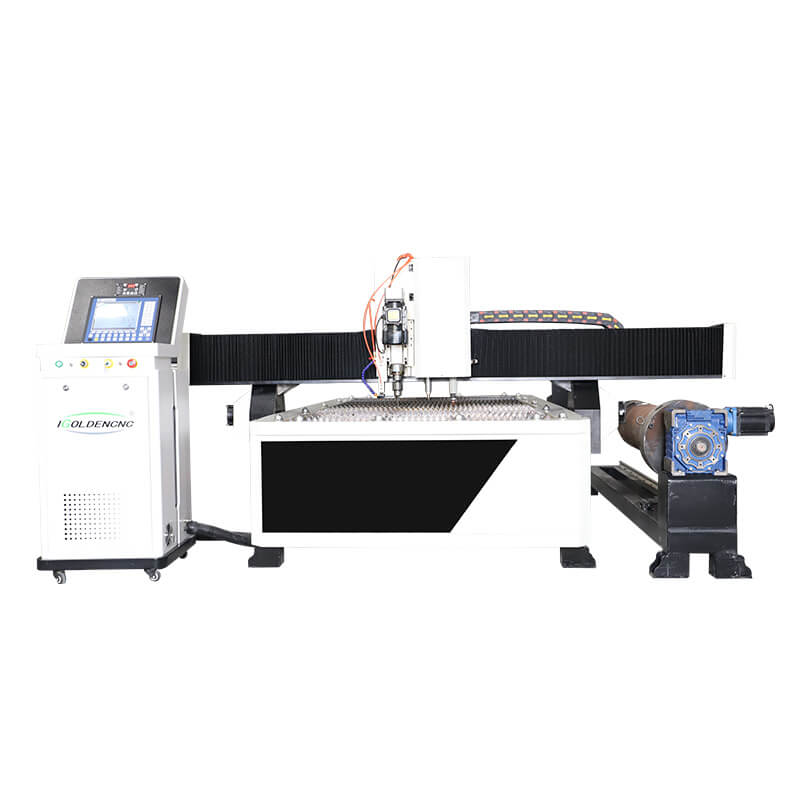

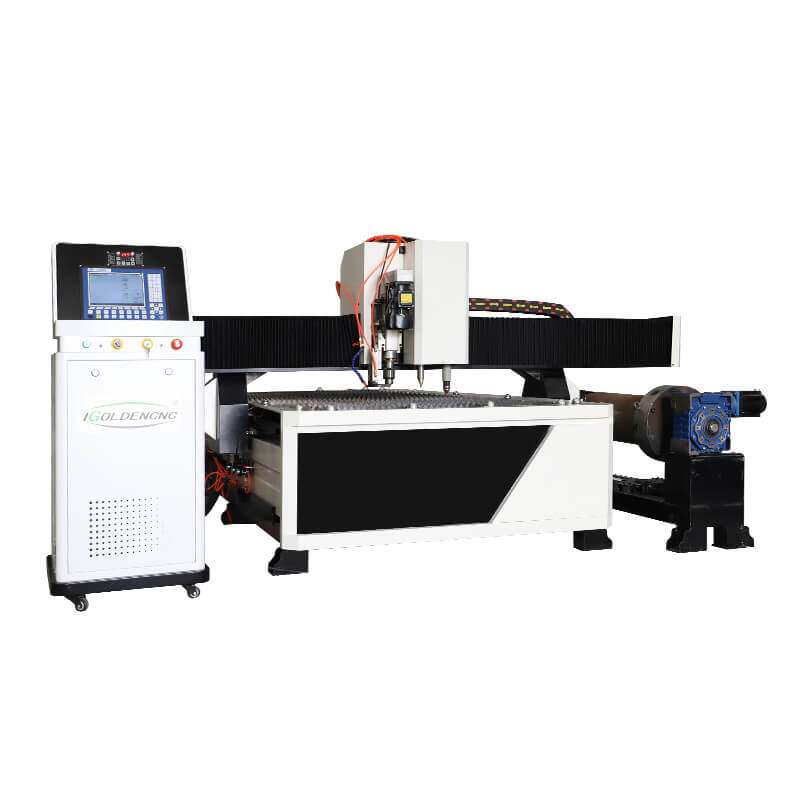

CNC table plasma cutting and marking machine
CNC table plasma cutting machine is an multi-purpose machine. It is very easy to deal with multi-processing needs! CNC plasma cutting machine can marking metal and oxy-fuel cutting!
CNC marking machine is able to achieve high quality CNC marking function for hard materials to draw lines marking. Compare with the laser,the cost,marking format,process control,and marking depth of IGP-1325 CNC table plasma cutting machine has a distinct advantage.Marking depth adjustable functions to draw lines, the greater the pressure,the depper draw lines.
CNC Plasma Cutting Machine Video
Multi-function Plasma machine
cnc plasma cutting machine is a multi function machine, which include the drilling, marking, cutting, and rotary device cutting.

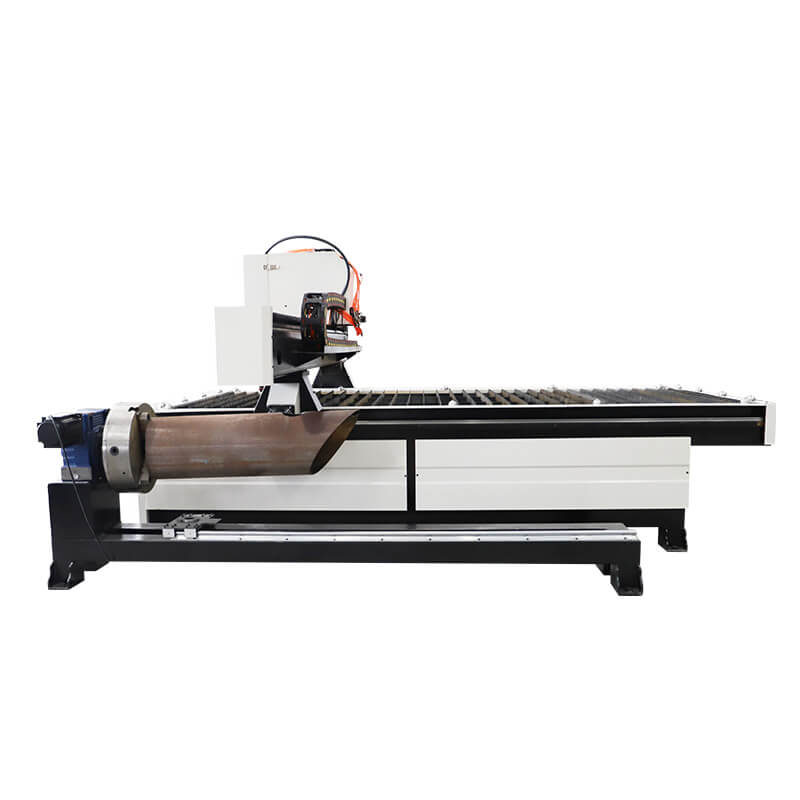

Rotary axis cutting
Complete steel pipe processing tasks, one machine with dual-use, speed up cost recovery. cutting round and square tubes but also meet the special-shaped processing of steel plates.
Sawtooth Worktable +Loading roller
Improve the loading and unloading speed
Advanced Plasma Power Supply
It adopts China’s well-known industrial brand Huayuan industrial plasma power supply.
Precise cutting, no burrs, and small bevel.
Energy-saving, low consumption, more stable performance.
F2300A multi-function CNC control system(Or Starfire control system)
It is equipped with an advanced tube-sheet dual-use CNC cutting system and a tube-sheet dual-use CNC cutting system.
Scrap push-pull box for easy cleaning
CNC Plasma Tables Application
CNC Plasma Cutter machine is a CNC machine with a table, it cuts metals by plasma torch sometimes with the help of oxygen gas, mainly cuts steel, stainless steel, iron and some non ferrous metals like aluminum, brass, copper, titanium, galvanized sheet and other.
Marking depth adjustable functions to draw lines, the greater the pressure,the depper draw lines.
CNC Plasma Tables Parameter
Technical Data
| Model | IGP-1325 |
| Working area | 1300x2500mm |
| Torch height controller | with |
| Working table | Saw tooth table |
| Plasma power supply | Hypertherm 125A |
| Cooling system | Air cooling |
| Control system | F2300A control system |
| Flies transfer | USB interface |
| Transmission | X,Y-helical rack pinion, Z ball screw |
| Guide rail | Taiwan Hiwin guide rail |
| Drive system | Japan servo motor and drivers |
| Arc | Untouched Arc Striking |
| Traveling speed | 0-40000mm/min |
| Working speed | According to the cutting thickness |
| Working voltage | Single phase 220V and 3 phase 380V/50HZ |
| Software | Fastcam |
| Rotary axis | With |
| Drilling head | With |
| Marking head | With |
It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.
