Automatic Cabinet Panel CNC Wood Side Drilling Machine

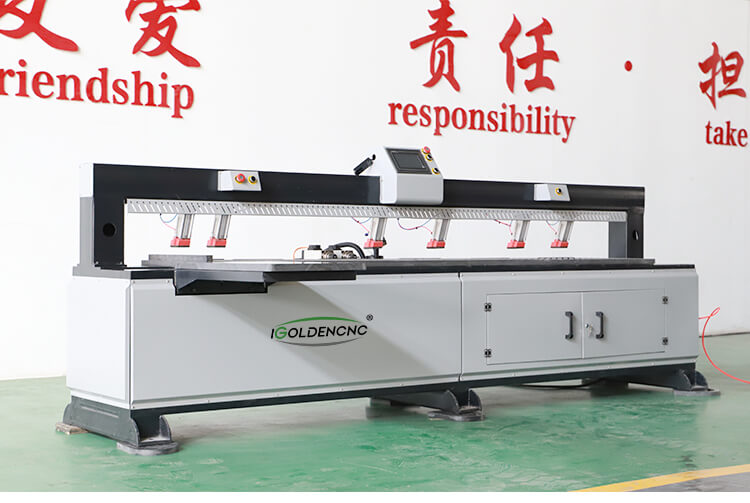

Infrared laser side hole CNC drilling machine is an economical and practical horizontal hole drilling equipment for panel furniture. It is an automatic production equipment that uses laser head induction to solve the side hole punching and slotting of fixed plates. This side hole punching machine is a fully automatic side hole punching equipment developed for the side holes of triple pieces of panel furniture. PLC integrated control is stable and efficient.

CNC Drilling Machine for Wood

The double-spindle side hole machine supports the invisible part process, and can scan the code for drilling and laser positioning and drilling.A CNC wood side drilling machine is a computer numerical control (CNC) machine specifically designed for drilling holes on the side or edge of wooden workpieces. It automates the drilling process, offering precision, efficiency, and repeatability.

The machine is equipped with a US Banner laser probe, which can achieve 100% leak-free punching. High-power spindle, servo motor. XY adopts high-precision Taiwan rack, guide rail adopts Taiwan silver or PDF, adopts high-flexible shielded wire, and fully enclosed drag chain.

The bed is heavier, and the front end adopts a unique “L” shape design, which is suitable for processing long and short boards.

“L” design

The bed is heavier, and the front end is unique “L”-shaped design, aiming at the processing of long plates and short sides.

Dual-spindle design

Dual servo system, Y axis servo drive laser sensor scanning hole, Z axis servo drive tool drilling and grooving.there are multiple modes to choose from, improving processing efficiency。

BANNER laser probe

Adopting American Bonner laser probe, it has the features of high drilling accuracy 100% leak-free drilling.

Full cylinder operation

The compaction of the whole machine is full cylinder operation, which is easy to operate. Interval positioning piles are suitable for plates of various sizes.

Key points about CNC wood side drilling machines

1. CNC Technology: CNC side drilling machines are equipped with CNC technology, which allows for precise control of the drilling process. The machine’s movements and drilling operations are programmed and controlled through a computer interface.
2. Side Drilling Capability: These machines are designed to drill holes on the side or edge of wooden workpieces. The drill bits are positioned horizontally to create holes parallel to the workpiece’s surface. This capability is suitable for applications such as dowel insertion, furniture assembly, and joinery.
3. Versatility: CNC wood side drilling machines offer versatility in hole size, spacing, and positioning. They can be programmed to drill holes of various diameters and depths, and the spacing between holes can be easily adjusted. This flexibility allows for customization and adaptability to different woodworking projects.
4. Automation and Precision: CNC wood side drilling machines automate the drilling process, eliminating the need for manual drilling. The computer-controlled system ensures precise and accurate hole placement, resulting in consistent and high-quality results. This is particularly beneficial for projects that require multiple identical holes.
5. Efficiency and Productivity: CNC wood side drilling machines offer increased efficiency and productivity compared to manual drilling methods. They can drill multiple holes simultaneously or in rapid succession, reducing production time. Additionally, the automated process allows operators to focus on other tasks while the machine performs drilling operations.
6. Software and Programming: CNC wood side drilling machines are typically accompanied by software that enables users to program and control the drilling operations. The software provides a user-friendly interface for designing hole patterns, specifying drilling parameters, and simulating the machining process. Some machines may also support importing designs from popular CAD/CAM software.
7. Material Compatibility: CNC wood side drilling machines are designed to work with various types of wood, including solid wood, plywood, MDF (medium-density fiberboard), and particleboard. The machine parameters, such as drilling speed and feed rate, can be adjusted to match the specific characteristics of the wood being drilled.
8. Safety Features: CNC wood side drilling machines often incorporate safety features to protect the operator and the machine. These features may include emergency stop buttons, safety interlocks, and protective enclosures to prevent accidental contact with moving parts.
