CNC Wood Carving Machine

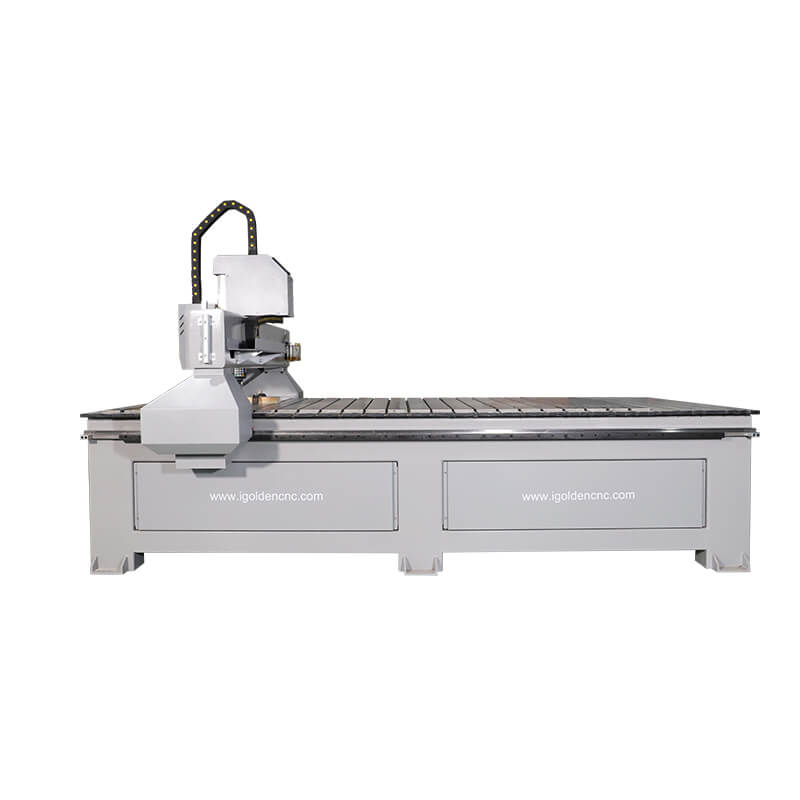

CNC Wood Carving Machine for sale, it is a basic 3 axis CNC wood Router for high-speed 2D/3D wood, MDF, furniture carving, door/cabinet making, etc. A large table and strong machine body makes it good at 2D/3D wood letters/crafts and carpentry of big and heavy. If you want to do some baisc woodworking, this type of CNC wood router is your better choice.

CNC Wood Router is also called CNC engraving machine in the CNC machine industry. It refers to the ability of the CNC machine to perform movement about three different axis like X, Y, Z axis simultaneously. This type of wood CNC machine is designed and typeset by special engraving software, and the design and typesetting information is automatically transferred to the controller by the computer, and the controller controls the engraving machine to generate the X, Y, and Z axis engraving paths to complete processing of the materials fixed on the working table, so as to realize the various processing requirements of users. With the features of low cost, simple operation and easy maintenance, this CNC wood router is considered an entry-level machine in the CNC machine industry and favored by users at home and abroad. The CNC wood router mainly performs some plane processing on the board. If you are just doing flat machining on some plates, this three-axis engraving machine is definitely your ideal choice.

CNC Wood Carving Machine Video

CNC Machining Center Parameter

Technical Data

Item	IGW-1325 CNC Router
Working area	13002500200mm
Spindle	4.5kw
Inverter	Fuling
Motor	Stepper/Servo
Motor driver	Stepper/Servo
Control system	NcStudio /DSP
Table	Aluminum/Vacuum table
Transmission	XY Axis Germany helical rack,Z axis Taiwan TBI ball screw
Guide rail	XYZ Axis Taiwan liner square guide rail
Ballscrew	Z Axis Taiwan TBI ball screw
Bed	Thick welded square tube
Voltage	3phase 380V/50HZ
Machine dimension	300019001700mm
Vacuum pump	Optional

We offer customized services according to your requests such as the working area and specifications.

Powerful 4.5KW HQD air cooling spindle

Imported bearings with good quality, long working life. Application: Milling,Engraving,Drilling. High speed, low noise. Higher precision.

1300*2500mm T slot working table

Whether it is big board, small board, irregular plate, can be fixed firmly.

Strong and durable transmission

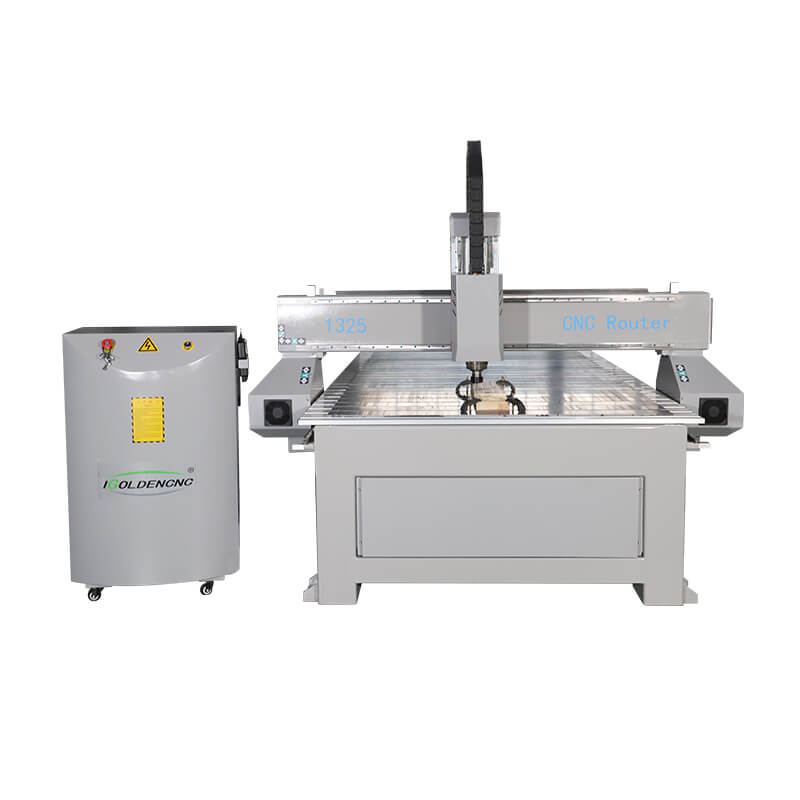

Independent control cabinet + DSP A11 control system

Woodworking CNC Router Application:

1, Wooden doors and furniture industries: wood and composite doors, cabinet doors, a large area of flat plate engraving, wood engraving and milling carved, carved furniture, antique mahogany furniture, sculpture, wood carving art of murals and other industries;

2, Wooden handicraft processing: watch box, craft photo frames, calligraphy plaque, counter tops appliances, sporting goods equipment, engraving and milling a thin aluminum sculpture;

3, Electronics industry: circuit boards, insulation materials, LED display, home appliances (TV, washing machine, refrigerator) or model shell carving engraving and milling;

4, Music production industry: musical instruments carved three-dimensional surface, shape cutting, such as large or small violin and piano panel head, guitar, ecru and other three-dimensional surface engraving and milling;

5, EVA processing industry: EVA materials, packaging tools equipment, medical equipment, electronic products, glassware, etc. lined with carved engraving and milling.

6, Other industries: building model, wood model, aviation wood model, propeller, auto foam mold.
