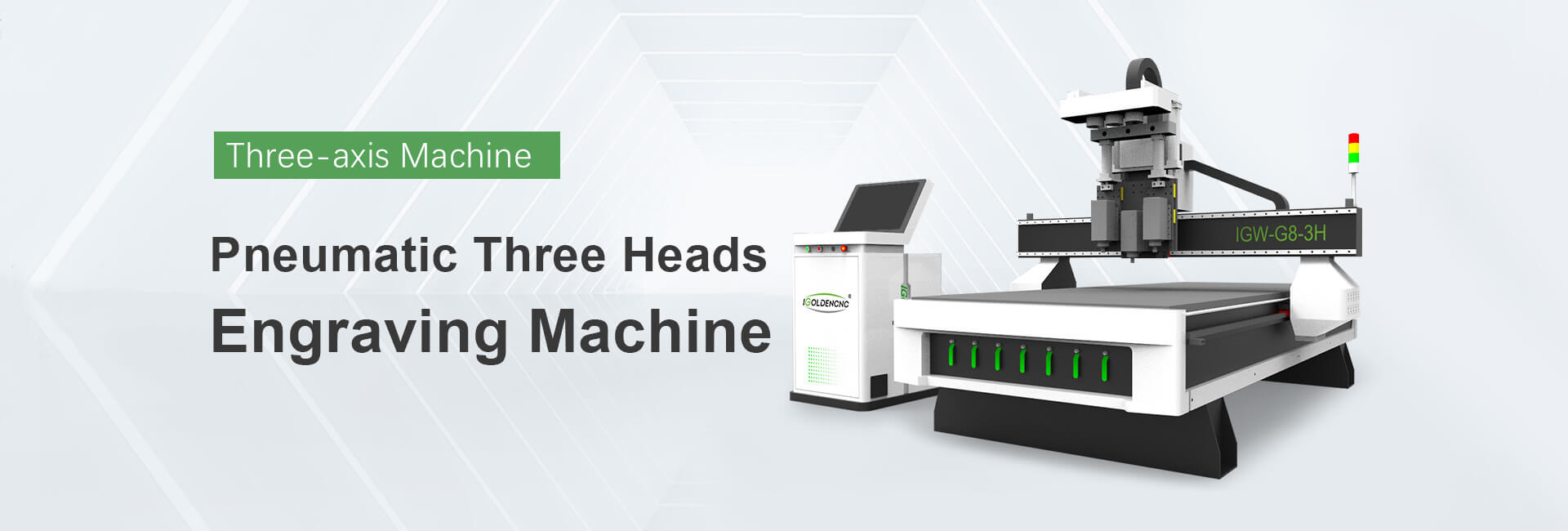

Pneumatic 3 Head Engraving Machine
Wood CNC Machine iGC-LT Video
6KW air-cooled HQD spindle
LNC Control System
Taiwan HINWIN rail
Drive rack
CNC Router Wood Carving Machine Parameter
Technical Data
| Model | iGW-G8-3H |
| Bed | Heavy duty welded bed |
| Spindle | 6KW air-cooled HQD spindle*3 |
| Maximum working speed | 20000mm/min |
| Spindle speed | 18000rpm |
| Positioning accuracy | 0.05mm |
| Table | Vacuum adsorption / Aluminum profile |
| Rail | Taiwan HINWIN |
| X, Y axis transmission | Rack |
| Z-axis transmission | Ball screw |
| Motor | stepper motor |
| Inverter | Fuling |
| Chassis | New independent G8 chassis, 21-inch display |
| System | LNC Control System |
| Working voltage | AC220V/380V, 50Hz |
We offer customized services according to your requests such as the working area and specifications.
Applications Of Multi Head CNC Router Machine
Woodworking industry: solid wood doors, cabinet doors, paint-free doors, craft wooden doors, 3D wave boards, screens, craft fans, game panels and cabinets, computer desks, panel furniture products and so on.
Advertising industry: advertising signage, logo production, acrylic cutting, plastic film making, and the production of advertising decoration products of various materials.
Other industries: It can carve various large reliefs, which are widely used in craft gifts industry.
Three Process CNC Carving Machine For Wood Feature:
1. Operate easily with many type of coordinate system to set tool and internal compensation
2. X Y axis adopt rack drive, which make it speed faster and effective higher, also have all functions of NC machine 1325
3. Excellent software compatibility can support many kinds of software,such as TYPE3, ARTCAM, WENTAI etc.
4. Has the function of re-carving after break point and power failure, working time anticipation, preview of tool path simulation, timely correct the error code, back to the original point with auto correction.
5. Realize many kinds of carving, such as relief carving, shadow carving, plane carving and cutting
6. Flexible data get way: get the data freely with handle, network, USB flash disk, Can work off-line without resource of computer,
7. Handle is connected with computer using USB interface for plug and play, supporting WIN91/NT/2000/XP
8. Whole circuit adopt chain shield cable, which can prevent signal interference. Copper core is not easy to break, which improve the stability of machine.
