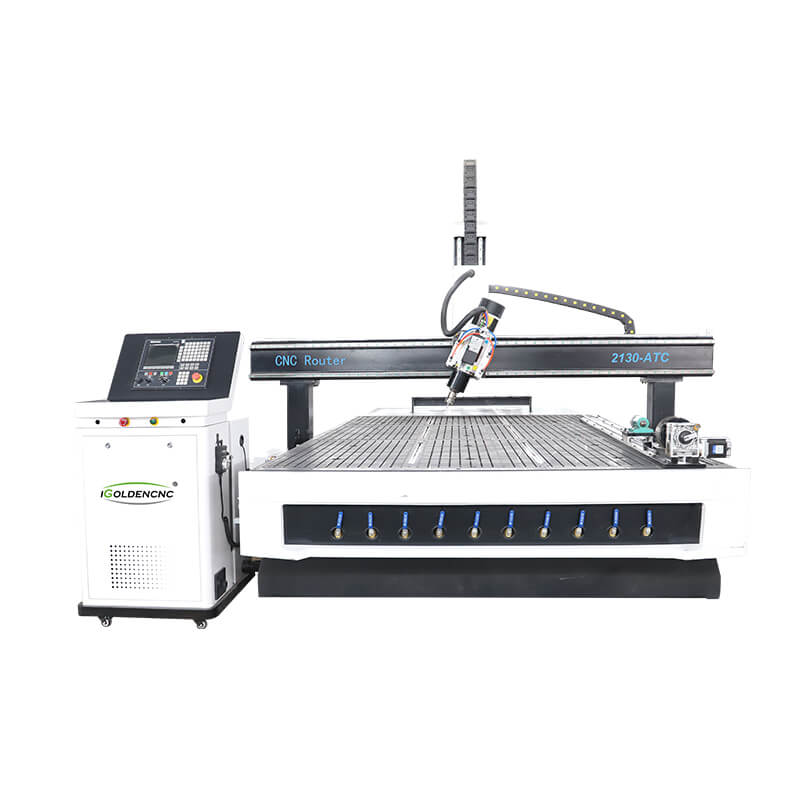

Atc CNC Router Machine With Rotation Axis
4 Axis CNC Router Machine is mainly for 3D wood carving, can do more complex woodworking such as side engraving on wood than 3 axis CNC. ATC HSD Spindle automatic change tools from tools changer, during all process no manual assistant needed, saves a lot of time and fewer operation needed;
4 axis CNC router machine is based on the ordinary 3 axis CNC machine, adding the fourth axis (rotary axis).
ATC CNC Router Video
In-line tool change tool magazine
Tool magazine can carry 8 sets of tools and manage to change tools automatically in the engraving process.，which can saving time of tools changing and improving working efficiency. There are two tool change modes for inline tool change and disc tool change. Widely used, including engraving, milling, chamfering, side milling, drilling, cutting, grooving, etc.
Workbench Structure
Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.
Wood CNC Router with Rotating Head
ATC spindle swings 180 degrees, it can make a more complex 3D wood carving than basic 3 axis CNC router.
Tube welding bed
More stable and effectively improves the rigidity and precision of the equipment.
NK280 control system
control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.
Table rotation axis (optional)

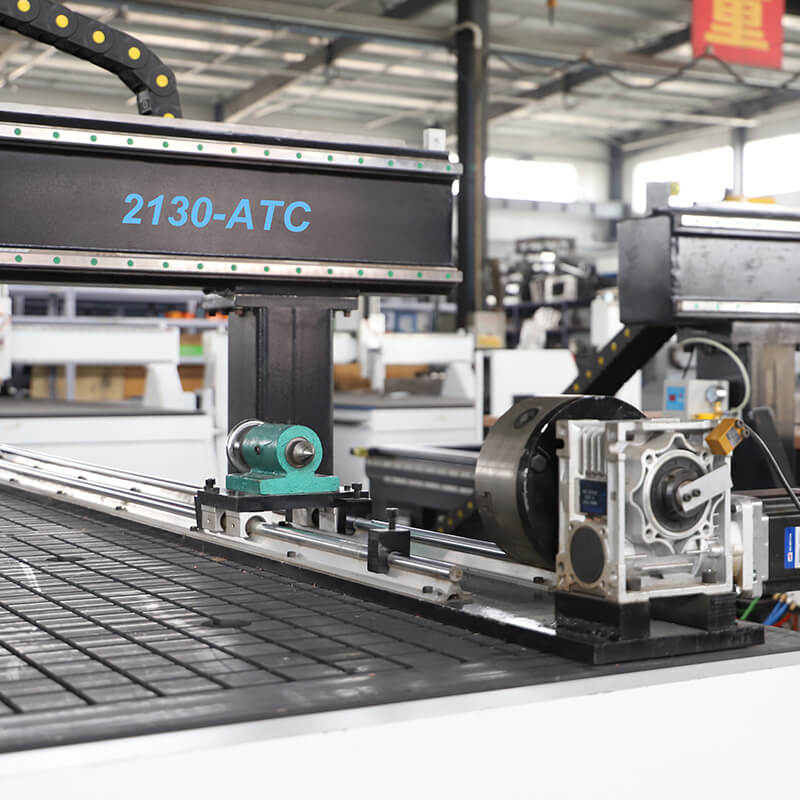

Carousel ATC 4 Axis CNC Router Machine with rotary device
Application
Wooden furniture industry:ATC CNC Router with Rotary Device is a combination of 3 axis CNC, 4 axis CNC, ATC CNC and rotary device for wood carving and engraving. The automatic tool change function greatly saves manual tool changing time and increases work efficiency. So fewer operator will be needed to watch and assist the CNC machine’s work.The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.
Advertising industry: acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper, aluminum and other soft metal plates.
ATC CNC Router Machine Parameter
Technical Data
| Model | 2130 ATC CNC Router |
| Working area | 2100*3000mm |
| Spindle | ATC 9KW HQD air cooling spindle, rotate 180 degree |
| Inverter | Fuling |
| Motor | Dorna servo motors |
| Driver | Dorna servo driver |
| control System | NK280 control system |
| Table | Vacuum & T-slot table with air cooling pump |
| Oil lubrication | Automatic lubrication |
| Limit | Omron limit |
| Transmission | XY axis helical rack Z axis Taiwan ball screw |
| Rail | X,Y,Z axis Taiwan HIWIN 25 Square guide rail |
| Screw | Z axis TBI 3210 ball screw |
| Bed | Thick steel welded big square tube |
| Gangry | Strong frame |
| Pillars | Steel pillar（Suitable for high-end customers） |
| Cabinet | Independent cabinet |
| Voltage | 3 phase/380V |
| Color | As requirement |
| Tools | 1 box(10 pieces) |
| Rotary axis | Optional |
We offer customized services according to your requests such as the working area and specifications.
