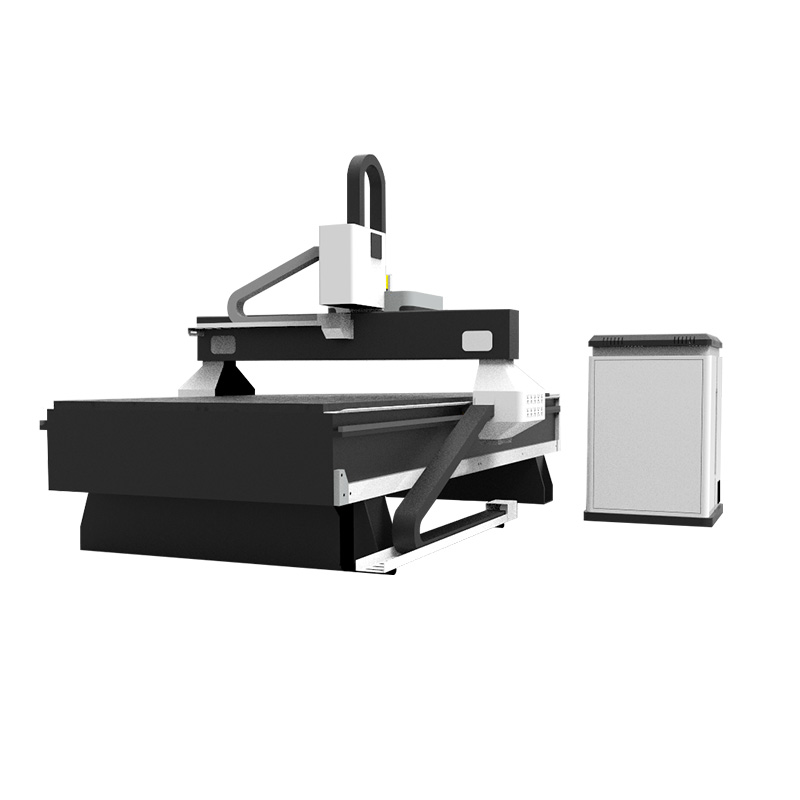

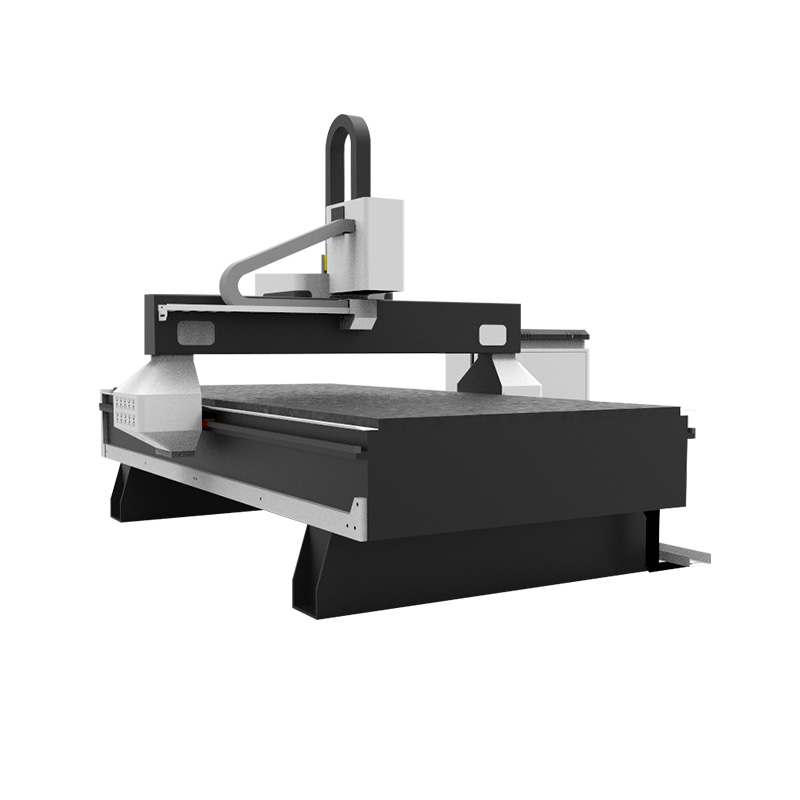

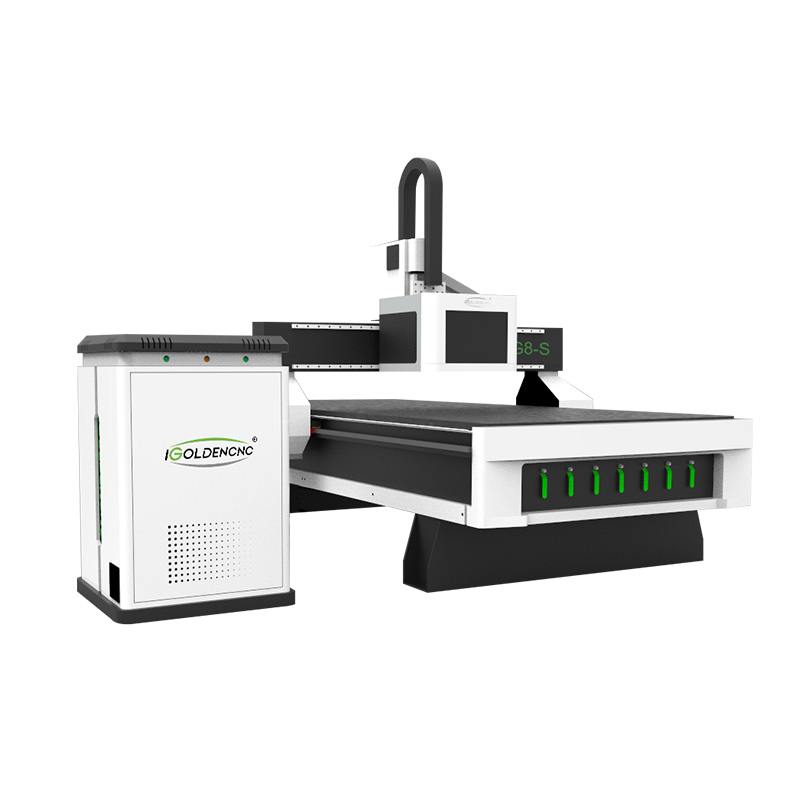

G8 CNC Wood Carving Machine
CNC Wood Carving Machine for sale, it is a basic 3 axis CNC wood router for high-speed 2D/3D wood, MDF, furniture carving, door/cabinet making, etc. A large table and strong machine body makes it good at 2D/3D wood letters/crafts and carpentry of big and heavy. If you want to do some baisc woodworking, this type of CNC wood router is your better choice.
CNC Wood Carving Machine Video
CNC Machining Center Parameter
|Item||IGW-1325 CNC Router|
|Control system||NcStudio /DSP|
|Transmission||XY Axis Germany helical rack,Z axis Taiwan TBI ball screw|
|Guide rail||XYZ Axis Taiwan liner square guide rail|
|Ballscrew||Z Axis Taiwan TBI ball screw|
|Bed||Thick welded square tube|
We offer customized services according to your requests such as the working area and specifications.
G8 CNC Wood Carving Machine Features:
1. With heavy-duty tubular steel frame, full-welded to ensure the structure stable with low inertia and no distortion during high-speed working.
2. High power spindles have constant power, low noises and super strong cutting force, which improve workingefficiency greatly.
3. Three axes adopt high precision square orbit, X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw, with high precision and long life time.
4. Famous brand drivers and motors have characteristics such as powerful strength, fast processing speed.
Powerful 4.5KW HQD air cooling spindle
Imported bearings with good quality, long working life. Application: Milling,Engraving,Drilling. High speed, low noise. Higher precision.
Independent control cabinet + DSP A11 control system
Gantry Column Structure
The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precisio。
Strong and durable transmission
Woodworking CNC Router Application:
1, Wooden doors and furniture industries: wood and composite doors, cabinet doors, a large area of flat plate engraving, wood engraving and milling carved, carved furniture, antique mahogany furniture, sculpture, wood carving art of murals and other industries;
2, Wooden handicraft processing: watch box, craft photo frames, calligraphy plaque, counter tops appliances, sporting goods equipment, engraving and milling a thin aluminum sculpture;
3, Electronics industry: circuit boards, insulation materials, LED display, home appliances (TV, washing machine, refrigerator) or model shell carving engraving and milling;
4, Music production industry: musical instruments carved three-dimensional surface, shape cutting, such as large or small violin and piano panel head, guitar, ecru and other three-dimensional surface engraving and milling;
5, EVA processing industry: EVA materials, packaging tools equipment, medical equipment, electronic products, glassware, etc. lined with carved engraving and milling.
6, Other industries: building model, wood model, aviation wood model, propeller, auto foam mold.
