    首页 / Foam CNC Machine / 4 Axis CNC Router

    Foam Cutting Machine

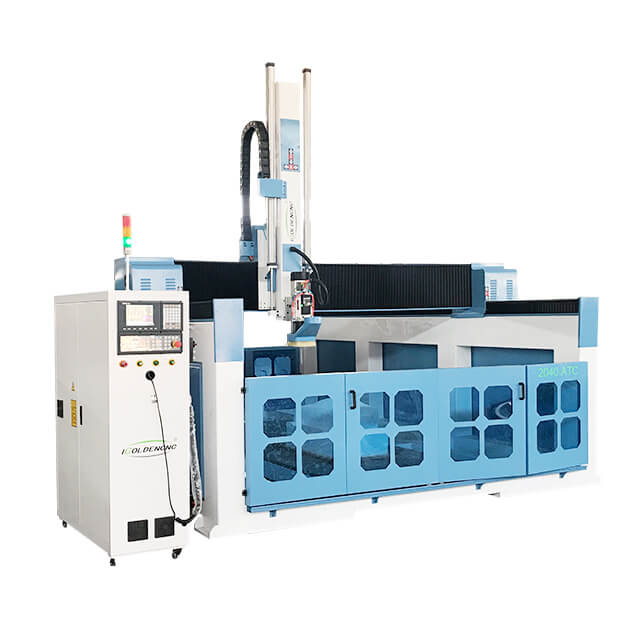

    4 Axis CNC Machining Centre for Foam, EPS, Wood

    EPS CNC router 4 axis machining centre, the spindle can swing 180 °, optional 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale 3D engraving, and curved surface processing is available, also known as foam CNC router machine, mold CNC router machine, EPS CNC carving machine.

    The 4 axis machining centre at a good price, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations.

    Send Inquiry

    3d Cnc Foam Cutting Machine Video

      Introduction

      The 4 axis machining centre at a good price, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations. Therefore it may be your better choice to process some foam products.

      Linear Automatic Tool Changer

      With the function of linear automatic tool changer, it make the whole processing more time-saving and more efficient.

      Air Cooling Spindle

      Equipped with HSD air cooling spindle with imported bearing, it has many advantages like long service life, low noise, and strong cutting ability.

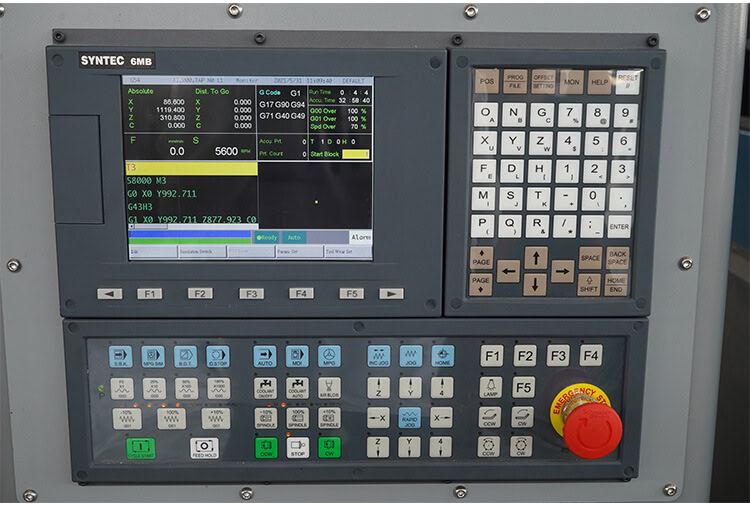

      Control System Optioned

      Taiwan LNC system is the standard system.

      Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

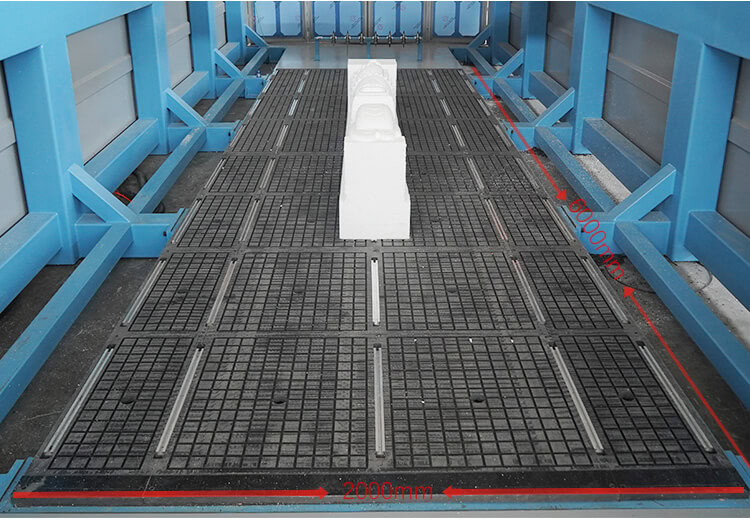

      Worktable Optioned

      There are many choices of table size: 1300*2500mm, 1500*300mm, 2000*4000mm, (we can customize the size according to your needs)

      The cast iron worktable with the fixture is the standard worktable.

      The vac-sorb worktable with T-slot can be optioned.

      Worktable Rotary Device

      The worktable rotating device specially designed for sinking worktable has a thimble structure at both ends.

      It can process materials with a diameter of 800-1000, the length is optional, generally according to the bed size.

      Eps CNC Router 4 Axis Machining Centre

      Hot applications include:

      Carving all kinds of non-metal materials processing such as foam, lost foam, automobile foam mold, yacht mold, large ship wooden mold, cast wooden mold, engineering plastic materials, aviation wooden mold, propeller, train wooden mold, etc.

      >Foam processing of automotive stamping molds, casting wood molds, automotive interiors, processing of engineering plastic materials;

      >Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, three-dimensional curved surfaces for large musical instruments, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, etc.

      CNC Machining Center Parameter

      Technical Data

      ModeliGW-MC-2040
      Working area2000*4000*900mm
      SpindleHQD 9.0kw ATC air cooling
      Speed Speed18000rpm
      Repositioning Accuracy0.02mm
      Machine BodySquare Tube Welding Structure
      Guide RailsTaiwan HIWIN
      DriverJapan YASKAWA Servo Drive and Servo Motor
      ReducerJapan SHIMPO
      WorktableProfile Clamping Table
      Frequency ConverterTaiwan DELTA
      Electrical ComponentsFrance SCHNEIDER
      Control SystemDSP/ NCSTUDIO
      Voltage3phase 380V/50HZ

      If you need more detailed information, please inform us as soon as possible.

      Production Workshop
