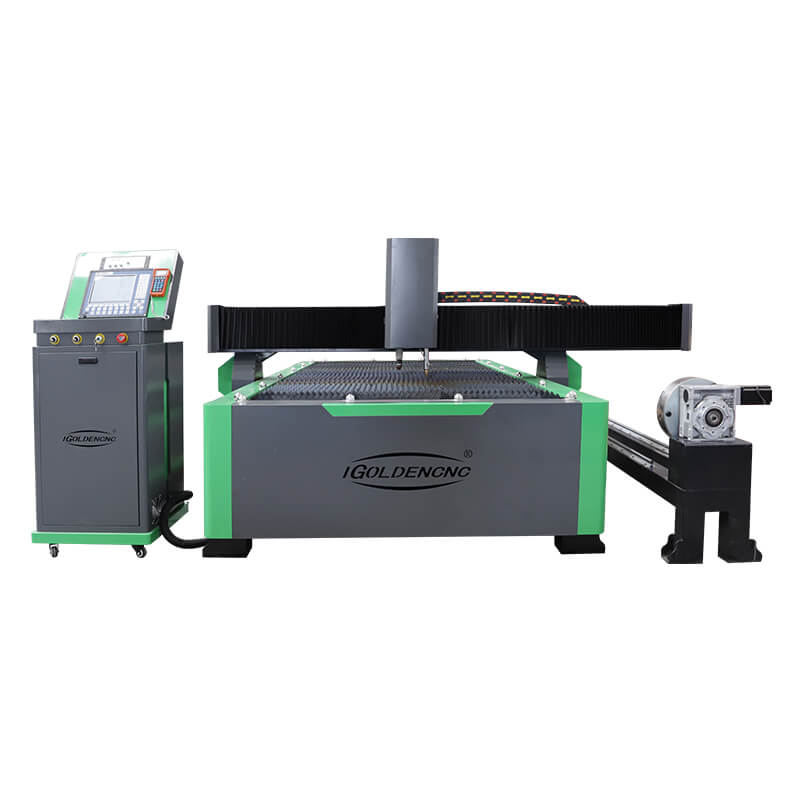

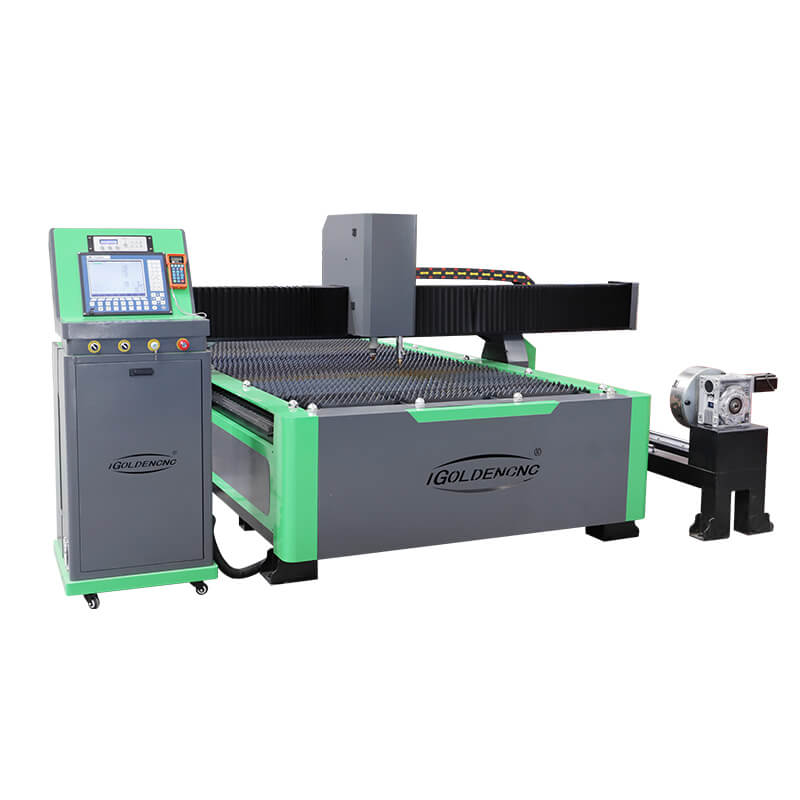

CNC table plasma cutting and marking machine
The CNC Pipe and Tube plasma Cutter can cut mild steel, stainless steel, aluminum, brass, and copper pipe and tube. If it will conduct electricity it will cut. With the addition of the CNC Pipe and Tube Cutter, your CNC Plasma Table will become a multi-purpose machine, effectively saving you thousands of dollars and precious shop space.
CNC Plasma Cutting Machine Video
Multi-function Plasma machine
cnc plasma cutting machine is a multi function machine, which include the drilling, marking, cutting, and rotary device cutting.

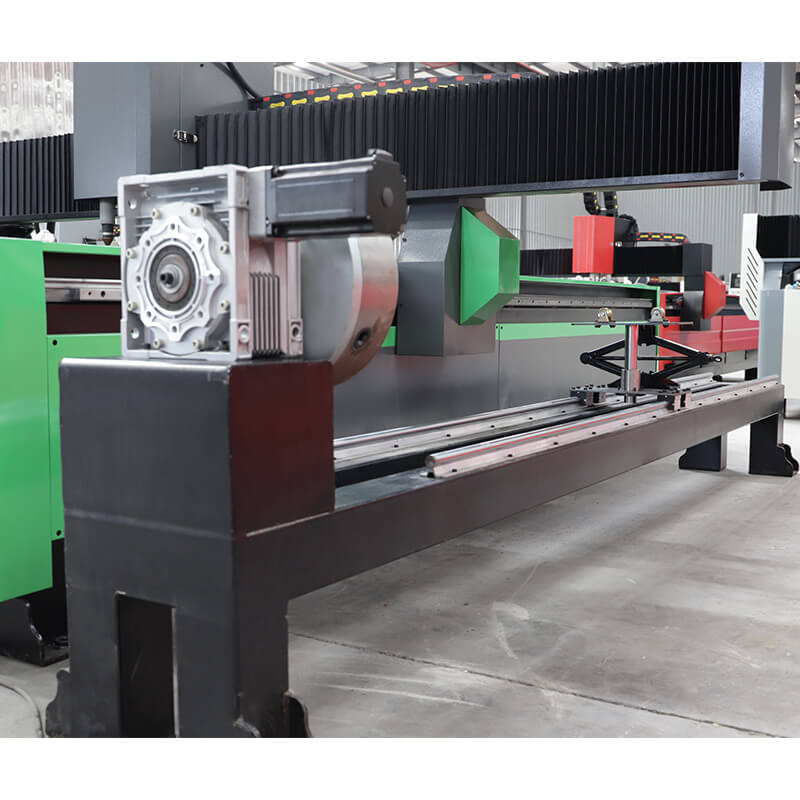

Rotary axis cutting
Complete steel pipe processing tasks, one machine with dual-use, speed up cost recovery. cutting round and square tubes but also meet the special-shaped processing of steel plates.
Hypertherm 125A (Optional:Hypertherm 65/85/200A)
Precise cutting, no burrs, and small bevel.
Energy-saving, low consumption, more stable performance.
F2300A multi-function CNC control system(Or Starfire control system)
It is equipped with an advanced tube-sheet dual-use CNC cutting system and a tube-sheet dual-use CNC cutting system.
CNC Plasma Tables Application
It is a cnc plasma cutting and drilling machine with a pipe cutter to cut plates, pipes, and drill holes on metal elements. The upper left is the project – cut tube, the upper right is the project – drilled steel plate, the lower left is the project – cut steel plate, and the lower right is the project – machined metal part.
Field
● Good for cutting service shops & big manufacturing workshops.
● Circular pipes and metal plate jobs like cut letters, signs, patterns, and shapes (rectangular, slot, square, circular, special shapes, etc.) With a drilling head, it is also suitable for drilling works.
Materials Good For
Carbon Steel, SS, Aluminum, Brass, and other nonferrous metal.
CNC Plasma Tables Parameter
Technical Data
| Model | 1530 |
| Working area | 1500x3000mm |
| Torch height controller | with |
| Working table | Saw tooth table |
| Plasma power supply | USA Hypertherm 125A |
| Cooling system | Air cooling |
| Control system | F2300A control system with THC |
| Flies transfer | USB interface |
| transmission | X,Y-helical rack pinion, Z ball screw |
| Guide rail | Taiwan Hiwin guide rail |
| Drive system | Japan AC servo motor and drivers |
| Arc | Untouched Arc Striking |
| Traveling speed | 0-50000mm/min |
| Working speed | According to the cutting thickness |
| Working voltage | 3 phase 380V/50HZ and single phase 220V |
| Software | Fastcam |
| Rotary axis | with |
| Marking head | With |
| Anti collision | With |
| Drilling head | optional |
It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.

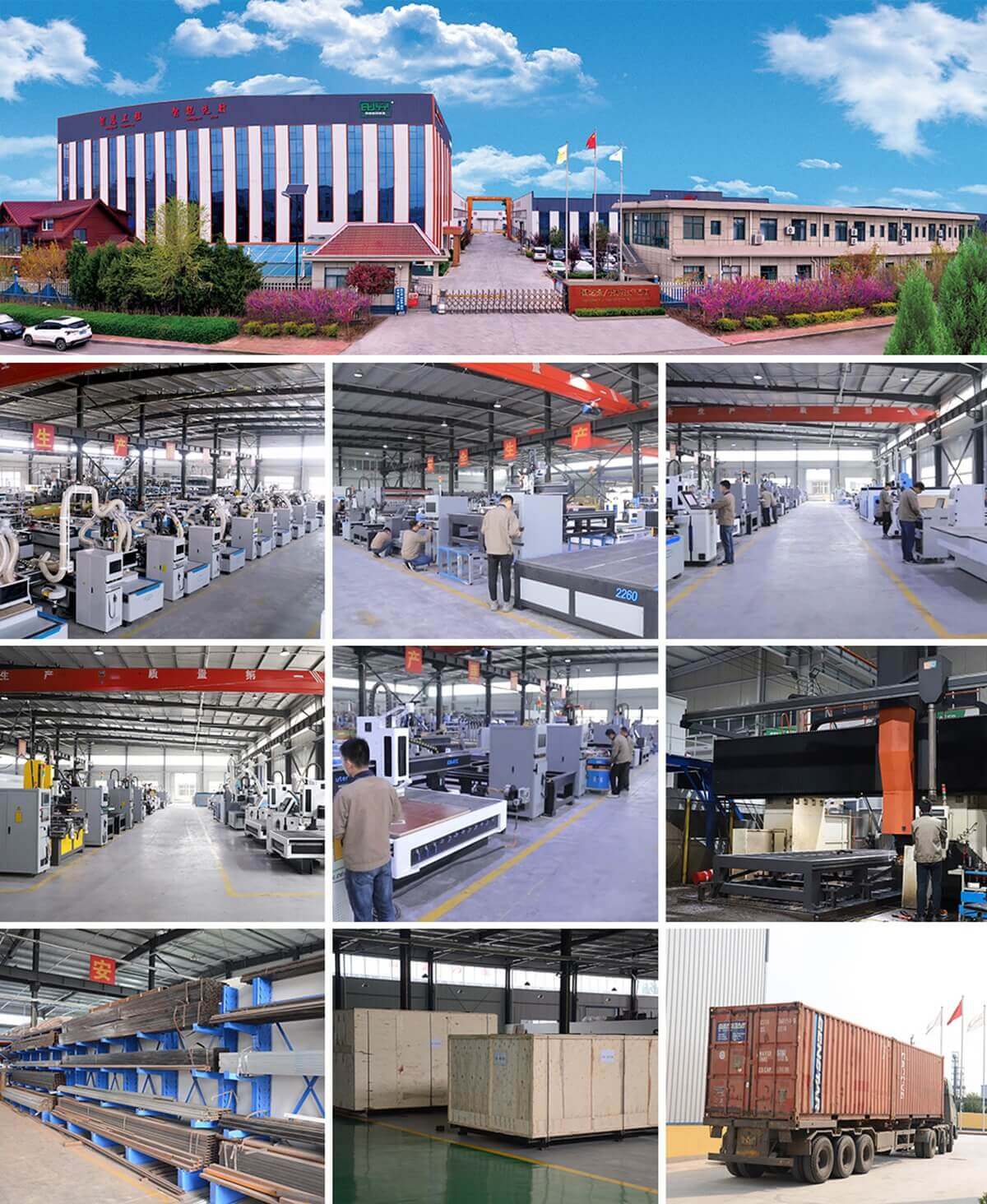

Production Workshop
