Wood Machining Center

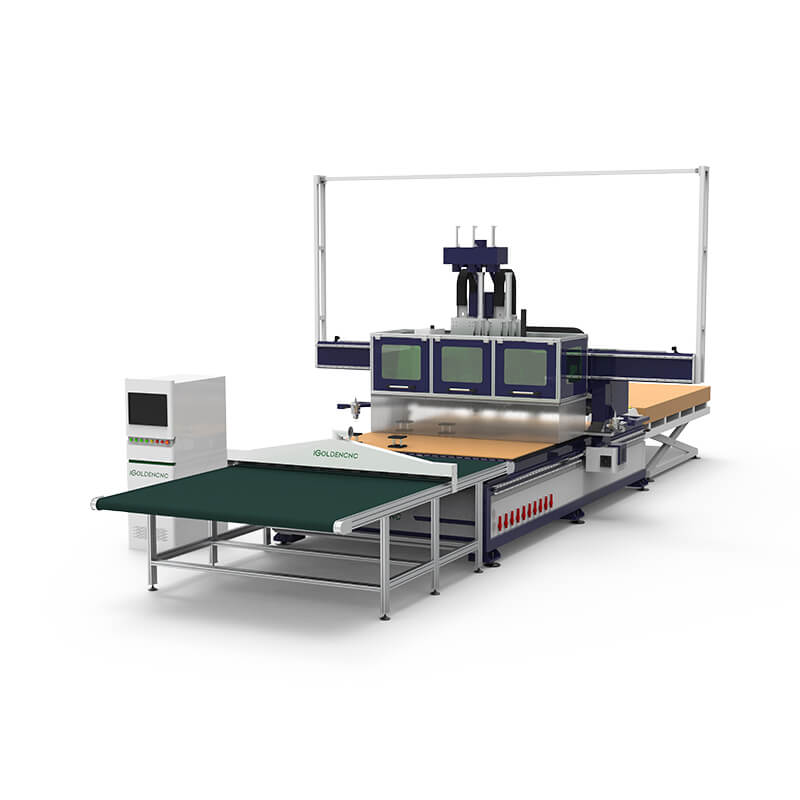

This 9-in-1 CNC machining center is a high-performance all-round woodworking machine specially developed for custom whole-house furniture, including kitchen cabinets, wardrobes, wooden doors and office furniture. It integrates nine core functions: cutting, sawing, automatic tool changing and profiling, vertical drilling with 5+4 boring heads, side milling & side drilling via C-axis angle head, automatic labeling, vacuum adsorption, automatic loading & unloading, and dust removal. One machine replaces multiple standalone devices, greatly cutting labor costs and boosting production capacity. With high precision, high rigidity and full automation, it is the ideal model for intelligent upgrading of medium and large custom furniture factories.
Full-automatic One-to-one Woodworking Production Line
This production line is tailor-made for custom furniture enterprises, delivering fully unmanned operations covering the entire workflow from cutting and edge banding to drilling. Equipped with intelligent vision robots and flexible buffer systems, it enables an efficient operation mode requiring only minimal on-site staff, with one-click control for the entire production line.
Once the equipment is activated, the automatic labeling machine prints and attaches codes to panels, while the cutting machine carries out precise sizing. Unloading manipulators intelligently sort special-shaped workpieces and standard panels separately. To resolve the pain point of multi-sided edge banding, gantry manipulators paired with vision systems automatically identify and rotate panels for secondary edge sealing, eliminating manual edge banding entirely. After edge banding, panels move into buffer warehouses to balance production rhythm. The six-sided drilling machine with visual positioning adaptively selects corresponding programs to deliver high-precision machining.
Product Parameters
| Technical Specifications | Parameter |
| Model | iGC-M2130 |
| Bed Frame | Heavy-duty Welded Bed |
| Machine Head | Saw Blade Motor + Spindle + Drill Head Group + Labeling Machine |
| Servo | Syntec Servo 1.3KW*4 (Z-axis with brake) |
| Reducer | Shimpo Reducer |
| Linear Guide | 30 linear guides × 2 for X/Y axes, 25 linear guides × 4 for Z axis |
| Rack | 1.5M |
| Ball Screw | 3210 |
| Spindle | HQD 9.0kw air cooled tool change spindle |
| Tool Magazine | 8 tools + 2 angle heads |
| Saw Blade Motor | 5.5KW (Standard Configuration), 7.5KW Optional |
| Saw blade | 350/400 |
| Multi Boring Head | 5+4 |
| Vacuum Pump | 7.5KW*2 |
| Vacuum Absorption Zone | Zone 10 |
| Dust Collector | 7.5KW Double Barrel Dust Collector |
| Double-sided Suction Cup | 5+4 |
| Optional | Loading & Unloading Platform/Dust Removal for Cutting Platform/Full Enclosure for Gantry Head/ C-axis with Angle Head |
Automatic labeling machine
After raw materials are loaded, codes are automatically labeled; panels are automatically fed for cutting; finished cut panels are conveyed to the unloading platform upon completion.
Automatic Loading and Unloading Platform
Sharp reduction in labor costs——It completely replaces 2 to 3 porters and enables 24-hour continuous production, cutting labor costs by 70%.
Productivity surges exponentially.——Machining runs simultaneously with loading and unloading. Equipment utilization exceeds 90%, and production capacity rises by.
Multi-functional Integrated Spindle Head
HQD 9KW Air-cooled Automatic Tool Change Spindle：Standard configuration with an 8-tool magazine and 2 angle heads. It automatically switches among milling cutters, grooving cutters and side machining cutters without manual tool change. Profiling, grooving and routing of door panels can be finished in one operation.
Sawing Unit：Equipped with a standard 5.5KW saw blade motor, and an optional high-power 7.5KW motor is available. It is compatible with 350/400mm saw blades. Straight cutting, right-angle cutting and grooving for invisible fittings are far faster than conventional milling cutting, delivering smooth cutting surfaces free of edge chipping.
5+4 Nine-row Drilling Head：It completes vertical hole drilling of multiple specifications in one cycle, doubling the punching efficiency for three-in-one fasteners, Lamello connectors and invisible fittings, and meeting all hole machining requirements for cabinet bodies.
C-axis Rotary Angle Head: 360° rotating side milling and side drilling. Grooving, drilling and bevel cutting on panel sides can be realized without re-clamping, covering the whole machining of complex cabinets and special-shaped panels.
Key Advantages
- High precision and repeatability — Servo-driven axes and rigid gantry construction hold tight tolerances across long production runs, part after part.
- Multi-process capability — Combines cutting, drilling, grooving, and edge profiling in a single machine, eliminating the need to move parts between separate stations.
- Automatic tool changer (ATC) — Switch between tools in seconds, supporting complex jobs without manual intervention.
- High-speed spindle — Delivers clean cuts and smooth finishes across hardwoods, softwoods, and engineered panels, reducing the need for secondary sanding.
- Vacuum table hold-down — Secures irregularly shaped or thin workpieces firmly during machining, improving both safety and cut quality.
- Intuitive CAM software integration — Import designs directly from common CAD/CAM formats, with nesting optimization to reduce material waste.
- Durable, low-maintenance build — Heavy steel frame construction absorbs vibration and resists wear, supporting long-term operation in demanding production environments.
- Scalable configurations — Available in multiple bed sizes and spindle options to match shop volume and part dimensions.
Popular applications include
- Wood furniture industry:solid wood & composite doors, cabinet doors, sliding doors, paint-free doors, painted doors, upholstered doors, flat panel engraving, solid wood carving, panel furniture, antique mahogany furniture, solid wood mural carving, etc.
- Wooden crafts industry: clock stands, craft photo frames, calligraphy plaques, electrical appliance countertops, sports equipment, thin aluminum plate engraving.
- Advertising industry: acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper, aluminum and other non-ferrous metal sheets.
Furniture CNC Machine Buying Guide
As furniture manufacturers increasingly move toward smart factories and customized production, automated CNC nesting machines have become essential equipment for producing kitchen cabinets, wardrobes, closets, office furniture, bathroom vanities, and custom home furnishings.
Whether you are a small custom furniture workshop or a large-scale panel furniture factory, this intelligent CNC machining center provides the speed, precision, and flexibility required for modern manufacturing.
The control software typically accepts common formats such as DXF, DWG, and NC/G-code, allowing direct import from most CAD and CAM design tools.
Footprint varies by bed size and configuration. Compact models suit smaller workshops, while full-size production units require dedicated floor space with clearance for material loading and unloading. Specific dimensions are available on request.
Yes. Bed size, spindle power, tool changer capacity, and software packages can typically be configured to match specific part sizes, materials, and production volumes.
