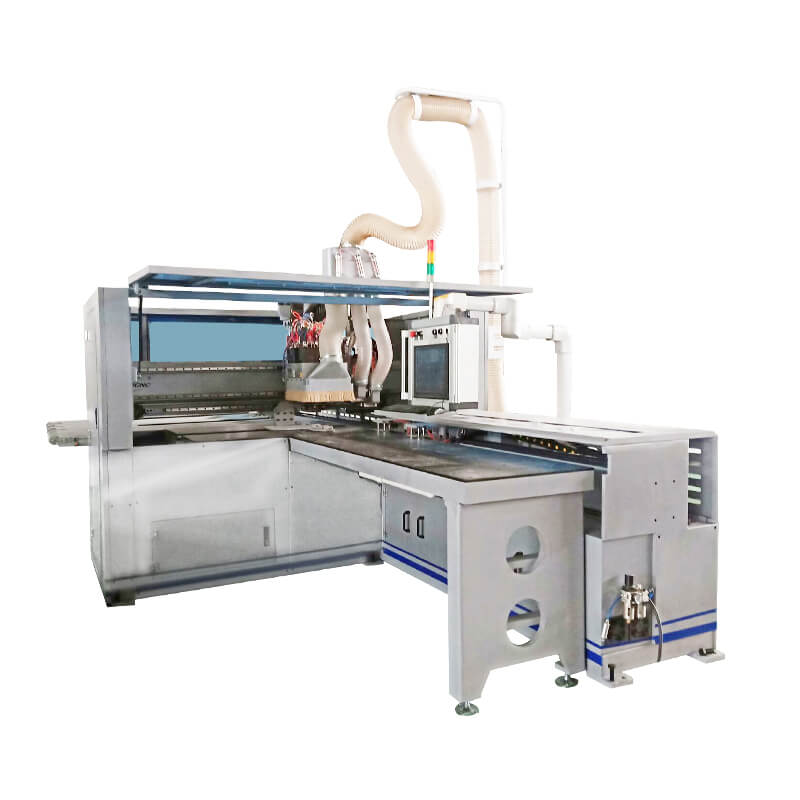

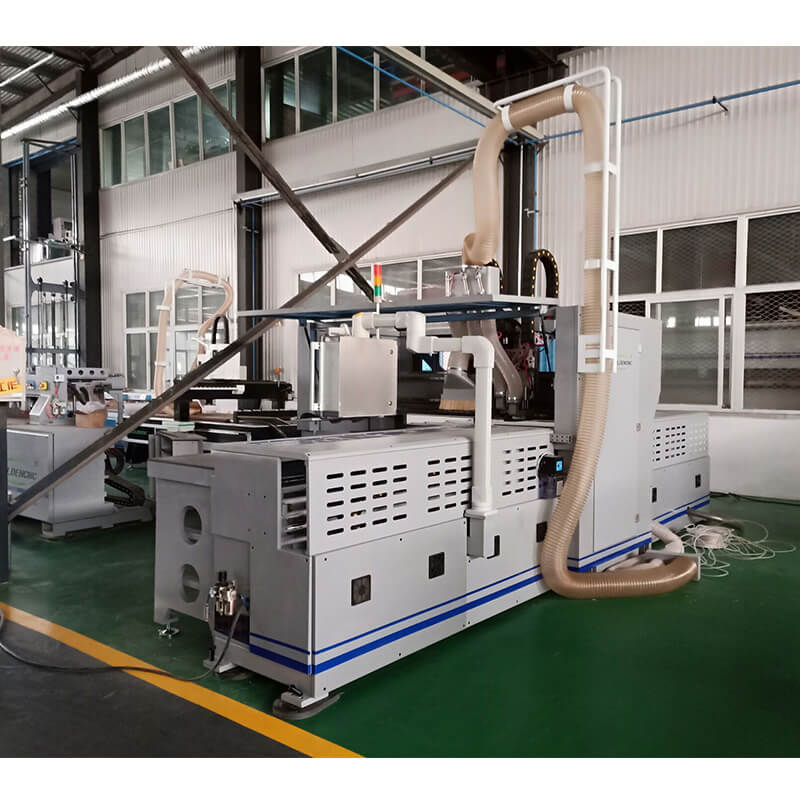

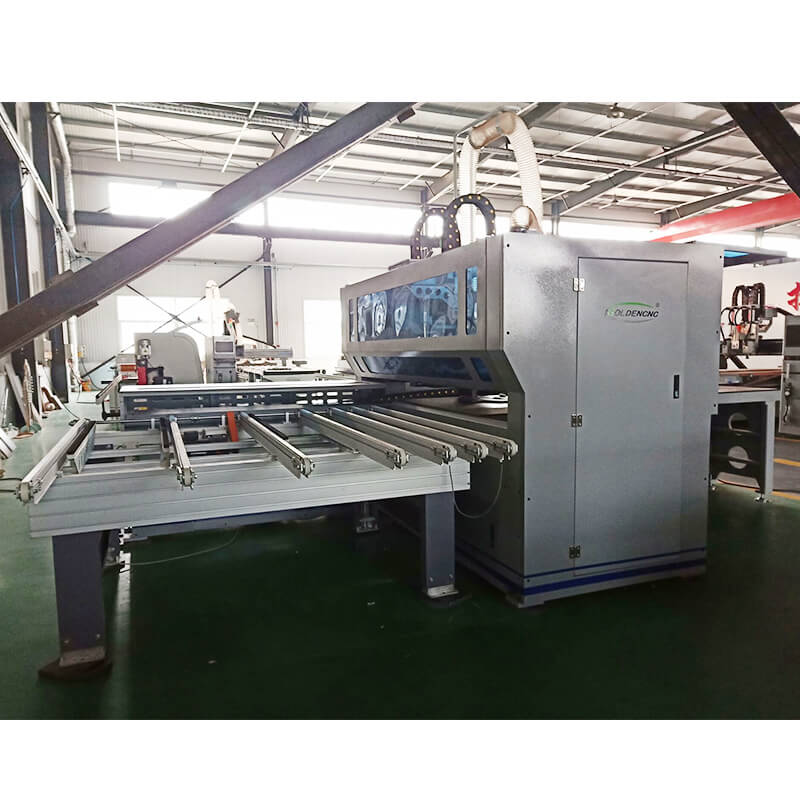

Side Hole Drilling Machine – Six Sided Drilling Machine

CNC six-sided drill is a kind of CNC six-sided drilling and slotting equipment for panel furniture. The six-sided drill is combined with the automatic panel furniture cutting machine to realize fully automated and efficient production of panel furniture and custom furniture throughout the house. The whole process of furniture cutting and drilling production does not require manual flipping.

CNC six-sided drill machine is a high-end CNC equipment for drilling and grooving of plate furniture production. Six-sided CNCdrilling can complete six-sided processing, grooving and milling at one time. Easy to operate, flexible to use, free from manual intervention. The hinge hole can be processed in the linkage, and the thickness of the plate can be mirrored on both sides within a certain range.

Send Inquiry

ATC CNC Router Video

CNC Machining Center Parameter

Model	iGC-6D-2412
Machine Body	Square Tube Welding Structure
Spindle	HQD 3.5kw Air Cooling*2
Worktable	Gas Floating Worktable
Control System	TAIWAN SYNTEC
Number of tools	9 vertical + 4 horizontal + 1 knife
Transmission motor	SYNTEC Servo Motors and Drives
Inverter	FULING
Workpiece length	200-2800mm
Workpiece width	50-1240mm
Workpiece thickness	12-45mm
Dimensions	5500(L)2700(W)2000(H)mm

We offer customized services according to your requests such as the working area and specifications.

Precision drilling box

Upper drilling package: 9 vertical drilling shafts and 4 horizontal drilling shafts in total. Lower drilling package: 4 vertical drilling shafts in total

Taiwan’s Syntec servo motor

1.Servo control clamp 2.Fast and precise positioning 3.The clamp moving speed can reach up to 130m/min

Double clamping and feeding

The double-clamping mechanism is adopted, and the board feeding and positioning are automatically controlled according to the computer drilling program to improve the drilling accuracy.Effectively prevent the edge banding tape from being scratched.

21 inch color screen control display

The operation is safe and reliable, the interface is simple and friendly,

With complete operation tips and troubleshooting guidelines.

Six Sided Drilling Machine Application

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboard doors, interior doors,sofa legs, headboards and so on.

2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and
cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration
Wood crafts; gift box; jewelry box.

5. Others
Relief sculpture and 3D engraving and Cylindrical object.
