4 Axis CNC Router with Rotary Axis

CNC Router with Rotary Axis is equipped with a right rotation axis, multi-purpose and cost-effective, which has both flat plate carving and column engraving functions. It is mainly used for 3D engraving process, wave board processing, wooden door processing, solid wood furniture carving, solid wood art mural carving, etc.

This rotary axis engraving machine has a small working area. With a small footprint and it is more flexible and convenient to use. Therefore, it is suitable for meeting the processing needs of the advertising industry, home use or small businesses.

4 Axis CNC Router Machine Video

6KW air-cooled HQD spindle

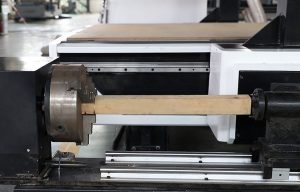

Right Rotation Device (Front Rotation Device Optioned)

Vacuum + T slot table structure_07

Taiwan HINWIN rail

4 Axis Router Wood Carving Machine Parameter

Technical Data

Model iGW-3AR-1325
Structure Seamless steel welded
Table Vacuum table with t slot
XYZ working size 1300*2500*200mm
XYZ transmission XY axis is helical rack and gear,Z axis Ball Screw
XYZ guide rail Taiwan Hiwin Line 20mm Square guide
Spindle 6kw italy HSD air cooling spindle
Spindle collet 2 pieces
Inverter Well known china Fuling 7.5kw
Motor Servo motor(Yaskawa 850w)
Driver Servo driver(Yaskawa 850w)
Controller system DSP A18 control system
Voltage 220/380v, 3phase 50HZ
Packing weight 1500KG

We offer customized services according to your requests such as the working area and specifications.

Applications Of 4 Axis CNC Router Machine

    4 axis CNC machine has four processing directions of X, Y, Z and A axis. Therefore, it can realize the processing of three-dimensional work pieces such as Dragon pillar, Guanyin statue, Buddha statue, Roman column, gourd and so on. And it can be also widely used in three-dimensional wave board processing, cabinet doors, solid wood doors, craft doors, paint-free doors, screens, craft window processing, shoe polishers, game cabinets and panels, mahjong tables, computer tables and panel furniture products’ auxiliary processing.

Wooden furniture industry: wave boards, fine patterns, antique furniture, wooden doors, screens, craft window sashes, composite doors, cabinet doors, interior doors, sofa legs, headboards, etc.

Advertising industry: Advertising recognition, sigh production, acrylic carving and cutting, crystal character production, sandblasting molding and other advertising material derivatives production.

Mold industry: sculptures of metal molds such as copper, aluminum, iron, and sculptures of artificial marble, sand, plastic cloth, PVC pipes, wooden boards and other non-metal molds.

4 Axis CNC Router Features

More powerful functions. This kind CNC Machine can not only realize the processing of flat work pieces, but also the processing of three-dimensional work pieces and irregular work pieces.

Wider range of applications. This four-axis engraving machine can be used for processing effects such as hollowing, engraving, cutting, embossing, sawing and curved surface on foam, wood, plaster, composite materials, aluminum copper, acrylic and other materials.

Higher safety factor. This type of 4 Axis CNC Router Machine has the functions of parameter backup and parameter recovery, which effectively prevents the loss of important parameters.

Smarter operation. This type has the intelligent processing memory function, and supports for break point continued carving. For example, if the machine encounters a power outage, it can continue to process and it does not affect processing efficiency.

Contact Us Today to Get Price!

    Please prove you are human by selecting the tree.

    What Is 4th Axis (Rotary Axis)?

    The 4th axis is also called as the CNC indexing head, which is a machine tool accessory that clamps the workpiece on the chuck or between the two centers, and makes it rotate, index and position. The advantage of adding the 4th axis to the machine is that it can make the plane of the tool machining more extensive, and can reduce the repeated clamping of the workpiece, improve the overall processing accuracy of the workpiece, and help simplify the process and improve the production efficiency.

    Specifically, the 4th axis can complete the tasks that the 3 axis CNC machine cannot complete at one time. It can realize multi-sided processing of the product through rotation, which greatly improves the machining efficiency and reduces the number of clamping, shorten production time.

    • The rotation angle can process multiple surfaces at the same time, which improves the overall machining accuracy of the workpiece, which is beneficial to simplify the process and improve the production efficiency.

    • The three axes are X, Y, Z three linear moving coordinates, and the 4th axis is generally a rotating axis, which can cause an angular offset between the tool and the workpiece, that is, the tool axis and the surface normal of the workpiece form an angle. One can expand the machining range, and the other can make the machining conditions better.

    What is 4 axis CNC router?

    4 axis CNC router is to increase the fourth axis C axis on the basis of the ordinary plane three axis CNC router machine. The existence of the C-axis can be a main shaft that swings from side to side and rotates 180°, or it can add an additional rotating shaft that can rotate 360°.

    The main shaft can swing 180°C axis left and right. This 4 axis CNC machine can not only realize plane processing, but also realize double-sided processing. And mainly do some surface treatment of 3D workpieces.

    Another type of 4 axis CNC router is also called rotary axis CNC router machine. Compared with the 3-axis CNC router machine, this type of 4-axis CNC machine adds a rotating device to the 3-axis CNC router. The rotary device mainly realizes the processing of cylindrical workpieces. It should be noted that whether it is the X-axis or Y-axis direction of the machine, the rotating device can be placed in any position you want. In addition, the rotating device can not only be placed on the machine, but also independent of the machine. And easier to operate, maintain and transport. Therefore, the CNC 4 axis router can realize the machining and planing engraving of cylindrical workpieces.

    What are the advantages of this 4 axis CNC machine?
    1. More powerful functions. This kind CNC Machine can not only realize the processing of flat work pieces, but also the processing of three-dimensional work pieces and irregular work pieces.
    2. Wider range of applications. This four-axis engraving machine can be used for processing effects such as hollowing, engraving, cutting, embossing, sawing and curved surface on foam, wood, plaster, composite materials, aluminum copper, acrylic and other materials.
    3. Higher safety factor. This type of 4 Axis CNC Router Machine has the functions of parameter backup and parameter recovery, which effectively prevents the loss of important parameters.
    4. Smarter operation. This type has the intelligent processing memory function, and supports for break point continued carving. For example, if the machine encounters a power outage, it can continue to process and it does not affect processing efficiency.
    5. Stronger anti-interference. This type of machine has passed many CE tests, no matter what processing environment the machine is in, it can complete the ideal processing effect in the best working condition.
    6. Better software compatibility. Adopting an open software interface, it can be compatible with the processing codes generated by various CAD / CAM design software, such as type3 / Artcam / Castmate / Wentai, to ensure the realization of various design functions.
    What Technical Advantage Does 4 Axis CNC Router Have?

    The 4-axis cnc machine can do most of the 3D machining / milling / carving jobs. So it is also known as 3D cnc router.
