Swing Head 8 Tool Atc Liner Wood CNC Router Machine

The best 4 axis CNC wood engraving machine, the spindle can swing 180 degree, 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale engraving without dead angles, and can complete curved surface processing, mainly used in wood mold industry, craft industry and gift industry.

This 3D CNC wood carving machine is an ATC CNC router with a 4th axis of swing spindle, and a table size of 2200×6000. With different tool kits, it can do complex engraving/carving/cutting works.



ATC CNC Router Video

    Please prove you are human by selecting the flag.

    ATC CNC Router For Wood Parameter

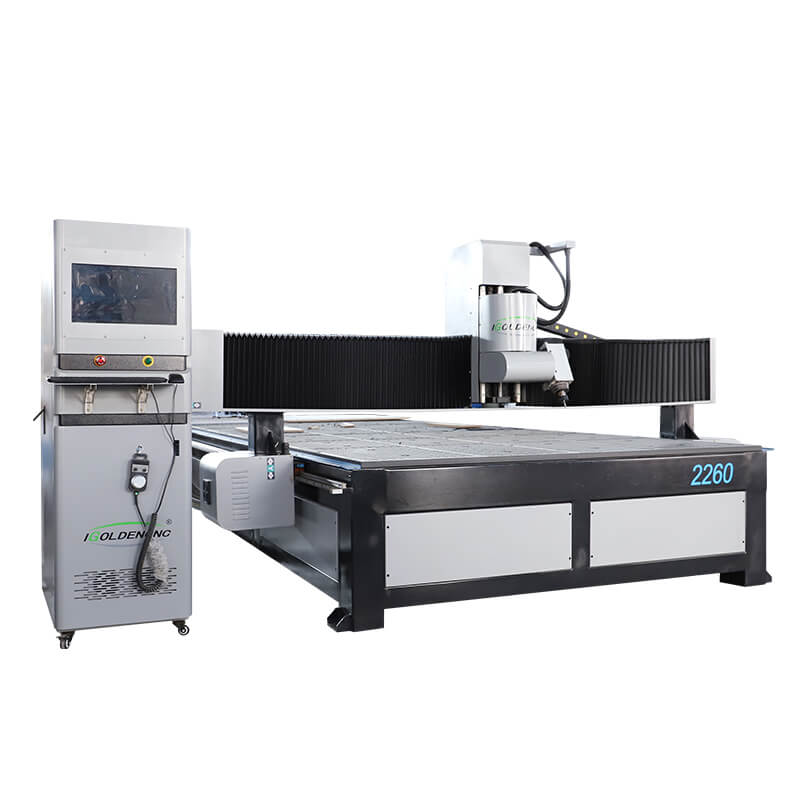

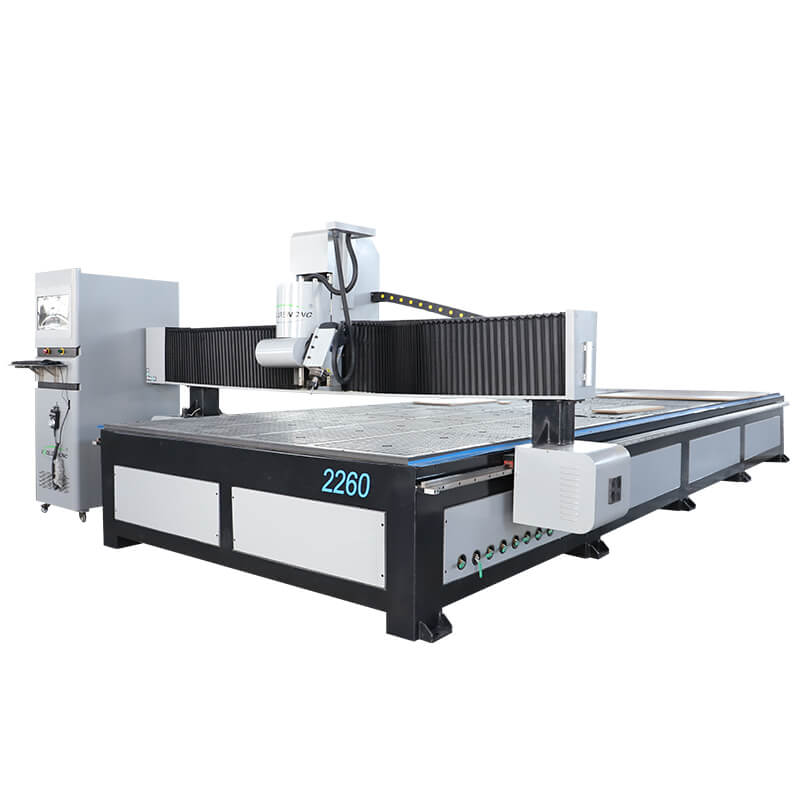

    Model iGW-4AS-2260
    Machine stroke 2200mm *6000mm*200mm
    X-axis travel 2200mm Repeat positioning accuracy ±0.03
    Y-axis travel 6000mm, spindle speed 18000 rpm
    Z-axis travel 200mm idle travel speed 350000mm/min
    File format G code
    Workbench structure Class A special vacuum adsorption table
    Working voltage 380V/50HZ
    Bed Heavy-duty stable bed, CNC gantry milling CNC one-time forming processing, stable structure, guaranteed accuracy, aging tempering, not easy to deform
    Spindle 6KW air-cooled new spindle spindle Y axis (front and back) swing;
    Drive system Dongling 1.5KW high-torque servo motor drive + Z-axis brake
    Reducer Japan SHIMPO reducer
    Control system Taiwan LNC four-axis panel integrated machine + wireless handwheel
    Rack HIWIN high precision alloy hardened helical rack + alloy hardened gear shaft
    Guide rail Three-axis imported Taiwan Shangyin square rail or Taiwan PKE square rail + dust-proof flange and dust-proof slider
    Lead screw Taiwan high precision wear-resistant lead screw
    Electrical components The main electrical components are Schneider from France and Omron from Japan; Chint uses matching
    Frequency converter Fuling frequency converter
    Cable Special cable for CNC machine tools
    Workpiece fixing method Vacuum adsorption
    Cabinet independent large computer cabinet
    Dust collection system floating dust collection + central dust collection structure
    Connecting parts the transmission parts are fixed with 12.9 high-strength screws
    Lubrication system electric motor oil pump microcomputer centralized lubrication control, regular and quantitative oiling
     Accuracy guarantee  the rigidity of each axis is fixed, and the precision parts are equipped with positioning pins
    Random configuration automatic oiling system, automatic tool setting instrument, cutting tool, tool box, etc.
    Application software compatible software Wentai, TYP3, Jingdiao, etc.

    If you need more detailed information, please inform us as soon as possible.

    ATC CNC Wood Cutting Machine Advantages：

    An ATC reduces production time by automatically changing cutters between tool paths, thus eliminating the need for the CNC operator to change and zero tools individually. The ATC allows the BCAMCNC Router to do the full job, even when different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings. A machine equipped with an ATC can perform operations normally done on other pieces of equipment, eliminating the need for additional machines in the shop.

    In-line tool change tool magazine

     With 8 or 12 sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.There are two tool change modes for inline tool change and disc tool change. Widely used, including engraving, milling, chamfering, side milling, drilling, cutting, grooving, etc.

    ATC 9KW HQD air cooling spindle, rotate 180 degree

    Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree.

    Table rotation axis (optional)

    Carousel ATC 4 Axis CNC Router Machine with rotary device

    NK280 control system

    Control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.

    Application

    Wooden furniture industry: ATC CNC routers have a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.

    Advertising industry: acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper, aluminum and other soft metal plates.

    Contact Us Today to Get Price!

      Please prove you are human by selecting the heart.

      What is ATC CNC Router?

      ATC CNC Router is the abbreviation of Auto Tool Changer CNC Router, also be named as Heavy Duty CNC Router. An Automatic tool changer or ATC is used in the CNC Router machine to improve the production and tool carrying capacity of the machine. ATC changes the tool very quickly, reducing the non-productive time. Generally, it is used to improve the capacity of the machine to work with a number of tools. It is also used to change worn out or broken tools. It is one more step towards complete automation.

      Normally there is two types tool magazine. One is carousel type and with 8 positions or 10 positions or more positions. This ATC system is the fastest method of changing tools on a regular basis. Another is a linear type tool magazine. This tool magazine is very simple. But it is easy to operate and learn. And it is also very stable.

      Why Choose ATC CNC Router?

      ATC CNC Router is one more advanced industry CNC Router but at affordable prices. If you’re looking for an efficient CNC Router machine, IGOLDEN CNC routers are an excellent choice. All our ATC Wood Routers allow you to increase the speed of production and improve the quality of your cutting and engraving, growing your business along the way. IGOLDEN Wood CNC Routers are excellent for making surf racks, shelf units, kitchen cabinets, skis and much more, our ATC CNC Router Machines are designed to make setup and programming effortless, all while giving you highly precise edge finishes.

      Within our ATC CNC Wood Router selection, you’ll find incredibly stable ATC CNC machines featuring one-piece steel frames. ATC CNC Router Machines are much more reliable than many CNC Router machines you find elsewhere at similar prices. In addition to a 12HP ATC Air Cooling electro spindle, which helps with long production cycles, each of our FORSUN CNC Routers also features a user-friendly control system that’s easy to learn and operate.

      Features and Advantages
      • This ATC CNC Router adopts a new generation bus controller system Syntec controller with better stable performance, Japanese YASKAWA AC Servo motor, and driver,  HSD air-cooled automatic tool change spindle from Italy, Delta inverter from Taiwan.
      • Automatic tool change system with 8, 12, and 16 tool magazines. Saving machining time compared with traditional machines.
      • Recommend automatic pusher function for this CNC Router Machine which can dock the automatic loading and unloading platform, reduce labor cost, and save loading and unloading time.
      • Intelligent processing of the out-of-bounds protection function prevents over-machining caused by mechanical collisions.
      • The ATC CNC Cutting machine can be equipped with an independent pressure roller, which effectively solves the problem of board moving when the machine is on cutting work
      • Applications of this ATC Wood CNC Router:  sofa keel cutting, wooden doors, cabinet doors, cabinet cabinets, mold industry, advertising industry, etc.
      • Competitive factory direct price and one year warranty.
