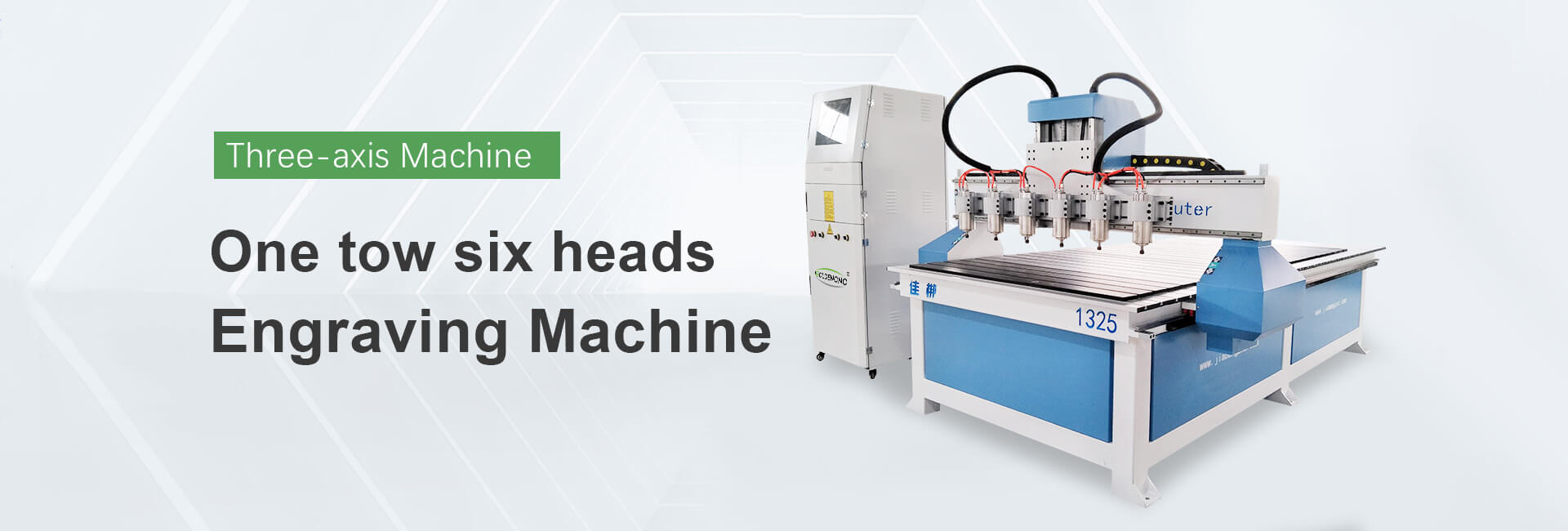

Four Head Woodworking CNC Router
Multi spindles Cnc Router Wood Carving Machine is specially designed for customers with batch production needs. 6 spindles work together to process 6 products at one time. It is mainly used in the furniture industry, decoration industry, musical instrument industry, mould industry, crafts industry, building model industry, advertising industry, etc.
3 axis CNC woodworking machineis mainly used in the furniture industry, decoration industry, musical instrument industry, mould industry, crafts industry, building model industry, advertising industry, etc.
Wood CNC Machine iGC-LT Video
![](https://www.jnigolden.com/wp-content/uploads/2022/06/1-23-300x251.jpg)
![](https://www.jnigolden.com/wp-content/uploads/2022/06/1-33-300x257.jpg)
![](https://www.jnigolden.com/wp-content/uploads/2022/06/1-2333-300x256.jpg)
![](https://www.jnigolden.com/wp-content/uploads/2022/06/1-2333_1本-300x261.jpg)
Multi Head CNC Router Machine Parameter
Technical Data
Description |
Parameters |
---|---|
Model |
IGW- 1325-1-6 |
Working size |
1300*2500*200mm(also customise) |
Spindle |
1.5KW *6 water cooling spindle |
Inverter |
Fuling inverter |
Motor |
Stepper motor |
Driver |
Stepper driver |
System |
NC studio |
Table |
Aluminum T slot table |
Rail |
Taiwan Hiwin X,Y axis25,Z axis 20 |
Transmission |
Gear rack |
Ball screw |
Z axis TBI ball screw |
Bed |
Thick welded big square tube |
Gangry |
Steel beam |
Cabinet |
Independent cabinet |
Voltage |
380V/220V |
We offer customized services according to your requests such as the working area and specifications.
Applications Of Multi Head CNC Router Machine
Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc.
Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel, literal-hole cut,lightbox mold,stamp,mould,etc.
Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
Multi Head CNC Wood Carving Machine Features:
-
This wood carving machine equipped with Solid gantry,well structure of lathe bed,stable and high speed,high accuracy.
-
Highspeed air cooling spindle and high performance subdivision driver ensure work stably for long time.
-
With easily-learned sofware,conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
-
Vacuum table with great absorption strengt,high efficient for mass production, cutting speed over 20m/min. Low vibration and smooth motion ensure higher work piece quality.
