CNC Machine for Small Business
A hobby CNC router is a mini machine tool kit for hobbyists in home shop and small business. It cuts the parts through the tool path generated by the CAD/CAM software working with the computer and the designed patterns. It is used for making signs, logos, numbers, letters, arts, crafts, molds with wood, MDF, bamboo, plywood, acrylic, plastic, foam, aluminum, copper, and brass.
Small CNC Machine
The small CNC router table sizes can be customized based on your working requirements, allowing for options of 2×3 (600x900mm), 4×4 (1200x1200mm), 4×8 (1300x2500mm), 5×10 (1500x3000mm) and 6×12 (2000x4000mm).

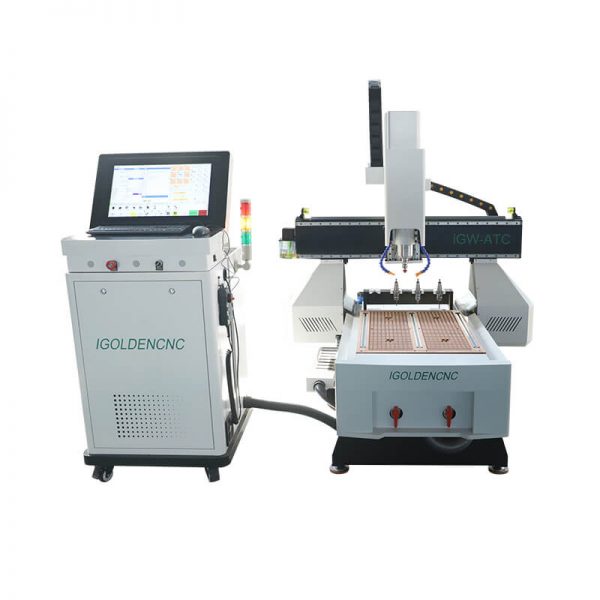

Small CNC router with ATC
Small CNC Machine Parameter
| Model | iGW-ATC6090 |
| Working area | 600*900*300mm |
| Spindle | 3.2kw water-cooled tool change spindle |
| Control system | LNC |
| Motor drive | DORAN |
| XYZ axis guide | Hiwin |
| Rack | Xinyue |
| Z axis lead screw | TBI |
| Reduction | SHIMPO |
| Inverter | Fu Ling |
| Table | Vacuum suction can suck and clamp the countertop |
| Vacuum pump | 5.5KW air-cooled vacuum pump |
| Tool change | 4 tools in the back row |
| Voltage | Single-phase 220V 50HZ |
If you need more detailed information, please inform us as soon as possible.

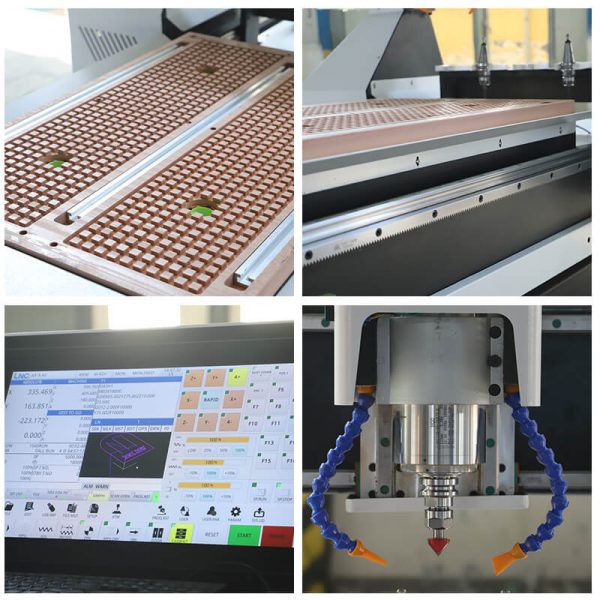

3.2kw water-cooled tool change spindle
Automatic tool change tool library
Taiwan HIWIN rail and Xinyue rack
LNC control system
Vacuum suction can suck and clamp the countertop
Lock seat
Rotary Axis(Options)
We can add the rotary device for you. It is used to process cylinder material to make table legs, chair legs, molds, 3D model, 3D reliefs, signs, furniture, toys, decoration items, simple molds, musical instrument, etc.
Features of Small CNC Wood Router
1. The spindles have water-cooling or air-cooling for different usage, If you need to cut aluminum, it is better to use a water-colling spindle. If only for woodworking, the air-cooling spindle is better.
2. The CNC control systems have a Taiwan Syntec controller, DSP controller, and Mach3 controller, it depends on the price and functions.
3. T-slot table and vacuum table for choice.
4. Welded structure by thick square steel stabilized under high temperature, ensures minimum distortion, excellent rigidity, and powerful strength.
5. Automatic lubricating system, one touch can finish periodic maintenance easily.
6. Internationalized directives ensure that it is compatible with CAD/CAM software like Type3, Artcam, Castmate, Proe, UG, and Artcut.
7. Linear automatic tool changer system with 4 tools storage.
Application
Hobby CNC Router 6090 FAQ
The hobby CNC machine is mainly used for engraving and milling of PVC, acrylic, two-color board, plastics, bakelite, solid wood, and soft-metal materials like graphite electrode processing. And it is also suitable for engraving PCB circuit boards, model molds, crafts, plastic boxes with limited specifications, aluminum alloy chassis, openings in the panel. Besides that, it also can do some processes like 3D engraving, drilling, and milling of metal materials such as aluminum alloy and copper.
Advertising industry: Hobby CNC router can process double-color plate lettering, signage making, PVC cutting, billboard making, mini word, and light word cutting, etc. And it can also do advertising signs, acrylic cutting, blister molding, logo production, and production of advertising products with multiple materials.
Woodworking industry: This hobby CNC router can make three-dimensional wave board processing, screens, cabinet doors, craft wooden doors, solid wood doors. And it can also do paint-free doors, craft fan window processing, shoe polishers, game machine cabinets and panels, mahjong tables, computer tables, and panel furniture processing.
Mold industry: This mini CNC router can engrave metal molds such as copper, aluminum, iron. And it can also process non-metal molds such as artificial marble, sand, plastic plates, PVC pipes, and wood panels.
Craft gift industries: It can engrave all kinds of large-scale reliefs and shadow carvings in the craft gift industry.
Metal products’ industry: Hobby CNC router can do copper and aluminum hollow cutting and engraving. And it mainly includes rail transit, electrical appliances, electric cabinet boxes, vehicles, curtain walls, architectural decoration, hardware products, aluminum parts.
Mold industry: mini CNC router can also process copper electrodes, punches, stainless steel badges, bronze medals, wax molds, etc.
Customers should choose the model and power of their hobby CNC router according to their business needs and financial status. The common processing sizes of small CNC machines include general small-format engraving machines such as 600 mm×600 mm, 600 mm×900 mm, and 120 mm×120 mm. Engraving two-color plates are the most basic application of small CNC machines. And it has good acceptance.
Large-format hobby CNC router machines include 1200 mm×1200 mm, 200 mm×1500 mm, 1500 mm×2400 mm, 2400 mm×3000 mm. And the feed width of the above models is more than 1350 mm. The size of plexiglass and PVC boards on the market are 1300 mm×2400 mm. Therefore, these models are more suitable for customers who need large-format hobby CNC router.
The ATC CNC router machine is composed by different modulars, such as structure, driving system, transmission system, cutting system, HSD CNC router tool changer spindle, nesting software & control system, etc. So, the price differs much depending on actual requirements and configurations. Generally, the ATC CNC router price ranges from $11,000 to $30,000. Besides, some extra charges & fees will have to be taken into consideration for overseas customer, including shipping costs, tax, customs clearance, etc. If you want to buy cheap cnc plasma cutter, please feel free to contact us for price detail.
