Glass Milling Drilling Edge Grinding Polishing Machine

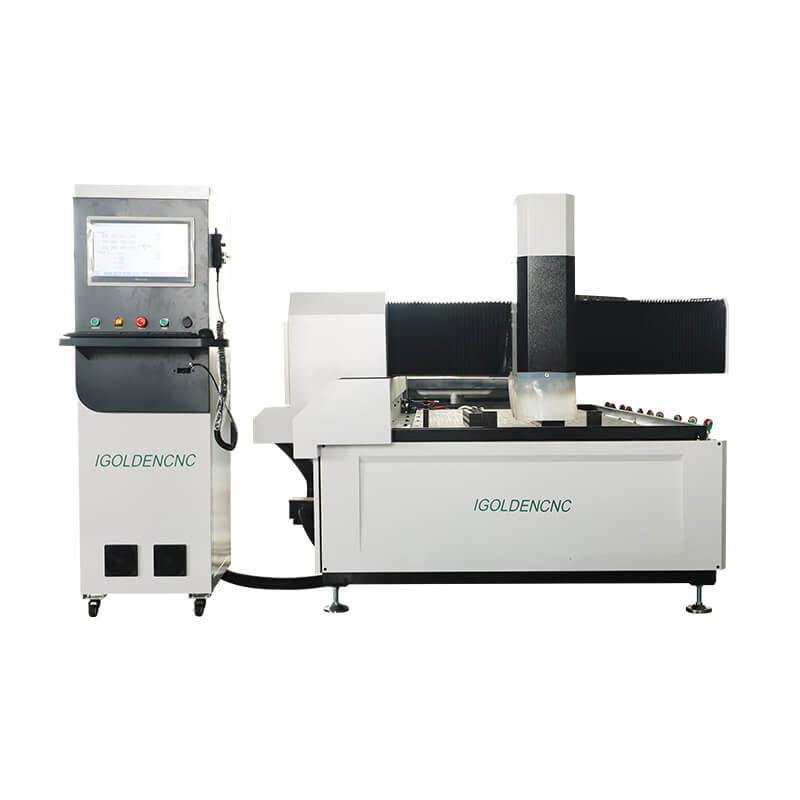

CNC Glass Edge Grinding Milling Dilling Machine

iGA-M CNC glass machining center is a combination of glass edge grinding, chamfering, polishing, drilling, and milling. Specially designed for grinding from the inside or outside, the equipment features simple operation and applies to machining automotive glass, home appliance glass, furniture glass, shower room glass and mirrors of all descriptions. It is aimed at automating production and thus improving the competitiveness of enterprises.

Equipment design is compact, precision assembly, using large inertia servo motor, industrial control system, constant power high-speed electric spindle, three axes are using high-precision rack transmission suitable for high-speed, low-speed and other cutting processing. It has the characteristics of high processing accuracy and stable operation, focusing on the milling forming of specific shapes, such as simple or more complex contour processing such as straight lines and curves, and is usually more focused on shape processing.

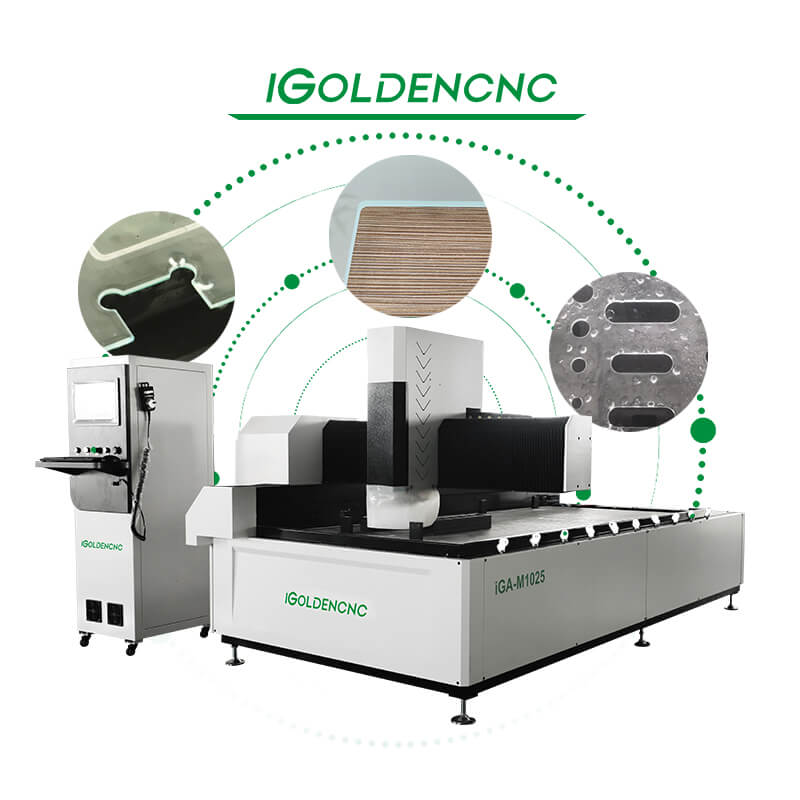

CNC Glass Cutting Edge Polishing Dilling Machine

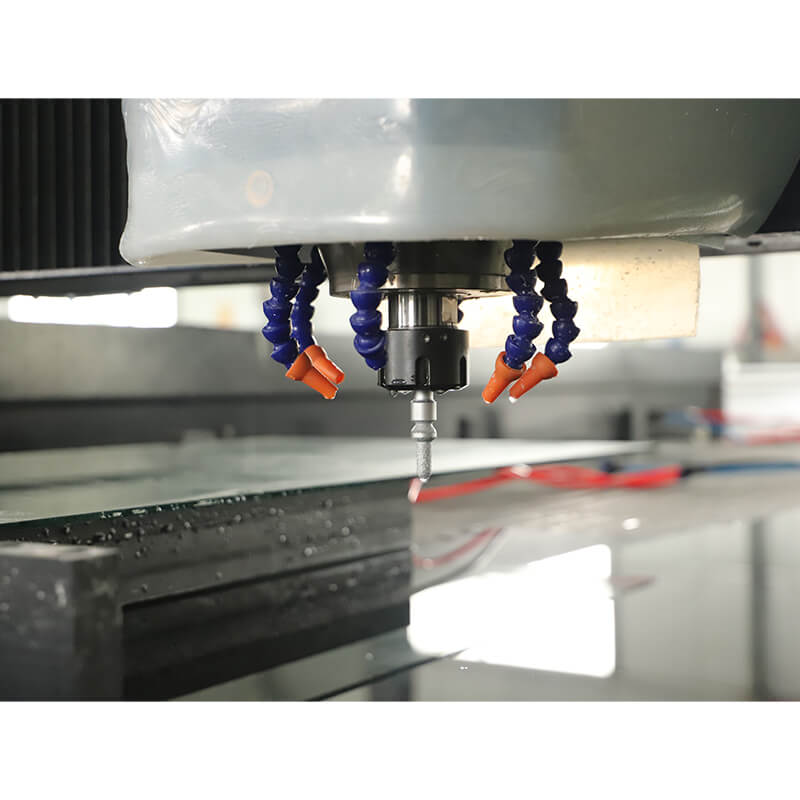

7.5KW water-cooled main shaft

The use of powerful high-power spindle, cutting force, high efficiency, water circulation cooling, good heat dissipation, smooth and fast operation.

Professional glass operating system

Professional control system, fast and smooth processing, can be cut, drilling, hinge, shaped cutting, edging, glass polishing and other processing.

Loading and unloading rollers

Aluminum alloy cylinder, hard oxidation, good sealing effect, high efficiency, reliable positioning, long service life.

Glass adsorber

Standard: 2 vacuum adsorption plates +2 circular suction cups, high vacuum, large suction.

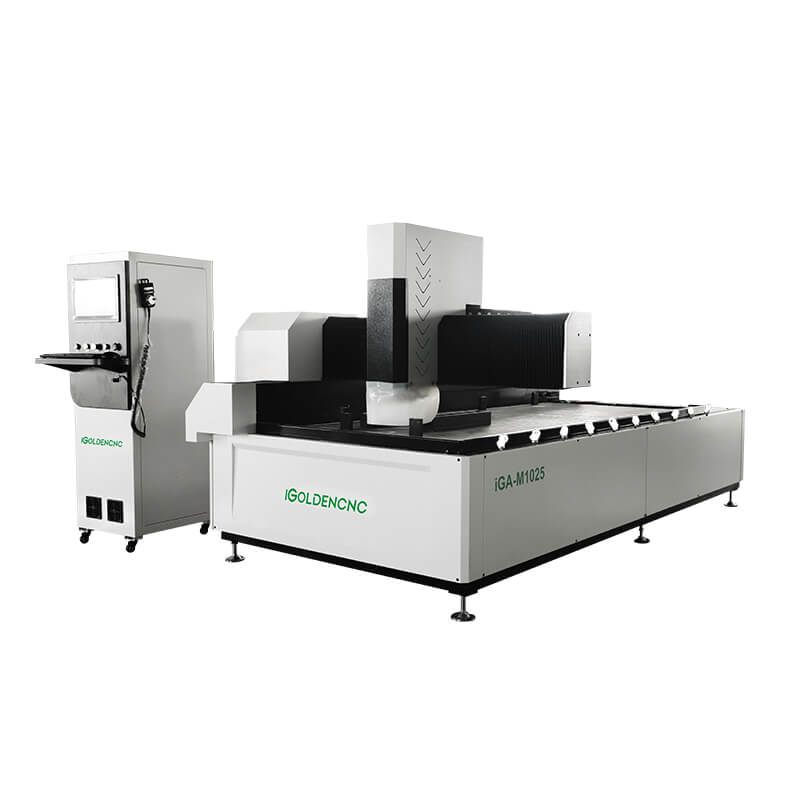

CNC Glass Cutting Dilling Machine

Technical indicators	parameter
Model	iGA-M1025
Work trip	1000mm2500mm200mm
Overall dimension	1900mm3600mm1600mm
Weighted bed	Thick wall square pipe welding
Control system	Glass drilling and milling special system
Spindle	7.5kw drilling and milling special spindle
Spindle speed	0-24000 rpm
Machining thickness	3-19mm
Frequency changer	Bester inverter
Drivers and motors	DORNA servo motor (X-axis Y-axis 1.5KW, Z-axis 750W with lock)
Work surface	3mm steel plate +25mmPVC plate
Reduction gear	SHIMPO
Rack	High precision grinding rack 1.5m
oiling	Manual oiler
Repeated positioning accuracy	0.025mm
Glass fixing system	Standard configuration：2 vacuum adsorption plates +2 circular suction cups
Operating voltage	380V
Loading and unloading	Auxiliary pulley
Electrical component	Omron

Benefits of CNC Glass Cutting Centre

1.This machine can perform rough machining and finishing of hard and brittle materials, and is especially suitable for Automobile, machinery and other industries,efficient and large-scale processing of glass, rock slabs and ceramics,high-precision processing.

2. This machine can also process other materials by replacing the cutting tools.

3. This machine is also suitable for small and medium-sized batches of plate-shaped and special-shaped materials.

4.The processing scope of the machine should be determined based on the machine specifications and its technical parameters. Processing beyond machine specifications and permitted parameters is prohibited.

5.For the processing range of the machine,please refer to the technical parameters of the machine tool.

Cnc Glass Cutting Machine Application

Cnc Edging Polishing Milling Glass Cutting Machine ,Drilling, Milling, Internal and External grinding and polishing, Writing, Shaped Notching, Engraving on glass、Marable, stone, quartz and so on.

1. Edging and polishing of electrical panel glass.

2. Electronic scale glass3. Furniture glass.

4. All kinds of special-shaped glass edging and polishing.

5. Various shapes of tea table glass and tea table rock slabs, various edge grinding.

6. Glass round table edging.

7. Cupboard glass door panel, wardrobe door panel edging.

8. Edging and polishing of hood stove panel.

9. Induction cooker glass ceramic edging

10. Glass edging for cars.
