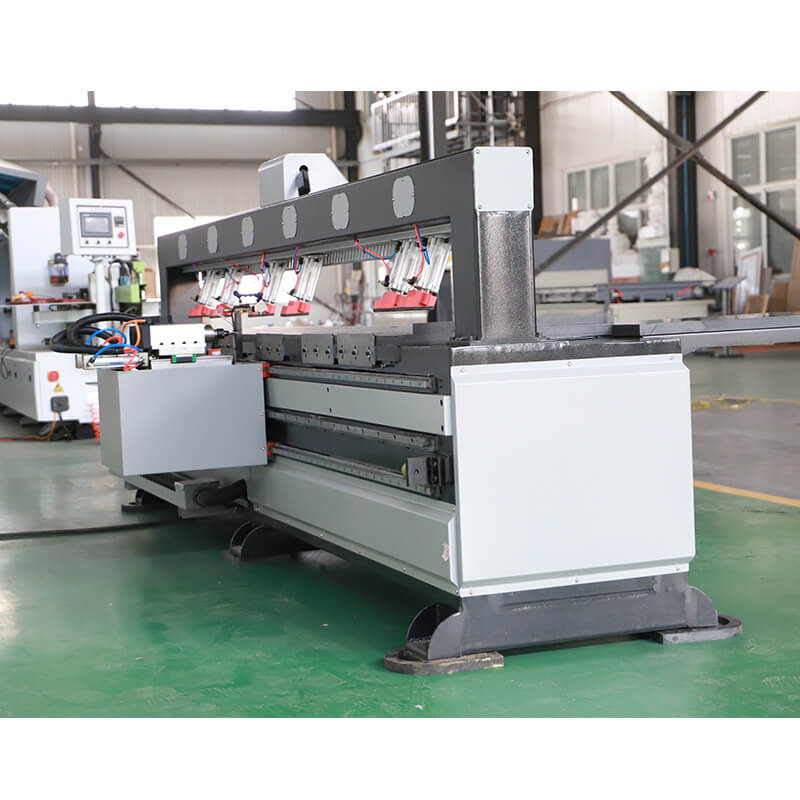

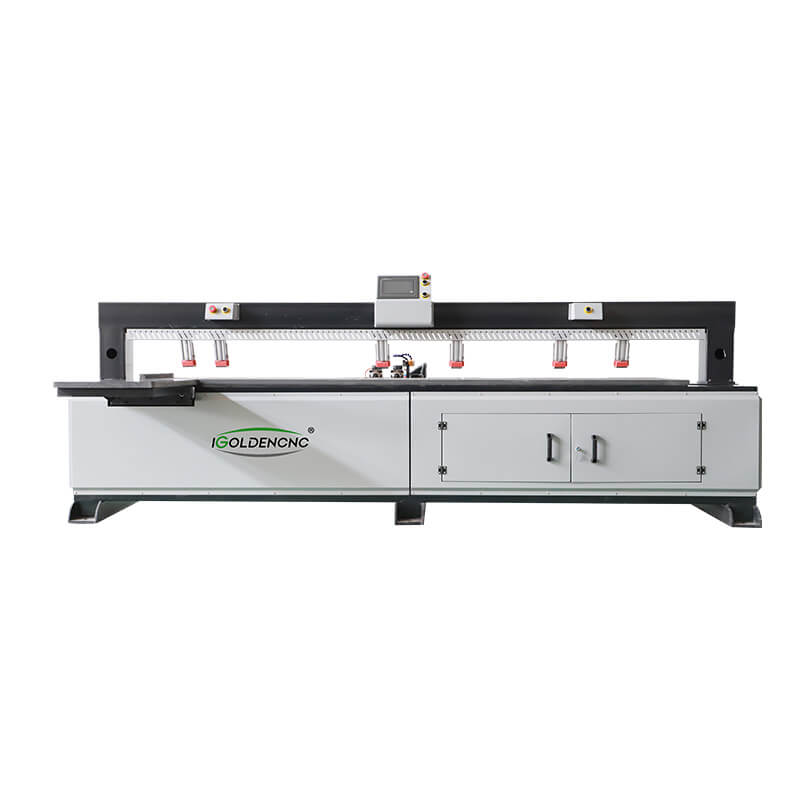

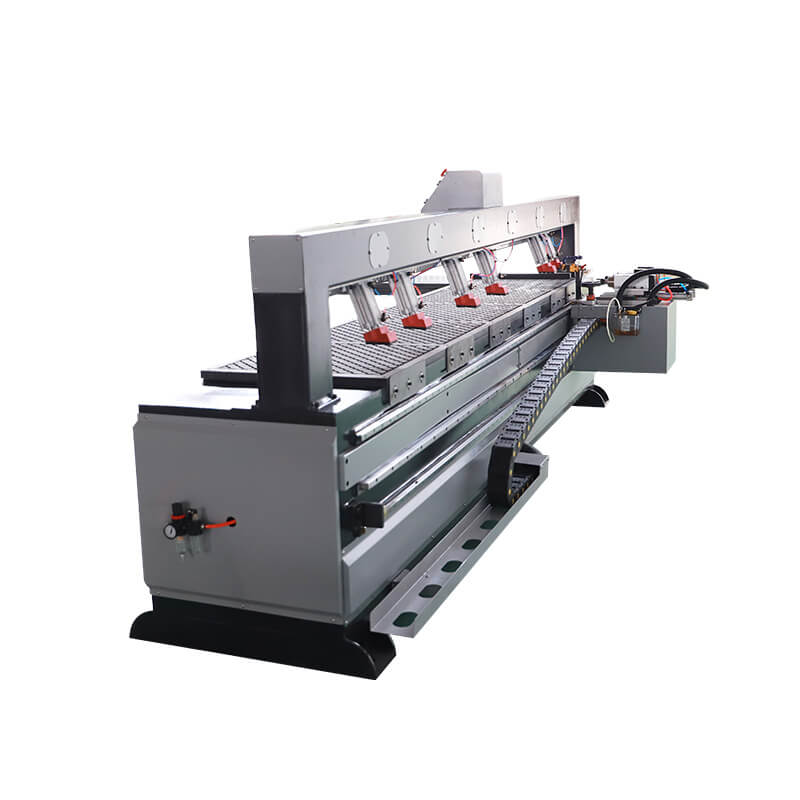

Double Spindle Side CNC Drilling Machine
The Side CNC Boring Machine for Wood Furniture Making, or side drilling machine is a practical numerical control equipment for plate furniture. It is mainly used to solve the problem that the CNC nesting machine cannot punch or boring side holes, and the precision of ordinary pneumatic row drills is not high, and needs repeated positioning.
Infrared laser side hole CNC drilling machine is an economical and practical horizontal hole drilling equipment for panel furniture. It is an automatic production equipment that uses laser head induction to solve the side hole punching and slotting of fixed plates. This side hole punching machine is a fully automatic side hole punching equipment developed for the side holes of triple pieces of panel furniture. PLC integrated control is stable and efficient.
The double-spindle side hole machine supports the invisible part process, and can scan the code for drilling and laser positioning and drilling.
The machine is equipped with a US Banner laser probe, which can achieve 100% leak-free punching. High-power spindle, servo motor. XY adopts high-precision Taiwan rack, guide rail adopts Taiwan silver or PDF, adopts high-flexible shielded wire, and fully enclosed drag chain.
The bed is heavier, and the front end adopts a unique “L” shape design, which is suitable for processing long and short boards.
ATC CNC Router Video
Side CNC Drilling Machine Parameter
| Model | iGC-SD |
| Spindle | HQD2.2KW air-cooled spindle *2 |
| Drive | Servo 750W motor drive |
| Control system | PLC control system |
| Laser | BANNER laser |
| Rack | XY axis Taiwan high precision crescent helical rack |
| Guide rail | Taiwan Hiwin square rail or Taiwan PDF square rail |
| Screw | Taiwan TBI high-precision wear-resistant screw |
| File format | G code |
| Working voltage | 380V/50HZ |
| Frequency converter | Fuling |
Wood CNC drilling machine is a better choice than hand drill machine, safe, efficient, precise.
“L” design
The bed is heavier, and the front end is unique “L”-shaped design, aiming at the processing of long plates and short sides.
Dual-spindle design
Dual servo system, Y axis servo drive laser sensor scanning hole, Z axis servo drive tool drilling and grooving.there are multiple modes to choose from, improving processing efficiency
BANNER laser probe
Adopting American Bonner laser probe, it has the features of high drilling accuracy 100% leak-free drilling.
Full cylinder operation
The compaction of the whole machine is full cylinder operation, which is easy to operate. Interval positioning piles are suitable for plates of various sizes.
Sided Drilling Machine Application
Side Drilling Machine Drilling Machine is suitable for processing many kinds of board materials such as density board, particleboard, artificial board, solid wood board, plexiglass, PVC board, ABS board for board furniture, whole cabinet, wardrobe, customized furniture, office furniture that need to be punched.invisible parts processing and other functions of solid wood board, fiberboard, particle board and other board workpieces.
