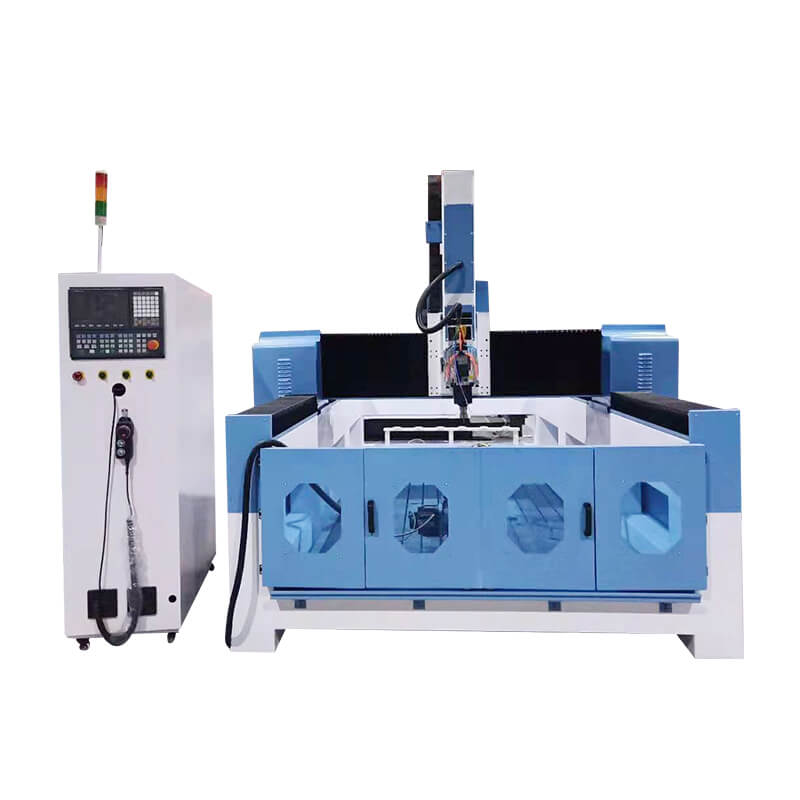

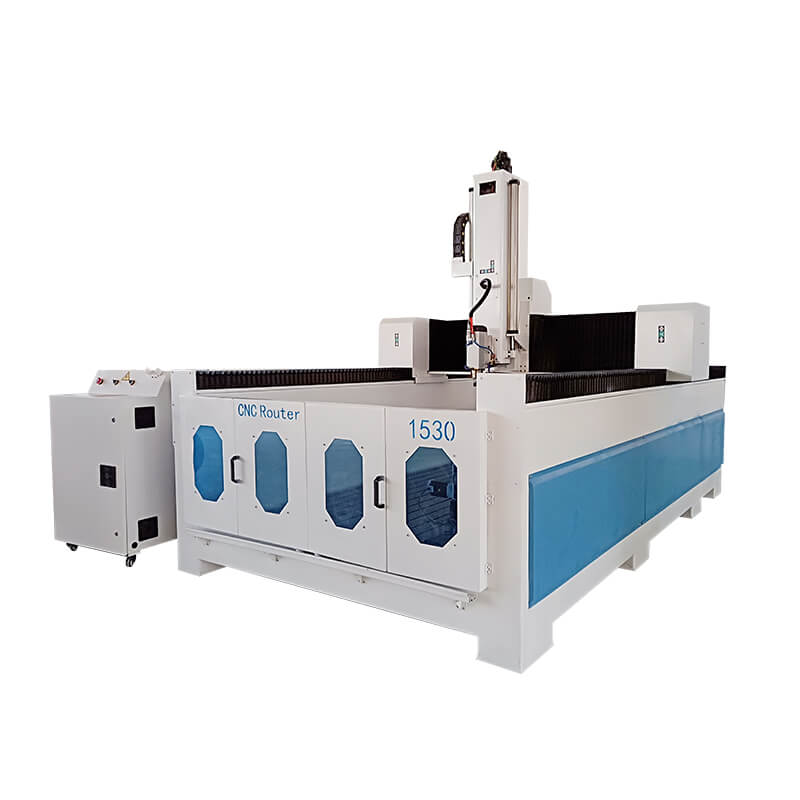

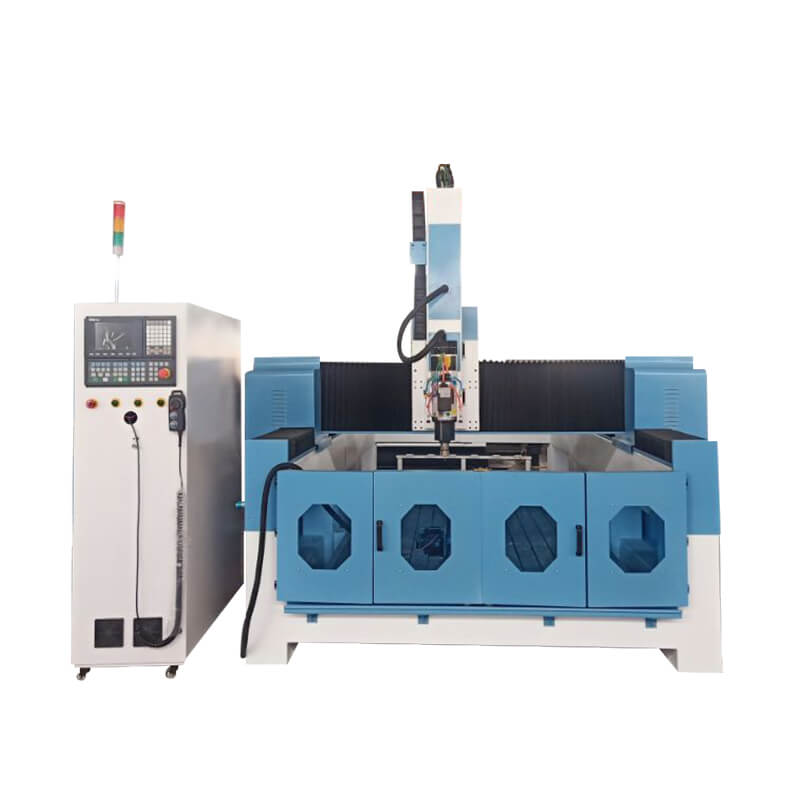

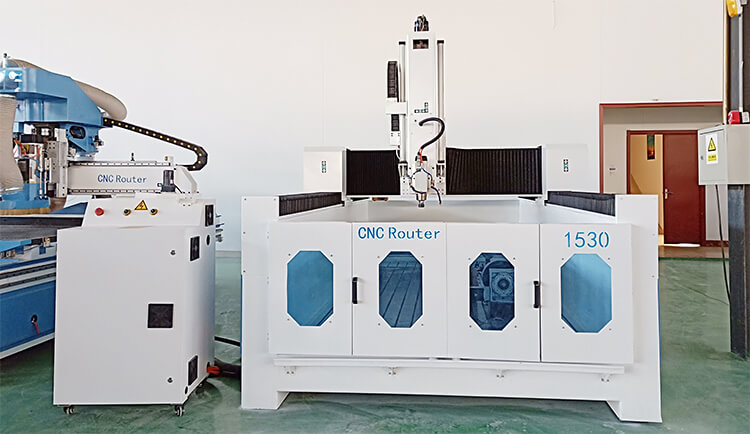

1530 3D Foam Cutting Carving Machine for EPS, Styrofoam, XPS
This is a professional CNC router foam cutting machine, it is designed for processing soft materials such as foam and EPS. As CNC router for foam cutting, it has a heightened z-axis and can process various sizes of foam. It is equipped with various good-quality and high-performance parts to guarantee stable and precise processing. It is used to process many different kinds of materials like carbon fiber, fiberglass, wood, MDF, polyurethane, foam, stone, plastic, etc. In general, it is an ideal choice for mold industries, furniture industries, bathroom industry, etc.
Like other foam CNC Machine, this type of foam engraving machine was designed with linear tool change magazine. Various of tools can be changed automatically in the engraving process, which means time saving.
3d Cnc Foam Cutting Machine Video
Introduction
The 4 axis machining centre at a good price, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations. Therefore it may be your better choice to process some foam products.
CNC Machining Center Parameter
| Model | iGW-MC-1530 |
| Working area | 1500*3000*800mm |
| Transmission | X/Y rack and pinion, Z ball screw |
| Table structure | Aluminum profile |
| Spindle power | HQD 9KW |
| Spindle speed | 18000rpm/min |
| Travelling speed | 45m/min |
| Working speed | 30m/min |
| Working Delicacy | 0.02mm |
| Repositioning Accuracy | 0.03mm |
| Driver motor | Servo motor |
| Control system | DSP/Nc studio /Syntec |
| Voltage | 3 Phase/380V/50HZ |
If you need more detailed information, please inform us as soon as possible.
Linear Automatic Tool Changer
With the function of linear automatic tool changer, it make the whole processing more time-saving and more efficient.
Air Cooling Spindle
Equipped with HSD air cooling spindle with imported bearing, it has many advantages like long service life, low noise, and strong cutting ability.
Control System Optioned
Taiwan LNC system is the standard system.
Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

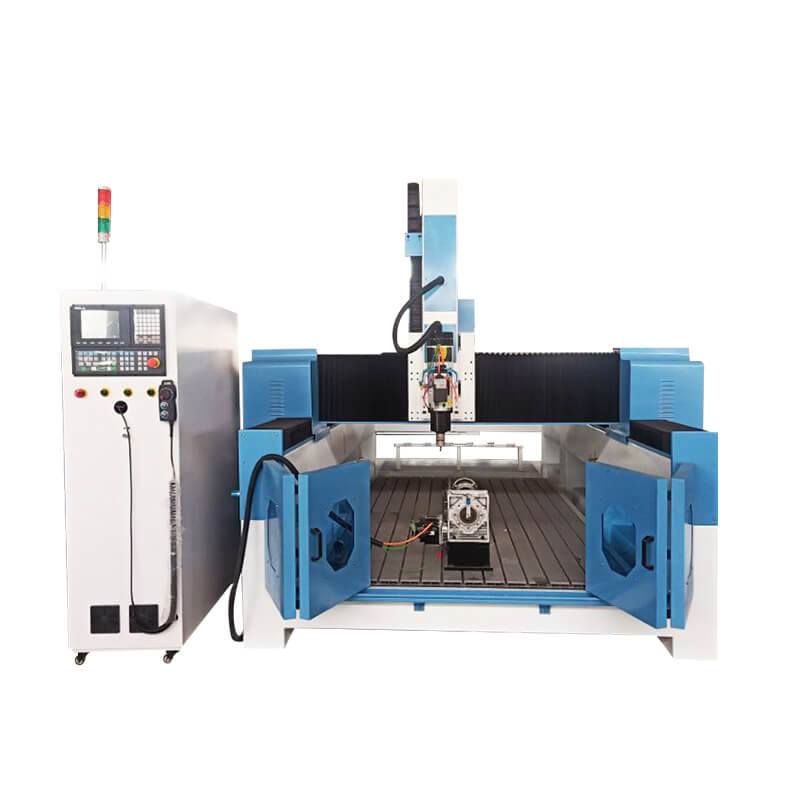

Worktable Rotary Device
The worktable rotating device specially designed for sinking worktable has a thimble structure at both ends.It can process materials with a diameter of 800-1000, the length is optional, generally according to the bed size.
Eps CNC Router 4 Axis Machining Centre
Hot applications include:
Carving all kinds of non-metal materials processing such as foam, lost foam, automobile foam mold, yacht mold, large ship wooden mold, cast wooden mold, engineering plastic materials, aviation wooden mold, propeller, train wooden mold, etc.
>Foam processing of automotive stamping molds, casting wood molds, automotive interiors, processing of engineering plastic materials;
>Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, three-dimensional curved surfaces for large musical instruments, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, etc.
Contact Us Today to Get Price!
Advantages Of 4 Axis EPS CNC Router Machine:
1. Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
2. Italian high-speed spindle, with top speed of 18000rpm, guaranteering maximum processing efficiency and productivity.
3. It adopts imported ball bearing, widening linear guide rail, self-lubricating sliding block. When engraving, equal force in all directions, to ensure the accuracy and strength.
4. Taiwan Syntec controller can read the codes in an efficient manner. On-line simulation and monitoring function are available. Processing efficiency and safety are guaranteed.
5. All of these models can be customized according to customer requirements.
Applications Of 4 Axis EPS CNC Router Machine:
4 axis EPS CNC router machine can work on aluminium mold, wooden mold, EPS and non-metallic carbon materials, automotive foam mold, aviation mold, trains mold, 3D musical instruments, bumper, bonnet interior trim mold.
Hand-tool working greatly affects the efficiency and quality of mold making. CNCs have the advantages of uniform margin, fast processing speed, and high processing quality, this CNC foam cutting machine is widely used in many industries, which not only improves the quality of mold castings but also shortens the mold production cycle.
- Enquiry. Feel free to tell us what material you want, what is your max working size and what product you want to do. The budget is also welcome.
- Free Quotation provided. We will send our quotation sheet with machine configuration, photos, videos and prices to you according to your request.
- Launch the order. Your company will arrange the deposit, and we start the CNC foam cutter machine production from 3D design, CNC foam cutter machine body welding, machining, painting spare parts preparing, manufacture and inspection.
- Testing sample video and delivery. After our manufacture and inspection, we will make a final video of the CNC foam cutter machine working to you. After the confirmation, the CNC foam cutter machine will be shipped by sea through my or your agent.
- After-sale service. We will provide a video teaching program to tell the customer how to use or install our CNC foam cutter machine. And my service team will 7*24 hours online to answer customer questions.
- Feedback. We are expecting feedback from our customers. Please tell us how you feel about CNC foam cutter machine quality and service. If you have more ideas to help us improve, that will be very appreciated.
