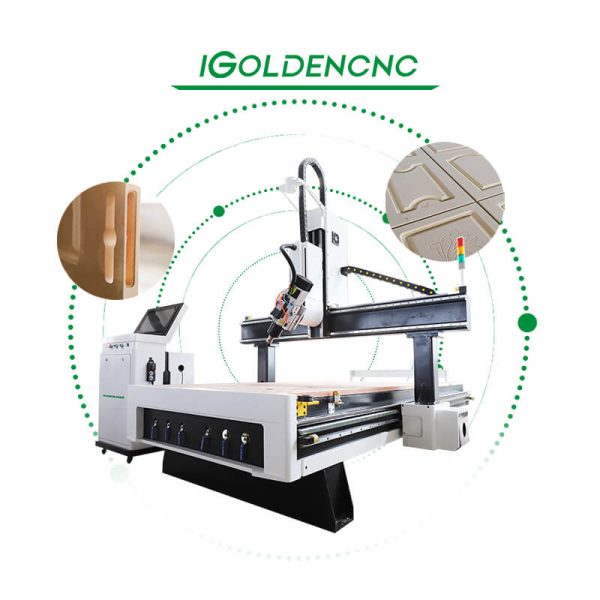

4 Axis CNC Wood Router
4 axis CNC router is suitable for making sofa, doors, cabinet making. With side carousel auto tool magazine, it is fitful for 3D carving and engraving wood furniture. There are also dust covers for rail guide protection. And the vacuum table helps fix materials on the table.

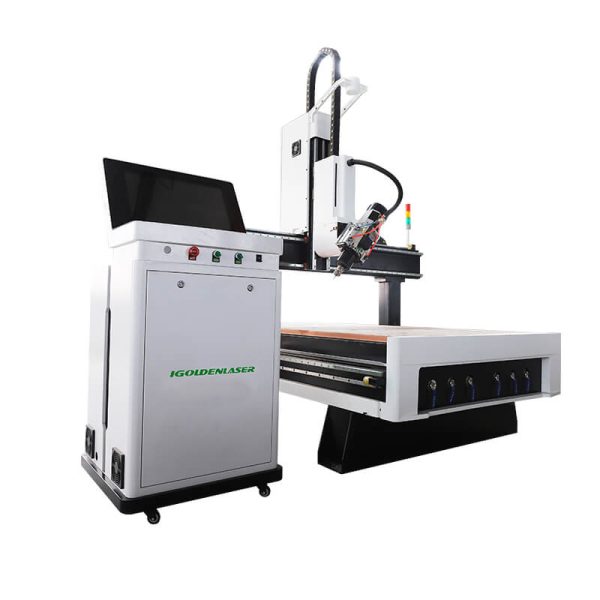

ATC 4 Axis CNC Wood Router
ATC 4 Axis CNC Wood Router combines advanced automation with multi-axis machining capability, making it one of the most powerful machines for furniture production, cabinet making, door carving, and 3D woodworking.Compared with traditional CNC routers, a 4 axis CNC router with automatic tool changer (ATC) offers higher productivity, faster processing speeds, and the ability to perform complex curved surface machining.
A 4 Axis CNC Router with Swing Head is a CNC routing machine that controls motion along three standard linear axes — X, Y, and Z — plus a fourth axis of angular rotation that tilts the cutting spindle from its standard vertical orientation to angled positions across a defined angular range. This tilting motion is provided by a swing head mechanism — a motorized assembly that rotates the spindle housing around a horizontal axis, swinging the router bit from vertical (0°) to a specified maximum tilt angle, typically 90° or beyond depending on the machine configuration.
Complex & Efficient Cutting: Perfect for producing intricate 3D contours, angled cuts, undercuts, and detailed designs on components such as furniture legs, moldings, sculptures, and decorative panels.
Wide Application Range: Capable of milling, drilling, cutting, grooving, and shaping on diverse materials, including wood, MDF, plywood, acrylic, aluminum, and other soft metals.

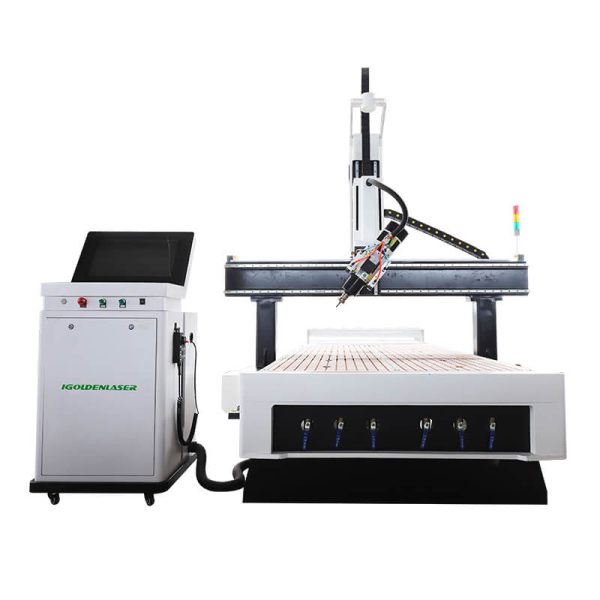

4 Axis CNC Router
Specifications
| Parameters | 1325C-4 axis |
| X,Y,Z Working Area | 1300*2500*250mm |
| Spindle Power | 9kw HQD air cooling spindle ±90° |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/2000mm |
| Table Surface | Vacuum table+Intergrated T-solt table clamping System |
| X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
| Max. Rapid Travel Rate | 80m/min |
| Max.Working Speed | 60m/min |
| Cutting thickness | According materials |
| According materials | 6000-24000RPM |
| Drive Motors | Japanese Yaskawa Servo Drive System |
| Working Voltage | AC110V/220V/240V/380V/400V, 1P/3P, 50HZ/60HZ |
| Command Language | G Code |
| Operating System | Taiwan Syntec 60WE control system |
| Interface | USB |
| Software Compatibility | Option:VCarve/VCarve Pro/ArtCAM/UCANCAM,etc. |
| Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
| Vacuum pump | Oil free pump 5.5Kw |
| Air pump 5.5Kw | |
| CAM Software | VCarve/VCarve Pro/ArtCAM/UcanCAM,etc. |

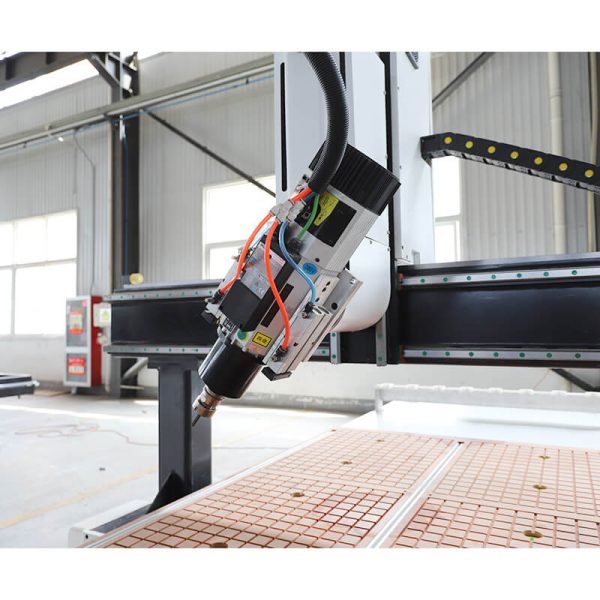

HQD 9KW air-cooled spindle+Spindle swing
High rotary precision, small vibration, durable, long life.
Straight line tool change library
The number of knife storage can be increased according to different processes.
Vacuum adsorption table with T – slot
Vacuum adsorption table, strong adsorption force, each area can be controlled separately; In addition to T slot, for different materials processing more convenient.
21 inch touch screen
IGOLDENCNC independent cabinet, upgraded to 21 inch touch screen, humanized design, Taiwan new generation system, easy to operate.
4 Axis CNC Router Machine 4×8 ft Application Solutions
Furniture ManufacturingThe machine can produce:
|
Wood Door IndustryManufacturers use CNC routers to create:
|
Architectural DecorationIt is also used for carving:
|
3D Wood CarvingThe 4th axis allows production of:
|
Contact Us Today to Get Price!
A 3 axis CNC router moves in X, Y, and Z directions, while a 4 axis CNC router adds rotational movement. This allows the machine to carve cylindrical objects and complex 3D shapes.
ATC stands for Automatic Tool Changer. It allows the machine to automatically switch between different cutting tools during machining without manual intervention.
A 4 axis CNC wood router can process materials such as solid wood, MDF, plywood, acrylic, PVC, foam, and composite panels.
Most ATC CNC routers can hold 8 to 12 tools, depending on the tool changer system.
Yes. It is widely used in the furniture industry for producing table legs, chair legs, decorative panels, cabinet doors, and other complex components.
The price usually ranges from $8,000 to $30,000, depending on machine size, spindle power, control system, and ATC configuration.
