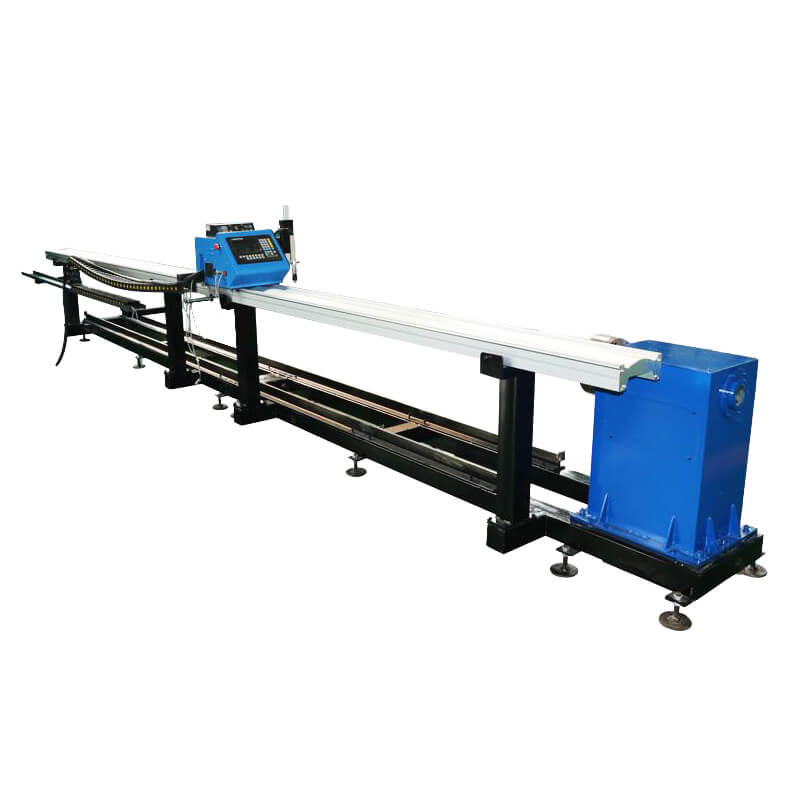

Plasma And Flame Cutting Machine
The intersecting line cutting machine is suitable for cutting cylindrical orthogonal, oblique, eccentric and other phase inertial holes, square holes, elliptical holes on various pipes, and can cut the intersecting phase inertial lines at the end of the pipe. This type of equipment is widely used in the production of metal structural parts, power equipment, boiler industry, petroleum, chemical and other industrial sectors.
Plasma And Flame Cutting Machine Video

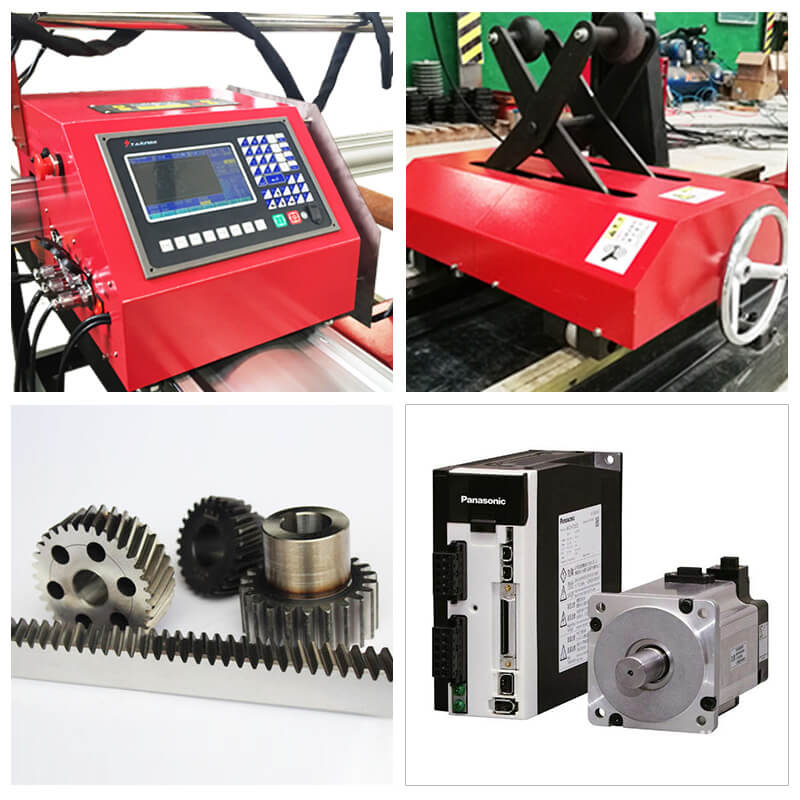

Portable host, easier to operate and more practical
Bearing seat, high precision, good wear resistance
Chuck Base
The chuck adopts 250# three-jaw chuck, and the support seat track adopts 24KG/M fine grinding track.Higher precision, better cutting quality and greater bearing capacity.
Advanced Plasma Power Supply
It adopts China’s well-known industrial brand Huayuan industrial plasma power supply.
Precise cutting, no burrs, and small bevel.
Energy-saving, low consumption, more stable performance.
STARFIRE control system +Arc voltage height controller
Digital control, easy to learn and operate, anti-high frequency electromagnetic interference, stable performance.
CNC Plasma and Flame Cutting Machine Application
The CNC Pipe and Tube Cutter can cut mild steel, stainless steel, aluminum, brass, and copper pipe and tube. If it will conduct electricity it will cut.
The development of special intersecting wire cutting machine. The intersecting line cutting machine is suitable for cutting cylindrical orthogonal, oblique, eccentric and other phase inertial holes, square holes, elliptical holes on various pipes, and can cut the intersecting phase inertial lines at the end of the pipe. This type of equipment is widely used in the production of metal structural parts, power equipment, boiler industry, petroleum, chemical and other industrial sectors.
CNC Intersection Cutting Machine Parameter
Technical Data
| Item | Parameter |
| Effective cutting range of length (mm) | 3000mm |
| Effective cutting range of pipe diameter (mm) | Ф30mm～Ф320mm |
| Input voltage | 220±10%V AC 50HZ/60HZ 220W |
| Total power | 约2000W |
| Rated rotational speed | 0-15rpm( Custom ） |
| Reset accuracy | ±0.2mm/m |
| Tube Ovality | ≤2% |
| Running accuracy | ±0.2mm/m |
| Number of CNC controlled axes | 2 axis |
| Chuck size | 250# |
| Torch lift stroke | 180mm |
| Maximum Tube Weight | 约1000KG |
| Plasma cutting thickness (take LGK-120A as an example) | ≤16MM |
| Flame uses gas form | Oxygen+Acetylene/Oxygen+Propane |
| Gas pressure | ≤0.08MP |
| Oxygen pressure | ≤1.0MP |
It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.

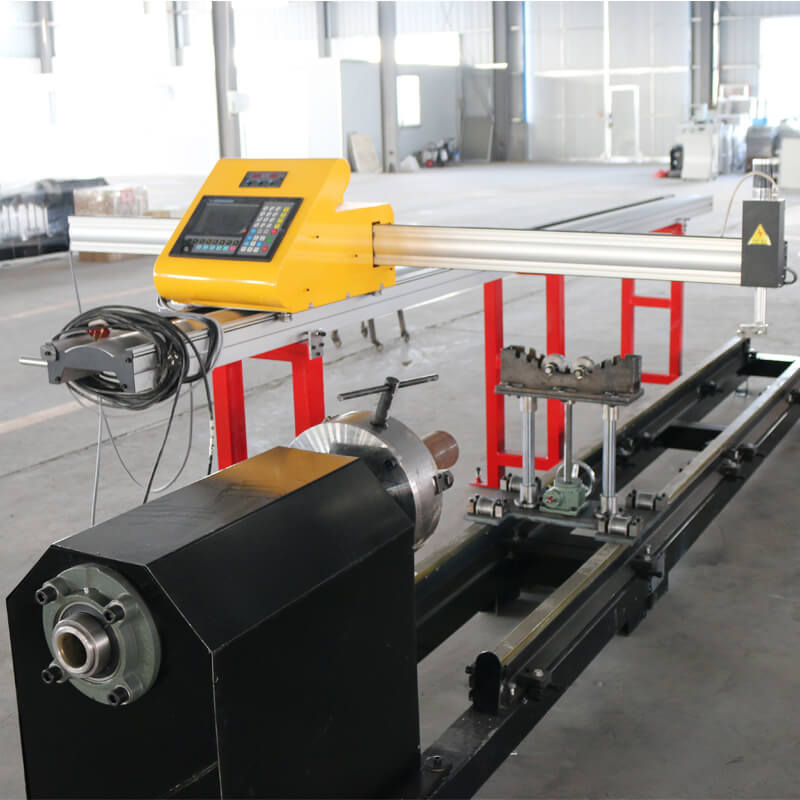

Production Workshop
