Automatic Loading and Unloading CNC Machining Center
The machining center is equipped with saw blade spindle, linear tool changer, and automatic loading and unloading platform. It can ensure high productivity, high processing precision and low labor cost. Moreover, it adopts Taiwan helical rack and Taiwan TBI ball screw, which improve the processing precision and prolong the service life of the machine. It can be used in the production and processing of various wooden doors, plastic doors and cabinet doors.
ATC CNC Router Video

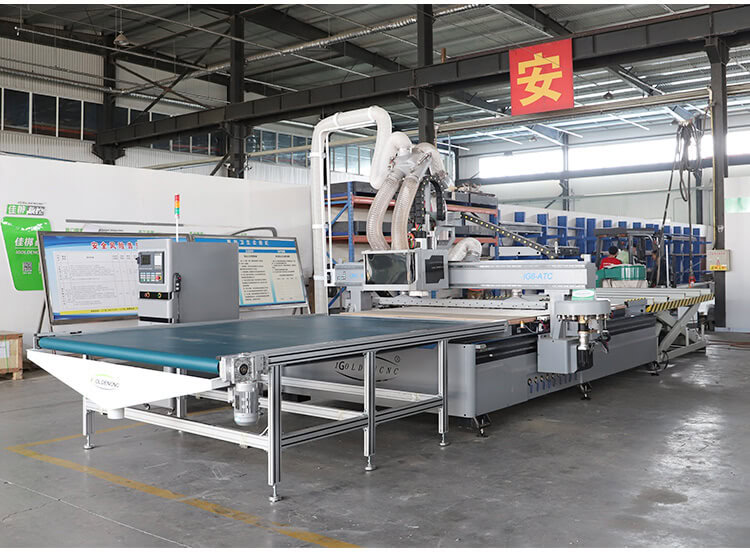

Automatic loading and unloading platform
Auto feeding materials, automatic layout optimization, improve material utilization. Save working time: Automatic feeding, save the time of labor, no human intervention, minimizing error rate to minimum, ensure the quality of the order.

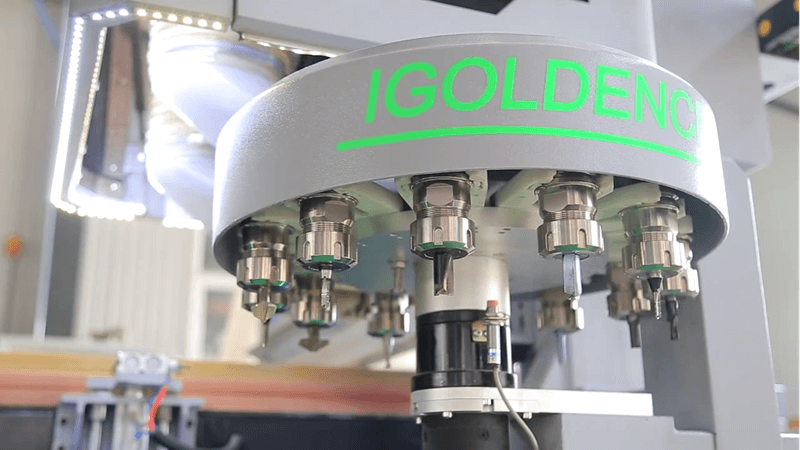

With 12 high-speed disc tool magazines, tool change can be completed within 8 seconds, which effectively improves production efficiency.
Press material + push material + vacuum adsorption table
HSD Air cooling 9kw ATC spindle
HQD 9 holes vertical drilling unite (4+5)

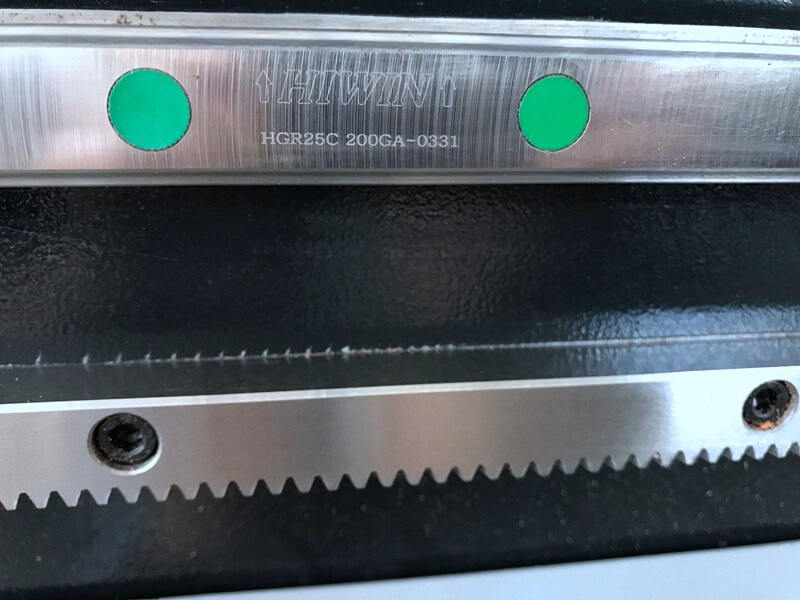

Taiwan high precision rack + HINWIN guide rail
Tube welding bed
More stable and effectively improves the rigidity and precision of the equipment.Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
SYNTEC 60-WE Control System
New and clear interface, plus faster and easier operation
The dust collector system adopts negative pressure working mode.
CNC Machining Center Application
>Production and processing of various types of furniture:Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
>Wooden door and furniture decoration industry: solid wood and composite door, cabinet door, large-area plate carving, solid wood, panel furniture carving, solid wood art mural carving, etc .;
>Wood products processing: clocks, electrical countertops, sporting goods and equipment;
>Musical instrument industry: three-dimensional curved surface and shape cutting of sculptable musical instruments;
>Crafts industry: photo frames, jewellery boxes.
CNC Machining Center Parameter
Technical Data
XYZ working area | 2100*2800*300mm |
Spindle | Italy HSD brand Air cooling 9kw ATC spindle, round disk tool magazine 12 pieces and HQD 9 holes vertical drilling unite (4+5) |
Guide rail | Italy PEK square guide rail |
Table | Vacuum adsorption table / Positioning cylinder / Auxiliary feeding |
Vacuum pump | Air cooling 7.5kw |
Motor | Japan yaskawa servo 850W motor and driver and reducer |
Inverter | Taiwan Delta 11kw |
Control system | Syntec control system 6MB with independent control cabinet |
Lubrication system | Automatic types |
We offer customized services according to your requests such as the working area and specifications.
